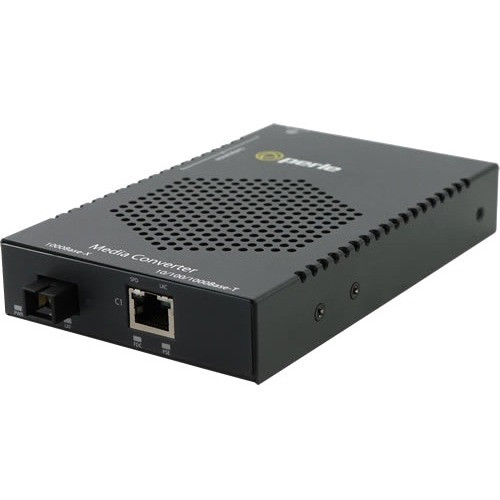

Perle 05079564 S-1110HP-SC40U Media Converter - 1x RJ-45 to 1x SC Simplex Single-mode Fiber - 40 km - Hi-PoE PSE up to 100W
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The converter operates with 1310 nm and 1490 nm wavelengths on single-mode fiber, supporting bidirectional communication over a single fiber strand via its simplex SC port. It handles full Gigabit Ethernet throughput across both media types, with auto-negotiation on the RJ-45 port for seamless integration into existing network infrastructures.
Advanced chipset functionality includes Smart Link Pass-Through for maintaining link status during fiber faults, PD Reset for remote power cycling of connected PoE devices, and loopback testing for diagnostics. The device is environmentally compliant with WEEE, REACH, and RoHS standards and is manufactured in Canada.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), Number of Network (RJ-45) Ports, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This media converter stands out with its integrated high-power PoE supply and robust fiber extension capabilities. It eliminates the need for separate PoE injectors while providing long-distance fiber connectivity, simplifying deployments and reducing points of failure.
Extended Reach with Reliability
Supports distances up to 40 km on single-mode fiber, ideal for connecting remote buildings, campuses, or industrial sites without signal degradation.
- 40 km maximum distance
- Single-mode fiber support
- Fiber fault alert system
Advanced PoE Management
Delivers up to 100W of PoE power and includes PD Reset for remote device management, compatible with existing PoE and PoE+ equipment.
- IEEE 802.3bt Hi-PoE PSE
- Backward compatible with 802.3af/at
- PD Reset functionality
Flexible Deployment Options
Rack, rail, wall, or standalone mounting adapts to various installation environments, from data centers to field enclosures.
- Multiple form factors
- Compact footprint
- Industrial-grade build
Deployment / Use Cases
The S-1110HP-SC40U is engineered for scenarios requiring both fiber distance extension and power delivery over Ethernet. It is commonly deployed in outdoor wireless networks, industrial automation, security camera systems, and building-to-building links where copper limitations are a concern.
In campus environments, it connects remote access points or IP cameras over long fiber runs while powering them directly. For industrial settings, its rugged design and fiber redundancy features ensure continuous operation in harsh conditions, supporting critical infrastructure like manufacturing controls or transportation systems.
Outdoor Wireless & Security
Extends network and power to remote wireless access points, IP cameras, or sensors over single-mode fiber, overcoming distance and interference limits of copper.
Industrial & Campus Networking
Connects separate buildings or industrial zones with high-bandwidth fiber, providing reliable data and PoE for equipment like VoIP phones, access controls, or IoT devices.
Physical Profile
The converter features a compact, low-profile design measuring 1.02 inches in height, 5.91 inches in width, and 3.74 inches in depth. Its lightweight construction at 14.11 ounces allows for easy installation in tight spaces, with versatile mounting options including rack ears, DIN rail clips, or wall-mount screws. The sturdy casing supports reliable operation in varied environmental conditions, from controlled data centers to industrial floors.
- Width
- 5.91" (150 mm)
- Depth
- 3.74" (95 mm)
- Height
- 1.02" (26 mm)
- Weight
- 14.11 oz (400 g)
- Length
- 1310 nm,1490 nm
Highlights
- Converts 10/100/1000Base-T Ethernet to 100/1000Base-X single-mode fiber
- Supports distances up to 40 km (24.85 miles) over fiber
- Provides IEEE 802.3bt Hi-PoE PSE with up to 100W power output
- Backward compatible with IEEE 802.3af PoE and 802.3at PoE+ devices
- Features advanced management: PD Reset, fiber redundancy, fault alerts
- Includes auto-MDIX and loopback for easy deployment and diagnostics
- Rack, rail, wall, or standalone mounting flexibility
- Lifetime warranty and environmentally compliant (WEEE, REACH, RoHS)
- Manufactured in Canada for quality assurance
- Compact design: 1.02" H x 5.91" W x 3.74" D (26 x 150 x 95 mm)
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05079564 |
| Brand Name | Perle |
| Product Series | S-1110HP |
| Product Model | S-1110HP-SC40U |
| Product Name | S-1110HP-SC40U Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| SC Port Type | Simplex |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm,1490 nm |
| Maximum Distance Supported | 40 km (24.85 Mile) |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-BX,10/100/1000Base-T |
| Physical Characteristics | |
| Form Factor | Rack-mountable,Rail-mountable,Wall Mountable,Standalone |
| Height | 1.02" (26 mm) |
| Width | 5.91" (150 mm) |
| Depth | 3.74" (95 mm) |
| Weight (Approximate) | 14.11 oz (400 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What does this media converter do?
It converts standard 10/100/1000Base-T Ethernet over twisted-pair copper to 100/1000Base-X signals over single-mode fiber optic cable. This allows you to extend network connections up to 40 kilometers while maintaining Gigabit speeds, bridging copper and fiber segments seamlessly.
What type of fiber and connectors does it use?
It uses single-mode fiber with simplex SC connectors. Single-mode fiber is ideal for long-distance transmissions, and the simplex SC port supports bidirectional communication over a single fiber strand, simplifying cable management and reducing fiber count.
How much PoE power can it supply?
It supplies IEEE 802.3bt Hi-PoE PSE with up to 100 watts of power. This high-power output supports demanding devices like PTZ cameras, wireless access points, or industrial equipment, and it remains compatible with older IEEE 802.3af PoE and 802.3at PoE+ devices.
What is the maximum distance supported?
The maximum supported distance is 40 kilometers (approximately 24.85 miles) over single-mode fiber. This extended reach makes it suitable for connecting remote locations, such as between buildings on a campus or across industrial sites, without signal loss.
Can it be mounted in a rack?
Yes, it is rack-mountable using included ears, and it also supports rail-mountable, wall-mountable, or standalone placements. This flexibility allows installation in data centers, network closets, or field enclosures based on your deployment needs.
What advanced features does it include?
Advanced features include PD Reset for remote power cycling of connected devices, fiber redundancy for backup links, Smart Link Pass-Through to maintain connectivity during faults, Fiber Fault Alert for monitoring, and auto-MDIX for automatic cable correction. These enhance reliability and simplify management in complex networks.
