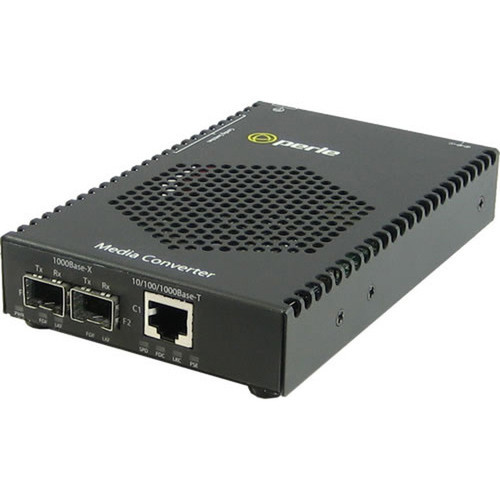

Perle 05080014 S-1110P-DSFP Media Converter - 1x PoE RJ-45 Port - 2x SFP Slots - 10/100/1000Base-T & 1000Base-SX - Rail/Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates with 10/100/1000Base-T auto-negotiation on the copper side and 1000Base-SX on the fiber side, ensuring seamless integration into existing Gigabit Ethernet networks. The PoE port delivers power to connected devices such as IP cameras, wireless access points, or VoIP phones, simplifying cable management and reducing installation costs.
The dual SFP slots accept industry-standard small form-factor pluggable modules, allowing support for various fiber types and distances. This flexibility lets network administrators choose multimode or singlemode SFP transceivers based on specific distance and budget requirements.
Key Product Advantages
The S-1110P-DSFP combines media conversion with PoE capability in a single, compact device, reducing the need for separate power injectors and converters. This integration streamlines network design and lowers total cost of ownership for edge deployments.
Flexible Fiber Options
Two SFP slots support a wide range of fiber optic modules, enabling customization for different fiber types, connector styles, and transmission distances without replacing the entire unit.
Versatile Mounting
Rail, rack, and wall mounting options provide installation flexibility in server rooms, network closets, or industrial settings, ensuring secure placement in various environments.
Reliable Performance
Built with industrial-grade components and backed by a lifetime warranty, this converter offers dependable operation for critical network links requiring continuous uptime.
Deployment / Use Cases
This media converter is ideal for extending network segments beyond the 100-meter limit of copper Ethernet by converting to fiber optic cable. Common applications include connecting buildings across a campus, linking floors in multi-story facilities, or integrating industrial equipment in manufacturing plants.
The integrated PoE port makes it particularly useful for powering remote devices like surveillance cameras or wireless access points over fiber backbones. Network managers deploy it in data centers to connect copper-based servers to fiber optic backbone switches, or in retail environments to extend networks to PoE-enabled point-of-sale terminals.
Campus Network Extension
Connect buildings separated by long distances using fiber optic cable while delivering PoE to edge devices, eliminating the need for separate power sources at remote locations.
Industrial Automation
Integrate machinery and sensors in harsh environments where fiber optic immunity to electromagnetic interference ensures reliable data transmission for process control systems.
Physical Profile
The converter features a slim, low-profile design measuring 1" high, 5.90" wide, and 3.70" deep, optimized for high-density installations in rack enclosures or on DIN rails. Its lightweight construction at 453.6 grams facilitates easy handling during deployment, while the sturdy chassis ensures durability in operational environments.
- Width
- 5.90" (149.86 mm)
- Depth
- 3.70" (93.98 mm)
- Height
- 1" (25.40 mm)
- Weight
- 453.6 g
What's in the Box
The package includes all necessary components for immediate deployment.
Highlights
- Converts 10/100/1000Base-T copper to 1000Base-SX fiber optic connections
- Includes one PoE RJ-45 port for powering connected devices
- Features two SFP slots for flexible fiber module selection
- Supports Gigabit Ethernet speeds up to 1000 Mbps
- Rail, rack, and wall mountable for versatile installation
- Compact design with dimensions of 1" H x 5.90" W x 3.70" D
- Backed by a lifetime warranty for long-term reliability
- Environmentally friendly construction
- Manufactured in Canada
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05080014 |
| Brand Name | Perle |
| Product Model | S-1110P-DSFP |
| Product Name | S-1110P-DSFP Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Number of PoE (RJ-45) Ports | 1 |
| I/O Expansions | |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Network Technology | 10/100/1000Base-T,1000Base-SX |
| Physical Characteristics | |
| Form Factor | Rail-mountable,Rack-mountable,Wall Mountable |
| Height | 1" (25.40 mm) |
| Width | 5.90" (149.86 mm) |
| Depth | 3.70" (93.98 mm) |
| Weight (Approximate) | 453.6 g |
| Miscellaneous | |
| Package Contents | S-1110P-DSFP Media Converter AC Adapter |
| Environmentally Friendly | Yes |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What types of fiber optic connections does this media converter support?
The Perle S-1110P-DSFP supports 1000Base-SX fiber optic connections through its two SFP slots. These slots accept industry-standard SFP transceiver modules, allowing you to use multimode or singlemode fiber with various connector types like LC or SC. The specific fiber type and distance depend on the SFP module you install, providing flexibility to match your network's fiber infrastructure requirements.
Can the PoE port power devices over the converted fiber link?
Yes, the integrated PoE RJ-45 port delivers power to connected devices such as IP cameras, wireless access points, or VoIP phones. This allows you to power remote devices over the copper segment before conversion to fiber, eliminating the need for separate power injectors at the fiber endpoint. The converter maintains both data and power transmission across the network segment where it's deployed.
What are the mounting options for this media converter?
This converter offers three mounting options: rail-mountable for DIN rail installations in industrial panels, rack-mountable for standard 19-inch server racks using optional brackets, and wall-mountable for direct surface attachment. The compact form factor and lightweight design make it suitable for high-density deployments in data centers, network closets, or equipment rooms where space is limited.
What is included in the package with the media converter?
The package includes the S-1110P-DSFP media converter unit and an AC adapter for power supply. These components provide everything needed for basic installation and operation. You may need to purchase SFP transceiver modules separately based on your fiber type and distance requirements, as well as appropriate mounting hardware if not using the built-in rail channels.
