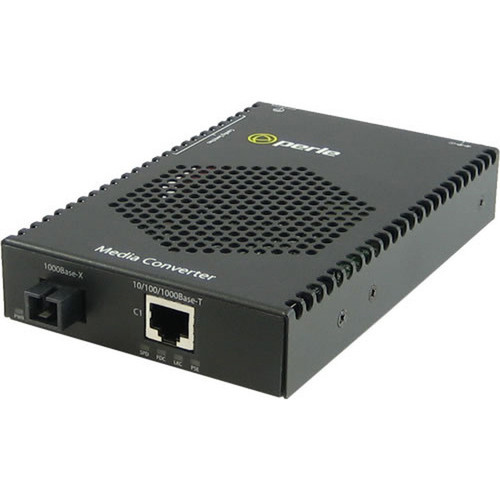

Perle 05080194 S-1110P-S1SC40D Media Converter - 1x PoE RJ-45 to 1x SC Fiber - 40 km - 1000Base-BX-D - Wall/Rack/Rail Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates on 1000Base-BX-D and 10/100/1000Base-T standards, ensuring compatibility with modern Gigabit Ethernet equipment. The SC fiber port uses single-mode technology for long-distance transmission, while the RJ-45 port auto-negotiates speed and duplex settings with connected copper devices.
Built with industrial-grade components, it supports a wide input voltage range from 100 to 240V AC via the included regulated 48V DC adapter. The converter features robust signal integrity and low latency, making it suitable for real-time applications like video streaming or data backhaul.
Key Product Advantages
The S-1110P-S1SC40D extends network reach beyond copper limitations while preserving PoE functionality, reducing infrastructure costs by eliminating the need for separate power supplies at remote locations. Its versatile mounting options allow installation in tight spaces, server racks, or industrial control panels.
Extended Distance with PoE
Delivers both data and power over fiber up to 40 km, ideal for outdoor or distributed deployments.
- Eliminates remote power units
- Supports PoE standards
Flexible Mounting
Rail, rack, and wall mounting capabilities ensure easy integration into diverse environments.
- Saves space
- Adapts to existing infrastructure
Deployment / Use Cases
This media converter is commonly deployed in security and surveillance systems to connect PoE cameras over long distances, leveraging fiber's immunity to electromagnetic interference. It also serves in industrial networks where machinery or sensors require both data connectivity and power in harsh environments.
In campus or enterprise settings, it extends network segments between buildings while maintaining Gigabit throughput. The converter supports VoIP deployments by linking PoE phones across fiber backbones, ensuring clear voice quality and reliable power delivery.
Security Surveillance
Connect remote IP cameras over fiber with uninterrupted PoE, enhancing coverage without additional power infrastructure.
Industrial Automation
Integrate PoE sensors and devices in manufacturing plants, using fiber for noise-free data transmission over extended ranges.
Physical Profile
With a compact footprint of 3.70" wide by 5.90" deep and a low profile of 1" high, this media converter fits easily into confined spaces. The sturdy metal enclosure provides durability for industrial or outdoor use, and the included power strain relief strap secures cabling to prevent disconnection.
- Width
- 3.70" (93.98 mm)
- Depth
- 5.90" (149.86 mm)
- Height
- 1" (25.40 mm)
- Weight
- 450 g
What's in the Box
The package includes all necessary components for immediate deployment.
Highlights
- Converts PoE Ethernet to fiber with 1x RJ-45 and 1x SC port
- Supports distances up to 40 kilometers over single-mode fiber
- Operates on 1000Base-BX-D and 10/100/1000Base-T standards
- Delivers up to 1000 Mbps data transfer rate
- Rail, rack, and wall mounting options for flexible installation
- Includes regulated 48V DC adapter with wide input voltage range
- Compact design with dimensions of 3.70" x 5.90" x 1"
- Lifetime limited warranty for long-term reliability
- Environmentally friendly construction
- Manufactured in Canada
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05080194 |
| Brand Name | Perle |
| Product Model | S-1110P-S1SC40D |
| Product Name | S-1110P-S1SC40D Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Number of PoE (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Maximum Distance Supported | 40 km |
| Network & Communication | |
| Network Technology | 1000Base-BX-D,10/100/1000Base-T |
| Physical Characteristics | |
| Form Factor | Rail-mountable,Rack-mountable,Wall Mountable |
| Height | 1" (25.40 mm) |
| Width | 3.70" (93.98 mm) |
| Depth | 5.90" (149.86 mm) |
| Weight (Approximate) | 450 g |
| Miscellaneous | |
| Package Contents | S-1110P-S1SC40D Media Converter 100-240V AC, Regulated 48V DC Adapter Power Strain Relief Strap |
| Environmentally Friendly | Yes |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What is the maximum distance this media converter supports?
The Perle S-1110P-S1SC40D supports a maximum distance of 40 kilometers over single-mode fiber. This extended range makes it suitable for connecting network segments across large campuses, industrial sites, or between buildings without signal degradation.
Does this converter support Power over Ethernet (PoE)?
Yes, it includes one PoE-capable RJ-45 port that delivers both data and power over the copper connection. The PoE functionality is maintained when converting to fiber, allowing you to power remote devices like IP cameras or access points without separate power supplies at the endpoint.
What types of fiber connectors does it use?
This media converter uses a single SC connector for the fiber optic interface. The SC connector is a common standard in networking for its reliable push-pull mechanism, ensuring secure connections in various deployment environments.
Can I mount this converter in a server rack?
Yes, the converter is designed for rail-mountable, rack-mountable, and wall-mountable installation. Its compact size and versatile mounting options allow integration into server racks, control panels, or direct wall mounting, adapting to your specific space and infrastructure needs.
