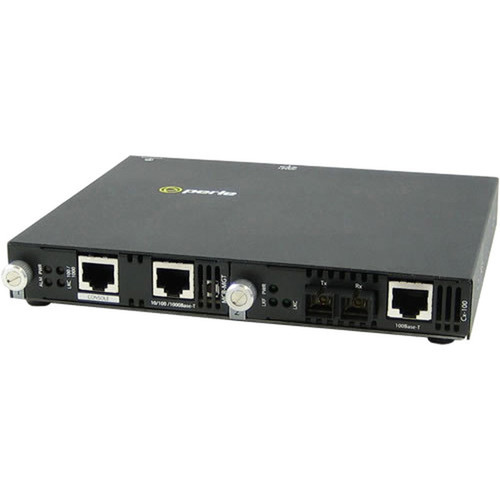

Perle 05070334 SMI-100-S2SC20 Fast Ethernet Media Converter - 1 x RJ-45 - 1 x SC Duplex - 10/100Base-TX/LX - 20 km - External
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates at Fast Ethernet speeds, supporting both 10 Mbps and 100 Mbps data rates on the copper side and 100 Mbps on the fiber side. It uses 100Base-LX technology over single-mode fiber with a core/cladding specification of 9/125 µm, ensuring reliable long-distance transmission up to 20 km.
The converter features duplex SC connectors for fiber termination, providing a secure and standardized interface for fiber optic cabling. The external form factor measures 6.89 inches in width, 5.71 inches in depth, and 0.91 inches in height, with an approximate weight of 722 grams, offering a portable and rack-mountable solution for diverse network environments.
Key Product Advantages
The Perle SMI-100-S2SC20 delivers essential benefits for network expansion and fiber integration, combining performance with ease of use. Its external installation eliminates the need for internal hardware slots, reducing deployment complexity and allowing flexible placement in server rooms, closets, or edge locations.
Long-Distance Connectivity
Supports fiber runs up to 20 km, enabling network extension across large facilities or between separate buildings without signal loss.
- Uses 100Base-LX technology
- 9/125 µm single-mode fiber compatibility
Simplified Management
Includes a management port for monitoring and configuration, providing visibility into network performance and converter status.
- Dedicated port for oversight
- Enhances network reliability
Deployment / Use Cases
This media converter is designed for scenarios where extending Ethernet networks over fiber is necessary, such as connecting remote offices, linking data centers, or integrating fiber backbones into existing copper infrastructure. It is suitable for enterprise, education, and industrial settings that require reliable long-distance connectivity.
Common applications include extending network segments across campuses, connecting buildings in a corporate park, or integrating fiber optic links into surveillance or access control systems. The external form factor allows for easy deployment in rack-mounted setups or standalone installations, accommodating various environmental conditions.
Campus Network Extension
Ideal for linking separate buildings or facilities over single-mode fiber, maintaining high-speed connectivity across distances up to 20 km.
Fiber Backbone Integration
Enables the integration of fiber optic backbones into copper-based networks, supporting modernization efforts without replacing entire infrastructures.
Physical Profile
The converter features a compact external enclosure with dimensions of 6.89 inches wide, 5.71 inches deep, and 0.91 inches high, making it suitable for desktop or rack mounting. Its lightweight design at approximately 722 grams ensures easy handling and installation, while the external power method simplifies setup without internal power supply requirements.
- Width
- 6.89" (175 mm)
- Depth
- 5.71" (145 mm)
- Height
- 0.91" (23 mm)
- Weight
- 722 g
Highlights
- Converts 10/100Base-TX copper to 100Base-LX fiber for network extension.
- Supports distances up to 20 km over single-mode fiber with 9/125 µm core/cladding.
- Features one RJ-45 port and one SC duplex port for flexible connectivity.
- Includes a management port for monitoring and configuration oversight.
- External form factor enables easy installation without internal chassis slots.
- Operates at Fast Ethernet speeds up to 100 Mbps data transfer rates.
- Manufactured in Canada with environmentally friendly materials.
- Backed by a lifetime limited warranty for long-term reliability.
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05070334 |
| Brand Name | Perle |
| Product Model | SMI-100-S2SC20 |
| Product Name | SMI-100-S2SC20 Fast Ethernet Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Management Port | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| SC Port Type | Duplex |
| Media & Performance | |
| Maximum Distance Supported | 20 km |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
| Network & Communication | |
| Network Technology | 10/100Base-TX,100Base-LX |
| Physical Characteristics | |
| Form Factor | External |
| Height | 0.91" (23 mm) |
| Width | 6.89" (175 mm) |
| Depth | 5.71" (145 mm) |
| Weight (Approximate) | 722 g |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What does this media converter convert between?
This converter transforms 10/100Base-TX Ethernet signals from copper twisted-pair cabling (via the RJ-45 port) to 100Base-LX signals for single-mode fiber optic cabling (via the SC duplex port). It enables seamless integration of fiber segments into existing copper networks, supporting data rates up to 100 Mbps.
What is the maximum distance supported by this converter?
The converter supports fiber optic distances up to 20 kilometers when using single-mode fiber with a 9/125 µm core/cladding specification. This makes it suitable for extending network connections across large campuses, between buildings, or in other long-distance applications without signal degradation.
Does this converter include management capabilities?
Yes, it features a dedicated management port that allows for monitoring and configuration of the device. This provides network administrators with oversight into performance and status, enhancing reliability and ease of maintenance in deployed environments.
What type of fiber connector does this converter use?
It uses SC duplex connectors for fiber optic termination. SC connectors are standard in fiber networking, offering a secure and reliable interface for single-mode cabling, which is compatible with the 9/125 µm specification required for the supported 20 km distance.
