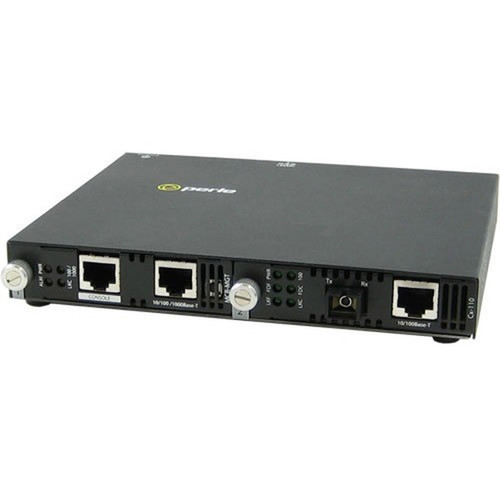

Perle 05071224 SMI-110-M1SC2D 10/100 Fast Ethernet IP Managed Media & Rate Converter - 1x RJ-45 to 1x SC Fiber - 2 km - Rack/Wall/Desktop Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates with Fast Ethernet technology, specifically supporting 10/100Base-TX over copper and 100Base-BX over fiber. It utilizes multi-mode fiber optic cable with wavelengths of 1310 nm and 1550 nm, ensuring efficient signal integrity and minimal loss across the supported 2 km distance.
The unit features one RJ-45 port for copper connectivity and one SC port for fiber optic linkage, totaling two ports. It includes a dedicated management port for network oversight, allowing for configuration and status monitoring. The converter is environmentally friendly and manufactured in Canada, backed by a lifetime limited warranty.
Key Product Advantages
The SMI-110-M1SC2D excels in extending network reach and enhancing signal reliability through fiber optic conversion. Its IP management capability provides administrators with real-time control and diagnostic tools, improving network uptime and troubleshooting efficiency.
Extended Distance Coverage
Supports optical fiber cable for durable performance with minimal signal loss, enabling fast data transfers over distances up to 2 km, ideal for connecting remote network segments.
- 2 km maximum distance
- Multi-mode fiber support
- 1310 nm and 1550 nm wavelengths
Flexible Installation Options
Designed for rack, rail, wall, or desktop mounting, offering convenient installation in various settings such as server rooms, offices, or industrial environments.
- Rack-mountable design
- Wall and desktop options
- Compact footprint
Network Expansion Capability
Allows attachment of multiple devices or expansion of existing networks by converting between copper and fiber media, facilitating seamless integration of fiber optic infrastructure.
- RJ-45 to SC conversion
- Supports up to 100 Mbps
- IP management for control
Deployment / Use Cases
This media converter is ideal for scenarios requiring the extension of Ethernet networks beyond the limitations of copper cabling. It effectively bridges gaps between copper-based devices and fiber optic backbones, ensuring stable connectivity in extended-range applications.
Common use cases include connecting remote office buildings to a central network, integrating fiber optic segments into existing copper infrastructures, and deploying in environments where electromagnetic interference is a concern. The IP management feature makes it suitable for managed network environments where monitoring and configuration are essential.
Campus Network Extension
Use to link separate buildings within a campus, leveraging fiber optic cable to maintain high-speed data transfer over 2 km distances without signal degradation.
Data Center Connectivity
Deploy in data centers to connect copper-based servers or switches to fiber optic backbone networks, enhancing scalability and future-proofing infrastructure.
Physical Profile
The converter has a compact form factor measuring 0.91" in height, 6.89" in width, and 5.71" in depth, with an approximate weight of 1.59 lb. Its small footprint and lightweight design facilitate easy installation in space-constrained areas. The unit supports multiple mounting styles, including rack, rail, wall, and desktop, providing flexibility for various installation requirements. The sturdy construction ensures durability in both commercial and industrial settings.
- Width
- 6.89" (175 mm)
- Depth
- 5.71" (145 mm)
- Height
- 0.91" (23 mm)
- Weight
- 1.59 lb (722 g)
- Length
- 1310 nm,1550 nm
What's in the Box
The package includes all necessary components for immediate deployment of the media converter.
Highlights
- Converts RJ-45 copper to SC fiber optic for extended network reach.
- Supports multi-mode fiber with wavelengths of 1310 nm and 1550 nm.
- Maximum distance of 2 km (1.24 miles) for reliable long-range connections.
- Fast Ethernet technology with data transfer rates up to 100 Mbps.
- IP managed for network control and monitoring via dedicated management port.
- Rack, rail, wall, and desktop mounting options for flexible installation.
- Compact dimensions: 0.91" H x 6.89" W x 5.71" D, weight 1.59 lb.
- Environmentally friendly and manufactured in Canada.
- Includes universal AC/DC adapter for easy power connectivity.
- Backed by a lifetime limited warranty for long-term reliability.
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05071224 |
| Brand Name | Perle |
| Product Model | SMI-110-M1SC2D |
| Product Name | SMI-110-M1SC2D - 10/100 Fast Ethernet IP Managed Media and Rate Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| DVI | No |
| USB | No |
| Management Port | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 1310 nm,1550 nm |
| Maximum Distance Supported | 2 km (1.24 Mile) |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-TX,100Base-BX |
| Physical Characteristics | |
| Form Factor | Rack-mountable,Rail-mountable,Wall Mountable,Desktop |
| Height | 0.91" (23 mm) |
| Width | 6.89" (175 mm) |
| Depth | 5.71" (145 mm) |
| Weight (Approximate) | 1.59 lb (722 g) |
| Miscellaneous | |
| Package Contents | SMI-110-M1SC2D - 10/100 Fast Ethernet IP Managed Media and Rate Converter Universal AC/DC Adapter |
| Environmentally Friendly | Yes |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What types of media does this converter support?
The Perle SMI-110-M1SC2D supports both twisted pair copper and optical fiber media. It converts between RJ-45 copper connections and SC multi-mode fiber optic cables, enabling seamless integration of fiber into existing copper networks.
What is the maximum distance supported by this media converter?
This converter supports a maximum distance of 2 kilometers (1.24 miles) over multi-mode fiber optic cable. This extended range makes it suitable for connecting network segments across buildings or large campuses without signal loss.
What Ethernet technologies are compatible with this device?
The device is compatible with Fast Ethernet technologies, specifically 10/100Base-TX over copper and 100Base-BX over fiber. It supports data transfer rates up to 100 Mbps, ensuring efficient performance for standard network applications.
How can this converter be installed?
The converter offers multiple installation options: it is rack-mountable, rail-mountable, wall mountable, and can be placed on a desktop. Its compact size and versatile mounting hardware allow for flexible deployment in data centers, offices, or industrial environments.
Does this converter include management capabilities?
Yes, it includes IP management capabilities through a dedicated management port. This allows network administrators to monitor, configure, and control the converter remotely, enhancing network oversight and troubleshooting efficiency.
What is included in the package with this media converter?
The package includes the SMI-110-M1SC2D 10/100 Fast Ethernet IP Managed Media and Rate Converter unit and a universal AC/DC adapter. These components provide everything needed for immediate setup and operation in your network environment.
