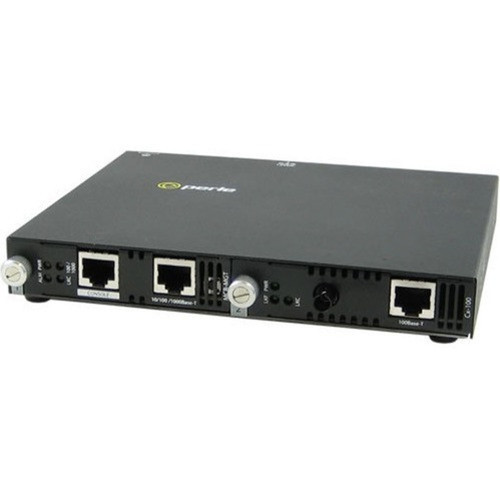

Perle 05071344 SMI-110-M1ST2D Transceiver/Media Converter - 2x RJ-45 + 1x ST Ports - Multi-mode Fiber - 2 km Distance - 1310/1550 nm
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates at Fast Ethernet speeds, delivering up to 100 Mbps data transfer rates across both media types. The fiber interface supports multi-mode operation with dual wavelengths of 1310 nm and 1550 nm, accommodating various fiber optic cable specifications including 62.5/125 µm, 50/125 µm, 85/125 µm, and 100/140 µm core/cladding configurations.
The converter maintains signal quality across distances up to 2 kilometers (1.24 miles) on fiber, significantly extending network reach beyond copper limitations. The device includes environmental considerations in its design and carries a lifetime limited warranty for long-term deployment confidence.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), DVI, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This converter delivers practical benefits for network expansion projects where distance limitations of copper cabling require fiber optic solutions. The dual-wavelength support provides compatibility with existing fiber infrastructure, while the flexible mounting options enable installation in space-constrained environments.
Distance Extension
Extend network segments up to 2 kilometers using fiber optic cabling, overcoming the distance limitations of standard twisted pair Ethernet.
- 2 km maximum distance
- Fiber optic signal integrity
- Beyond copper limitations
Installation Flexibility
Multiple mounting options including desktop, wall, rail, and rack configurations allow deployment in various environments from server rooms to industrial settings.
- Four mounting options
- Compact footprint
- Professional installation
Media Compatibility
Support for multiple fiber core specifications ensures compatibility with existing fiber infrastructure and simplifies integration into diverse network environments.
- Four core specifications
- Multi-mode operation
- Backward compatibility
Deployment / Use Cases
This media converter serves as an ideal solution for connecting copper-based network equipment to fiber optic backbone infrastructure. Common applications include extending network reach between buildings, connecting remote workstations to central servers, and integrating legacy copper devices into modern fiber networks.
The converter proves particularly valuable in environments where electromagnetic interference affects copper cabling performance, as fiber optic transmission remains immune to such interference. Educational campuses, healthcare facilities, manufacturing plants, and office complexes benefit from the distance extension and signal integrity this converter provides.
Building-to-Building Connectivity
Connect network segments between separate buildings using fiber optic cabling for reliable, high-speed data transmission across campus environments.
EMI-Prone Environments
Replace copper runs in areas with high electromagnetic interference using fiber optic transmission that remains unaffected by electrical noise.
Physical Profile
The compact design measures 6.89" (175 mm) wide by 5.71" (145 mm) deep by 0.91" (23 mm) high, with a weight of approximately 1.59 lb (722 g). This slim profile supports multiple installation methods including desktop placement, wall mounting, rail attachment, and standard rack mounting. The converter's dimensions optimize space utilization in crowded network cabinets while maintaining adequate ventilation for reliable operation.
- Width
- 6.89" (175 mm)
- Depth
- 5.71" (145 mm)
- Height
- 0.91" (23 mm)
- Weight
- 1.59 lb (722 g)
- Length
- 1310 nm,1550 nm
What's in the Box
The package includes all necessary components for immediate deployment of the media converter in your network environment.
Highlights
- Converts between 2 RJ-45 copper ports and 1 ST multi-mode fiber port
- Supports Fast Ethernet with 100 Mbps data transfer rates
- Extends network distance up to 2 kilometers using fiber optic cabling
- Operates at dual wavelengths of 1310 nm and 1550 nm
- Compatible with multiple fiber core specifications (62.5/125 µm to 100/140 µm)
- Includes management port for network monitoring and control
- Four mounting options: desktop, wall, rail, and rack configurations
- Powered by included 100-240V AC regulated DC adapter
- Manufactured in Canada with environmentally friendly design
- Backed by lifetime limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05071344 |
| Brand Name | Perle |
| Product Model | SMI-110-M1ST2D |
| Product Name | SMI-110-M1ST2D Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 3 |
| Network (RJ-45) | Yes |
| DVI | No |
| USB | No |
| Management Port | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of ST Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 1310 nm,1550 nm |
| Maximum Distance Supported | 2 km (1.24 Mile) |
| Fiber Optic Cable Core/Cladding Specification | 62.5/125 µm,50/125 µm,85/125 µm,100/140 µm |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-T,100Base-BX-D |
| Power Description | |
| Power Source | AC Adapter |
| Physical Characteristics | |
| Form Factor | Desktop,Wall Mountable,Rail-mountable,Rack-mountable |
| Height | 0.91" (23 mm) |
| Width | 6.89" (175 mm) |
| Depth | 5.71" (145 mm) |
| Weight (Approximate) | 1.59 lb (722 g) |
| Miscellaneous | |
| Package Contents | SMI-110-M1ST2D Transceiver/Media Converter 100-240v AC, Regulated DC Adapter |
| Environmentally Friendly | Yes |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What types of connections does this media converter support?
This converter supports two types of connections: two RJ-45 ports for standard twisted pair Ethernet cabling and one ST port for multi-mode fiber optic connections. The RJ-45 ports handle 10/100Base-T Ethernet, while the ST port supports 100Base-BX-D fiber optic transmission. This dual-media capability allows conversion between copper and fiber network segments.
What is the maximum distance this converter can extend my network?
The converter extends network connections up to 2 kilometers (approximately 1.24 miles) when using fiber optic cabling. This distance represents the maximum supported span for the fiber optic interface, significantly exceeding the limitations of standard copper Ethernet cabling. The actual achievable distance may vary based on fiber quality and environmental conditions.
What fiber specifications are compatible with this converter?
This converter supports multi-mode fiber optic cables with core/cladding specifications of 62.5/125 µm, 50/125 µm, 85/125 µm, and 100/140 µm. It operates at wavelengths of 1310 nm and 1550 nm, providing compatibility with common multi-mode fiber infrastructure. The device does not support single-mode fiber operation.
How can I mount this media converter in my network environment?
The converter offers four mounting options for installation flexibility: desktop placement, wall mounting, rail attachment, and standard rack mounting. The compact dimensions of 6.89" wide × 5.71" deep × 0.91" high allow installation in space-constrained environments. All necessary hardware for these mounting methods is typically included or available separately for professional installation.
What power requirements does this converter have?
The converter is powered by an included 100-240V AC regulated DC adapter that provides appropriate voltage conversion for the device. This wide input voltage range allows operation in various geographical regions with different electrical standards. The AC adapter is included in the package contents for immediate deployment.
What is the warranty coverage for this media converter?
This Perle media converter comes with a lifetime limited warranty that covers manufacturing defects and component failures under normal use conditions. The warranty applies to the original purchaser and requires proper installation and operation according to manufacturer specifications. The converter is manufactured in Canada with environmentally friendly design considerations.
