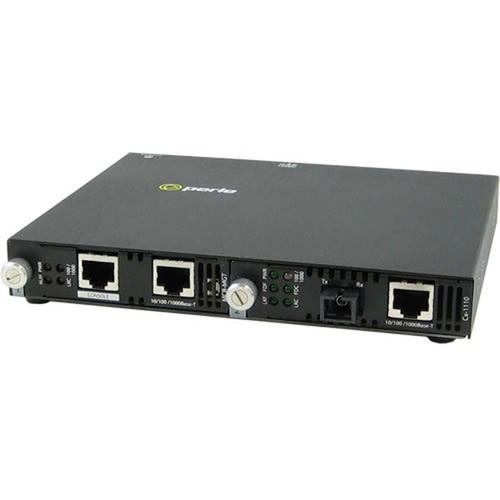

Perle 05071254 SMI-1110-M1SC05U Transceiver/Media Converter - 1 x RJ-45 & 1 x SC Ports - Gigabit Ethernet - 1310/1550 nm Multi-mode Fiber
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This converter operates with multi-mode fiber at wavelengths of 1310 nm and 1550 nm, supporting distances up to 0.55 km (0.34 miles). It includes a dedicated management port for monitoring and configuration, enhancing network control. The device is powered by a universal AC/DC adapter and is environmentally friendly, with a lifetime limited warranty and origin in Canada.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), DVI, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The SMI-1110-M1SC05U offers versatile deployment with support for rail, rack, wall, and desktop mounting, making it adaptable to various installation environments. Its compact design (0.91" height) saves space in dense network setups. The inclusion of a management port allows for remote monitoring and troubleshooting, improving network reliability and reducing maintenance overhead.
Flexible Mounting Options
Install this converter in racks, on walls, rails, or desktops to fit your specific network layout and space constraints.
Extended Network Reach
Extend your network up to 0.55 km using cost-effective multi-mode fiber, overcoming the distance limitations of copper cabling.
Deployment / Use Cases
This media converter is ideal for extending network segments beyond the 100-meter limit of standard copper Ethernet cables. It is commonly used in data centers, office buildings, and industrial settings where fiber optic cabling is required for long-distance or high-interference environments. The device facilitates the integration of fiber backbones with existing copper-based edge devices, such as switches, routers, and end-user equipment.
Data Center Integration
Connect copper switches to fiber optic backbone networks in data centers to leverage fiber's higher bandwidth and longer reach.
Building-to-Building Links
Establish reliable Gigabit connections between separate buildings using fiber optic cables, with this converter handling the media conversion at each endpoint.
Physical Profile
The converter has a slim profile with dimensions of 0.91" (23 mm) in height, 6.89" (175 mm) in width, and 5.71" (145 mm) in depth, weighing approximately 1.59 lb (722 g). Its lightweight and compact design, combined with multiple mounting options, allows for easy installation in tight spaces or standard rack enclosures.
- Width
- 6.89" (175 mm)
- Depth
- 5.71" (145 mm)
- Height
- 0.91" (23 mm)
- Weight
- 1.59 lb (722 g)
- Length
- 1310 nm,1550 nm
What's in the Box
The package includes the SMI-1110-M1SC05U transceiver/media converter and a universal AC/DC adapter, providing everything needed for immediate deployment.
Highlights
- Converts Gigabit Ethernet between RJ-45 twisted pair and SC multi-mode fiber ports.
- Supports 10/100/1000Base-T on copper and 1000Base-BX on fiber for full Gigabit throughput.
- Operates at 1310 nm and 1550 nm wavelengths with multi-mode fiber up to 0.55 km.
- Includes a management port for network monitoring and configuration.
- Versatile mounting: rail, rack, wall, or desktop installation options.
- Compact design with dimensions of 0.91" x 6.89" x 5.71" (23 mm x 175 mm x 145 mm).
- Powered by a universal AC/DC adapter for broad compatibility.
- Environmentally friendly with a lifetime limited warranty and made in Canada.
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05071254 |
| Brand Name | Perle |
| Product Model | SMI-1110-M1SC05U |
| Product Name | SMI-1110-M1SC05U Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| DVI | No |
| USB | No |
| Management Port | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 1310 nm,1550 nm |
| Maximum Distance Supported | 0.55 km (0.34 Mile) |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-BX |
| Physical Characteristics | |
| Form Factor | Rail-mountable,Wall Mountable,Rack-mountable,Desktop |
| Height | 0.91" (23 mm) |
| Width | 6.89" (175 mm) |
| Depth | 5.71" (145 mm) |
| Weight (Approximate) | 1.59 lb (722 g) |
| Miscellaneous | |
| Package Contents | SMI-1110-M1SC05U Transceiver/Media Converter Universal AC/DC Adapter |
| Environmentally Friendly | Yes |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What types of network connections does this media converter support?
This converter supports Gigabit Ethernet connections, specifically 10/100/1000Base-T on the RJ-45 twisted pair port and 1000Base-BX on the SC fiber optic port. It converts signals between copper and multi-mode fiber, enabling seamless integration of fiber segments into copper-based networks.
What is the maximum distance supported by the fiber optic connection?
The fiber optic connection supports a maximum distance of 0.55 km (0.34 miles) when using multi-mode fiber at wavelengths of 1310 nm or 1550 nm. This extends network reach beyond the typical 100-meter limit of copper Ethernet cables.
What mounting options are available for this converter?
The converter offers versatile mounting options: it is rail-mountable, wall mountable, rack-mountable, and can be placed on a desktop. This flexibility allows for installation in various environments, from data center racks to office walls, adapting to your space and layout requirements.
Does this converter include a management port?
Yes, it includes a dedicated management port. This port enables network monitoring, configuration, and troubleshooting, providing enhanced control over the device's performance and integration within your network infrastructure.
What is included in the package with this media converter?
The package includes the SMI-1110-M1SC05U transceiver/media converter unit and a universal AC/DC adapter. These components provide everything necessary for immediate setup and operation, ensuring quick deployment in your network.
What warranty and environmental features does this product have?
This product comes with a lifetime limited warranty, offering long-term reliability and support. It is also environmentally friendly and manufactured in Canada, reflecting a commitment to sustainability and quality standards.
