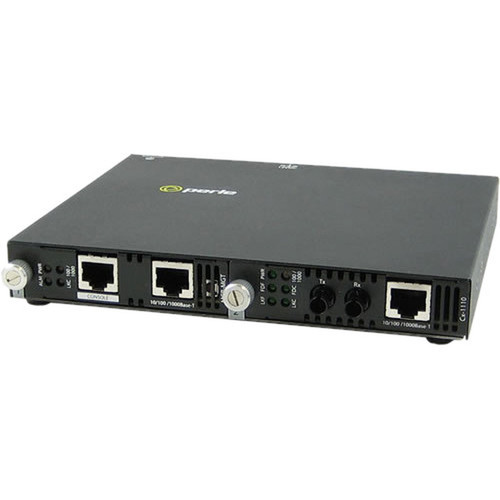

Perle 05070644 SMI-1110-S2ST10 Media Converter - 2 x RJ-45 - 1 x ST Port - Managed - 10 km - Wall Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter delivers robust performance through its dual RJ-45 ports and single ST fiber port, facilitating seamless integration of copper and fiber network segments. The management port enables remote configuration and status monitoring, which is essential for maintaining network uptime and troubleshooting connectivity issues in managed environments.
The converter supports 1000Base-T over twisted pair cabling and 1000Base-LX over single-mode fiber, achieving data transfer rates up to 1000 Mbps. Its 10 km maximum distance capability makes it suitable for extending network reach across buildings or campuses without signal degradation. The universal AC/DC adapter included ensures flexible power sourcing in various geographic locations.
Key Product Advantages
The SMI-1110-S2ST10 stands out with its combination of port flexibility, management features, and durable construction. Its ability to convert between copper and fiber media extends network infrastructure while maintaining high-speed performance over long distances.
Versatile Mounting Options
Designed for easy integration into diverse environments, this converter can be wall-mounted, rack-mounted, or rail-mounted, providing installation flexibility for IT closets, server rooms, and industrial settings.
- Wall mountable
- Rack mountable
- Rail mountable
Enhanced Network Management
The dedicated management port allows for remote monitoring and configuration, giving administrators greater control over network performance and simplifying maintenance tasks.
- Remote configuration
- Status monitoring
- Troubleshooting support
Deployment / Use Cases
This media converter is ideal for scenarios requiring the extension of Ethernet networks over fiber optic cabling. Common applications include connecting separate buildings within a campus, integrating fiber backbones into copper-based office networks, and upgrading legacy infrastructure to support higher bandwidth demands.
In data center environments, it can be used to link server racks over fiber for reduced electromagnetic interference and longer reach. For industrial networks, its robust design and mounting options make it suitable for harsh environments where reliable connectivity is critical. The converter also serves well in educational institutions, healthcare facilities, and corporate offices seeking to future-proof their network investments.
Physical Profile
The converter features a compact external chassis measuring 6.89 inches wide, 5.71 inches deep, and 0.91 inches high (175 mm x 145 mm x 23 mm), with a weight of approximately 722 grams. Its design supports multiple mounting methods, including wall, rack, and rail options, allowing for space-efficient installation in constrained environments. The sturdy construction ensures reliable operation in typical office and data center conditions.
- Width
- 6.89" (175 mm)
- Depth
- 5.71" (145 mm)
- Height
- 0.91" (23 mm)
- Weight
- 722 g
What's in the Box
The package includes all necessary components for immediate deployment.
Highlights
- Converts between two RJ-45 copper ports and one ST fiber port
- Supports distances up to 10 kilometers over fiber
- Managed device with dedicated management port for remote control
- Operates on 1000Base-T, 1000Base-LX, and 10/100/1000Base-T standards
- Versatile mounting: wall, rack, or rail options
- Compact dimensions: 6.89" x 5.71" x 0.91" (175 mm x 145 mm x 23 mm)
- Includes universal AC/DC adapter for flexible power
- Manufactured in Canada with environmentally friendly practices
- Lifetime limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05070644 |
| Brand Name | Perle |
| Product Model | SMI-1110-S2ST10 |
| Product Name | SMI-1110-S2ST10 Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Management Port | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of ST Ports | 1 |
| Media & Performance | |
| Maximum Distance Supported | 10 km |
| Network & Communication | |
| Network Technology | 1000Base-T,1000Base-LX,10/100/1000Base-T |
| Physical Characteristics | |
| Form Factor | External,Rail-mountable,Rack-mountable,Wall Mountable |
| Height | 0.91" (23 mm) |
| Width | 6.89" (175 mm) |
| Depth | 5.71" (145 mm) |
| Weight (Approximate) | 722 g |
| Miscellaneous | |
| Package Contents | SMI-1110-S2ST10 Media Converter Universal AC/DC Adapter |
| Environmentally Friendly | Yes |
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What types of network connections does this media converter support?
The Perle SMI-1110-S2ST10 supports connections through two RJ-45 ports for copper Ethernet (1000Base-T and 10/100/1000Base-T) and one ST port for fiber optic cabling (1000Base-LX). This allows it to bridge between copper and fiber segments, extending network reach up to 10 kilometers over fiber while maintaining Gigabit speeds.
How far can this converter transmit data over fiber?
This media converter supports a maximum distance of 10 kilometers over single-mode fiber using the 1000Base-LX standard. This makes it suitable for connecting buildings across a campus or extending network infrastructure over long distances without signal loss, providing reliable performance for enterprise and industrial applications.
What mounting options are available for this device?
The converter is designed for versatile installation with support for wall mounting, rack mounting, and rail mounting. Its compact external form factor and included mounting hardware allow it to be deployed in data centers, network closets, or industrial settings, offering flexibility to fit various space constraints and environmental requirements.
Does this media converter include management capabilities?
Yes, it features a dedicated management port that enables remote configuration, monitoring, and troubleshooting. This allows network administrators to manage the device's performance, adjust settings, and diagnose connectivity issues without physical access, enhancing operational efficiency in managed network environments.
