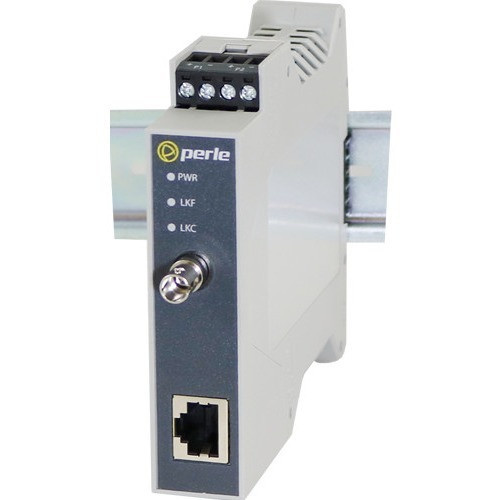

Perle 05091160 SR-100-ST20U Transceiver/Media Converter - 1 x RJ-45 to 1 x ST Simplex Single-mode Fiber - 20 km - 1310/1550 nm
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The SR-100-ST20U operates at Fast Ethernet speeds (100 Mbps) and supports network technologies including 100Base-TX for copper and 100Base-BX/BX-D for fiber. It uses a 9/125 µm core/cladding specification, which is standard for single-mode fiber, ensuring compatibility with common infrastructure.
Advanced features such as Link Pass-Through, Far-End Fault detection, and Auto-MDIX enhance reliability and simplify deployment by automatically adjusting for straight-through or crossover cable connections on the copper side.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), Number of Network (RJ-45) Ports, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This media converter extends network reach reliably while maintaining signal integrity across mixed media environments. Its compact, rail-mountable design allows for flexible installation in network closets, racks, or industrial settings.
Distance Extension
Supports fiber runs up to 20 km, overcoming copper distance limitations and enabling connectivity between buildings or across campuses.
- Eliminates EMI/RFI interference risks
- Uses standard 9/125 µm single-mode fiber
Operational Reliability
Built-in diagnostics like Far-End Fault detection help identify link issues quickly, while Auto-MDIX reduces cabling errors.
- Link Pass-Through maintains connectivity during power loss
- Triple power input options for redundancy
Deployment / Use Cases
The SR-100-ST20U is ideal for integrating fiber backbones into existing copper-based networks. It connects Ethernet switches, routers, or servers to fiber optic lines for extended reach or improved noise immunity.
Common applications include linking office buildings across a campus, extending networks in industrial environments with high electromagnetic interference, and connecting remote surveillance cameras or IoT devices over long distances. Its rail-mount capability suits structured cabling installations in data centers or telecom rooms.
Campus Network Extension
Connect separate buildings over single-mode fiber to maintain high-speed data transfer without signal degradation.
Industrial Networking
Deploy in manufacturing or utility settings where fiber's immunity to electrical noise ensures stable network performance.
Physical Profile
The converter has a compact footprint measuring 4.49 inches wide, 3.94 inches deep, and 0.89 inches high, with a weight of approximately 4.23 ounces. Its rail-mountable form factor allows for easy integration into standard DIN rails or equipment racks, saving space in crowded network environments. The design supports vertical or horizontal mounting, providing flexibility for various installation scenarios.
- Width
- 4.49" (114 mm)
- Depth
- 3.94" (100 mm)
- Height
- 0.89" (22.50 mm)
- Weight
- 4.23 oz (120 g)
- Length
- 1310 nm,1550 nm
Highlights
- Converts Fast Ethernet copper (100Base-TX) to single-mode fiber (100Base-BX/BX-D)
- Extends network distance up to 20 km (12.43 miles) over fiber
- Features 1 RJ-45 port and 1 ST simplex fiber port
- Supports 1310 nm and 1550 nm wavelengths for flexible fiber compatibility
- Rail-mountable form factor for easy installation in racks or enclosures
- Includes advanced features: Link Pass-Through, Far-End Fault, Auto-MDIX
- Powered by AC adapter with triple power input options for redundancy
- Compliant with RoHS, WEEE, and REACH environmental standards
- Backed by a lifetime limited warranty
- Compact and lightweight design (4.23 oz) for space-efficient deployment
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05091160 |
| Brand Name | Perle |
| Product Series | SR-100 |
| Product Model | SR-100-ST20U |
| Product Name | SR-100-ST20U Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of ST Ports | 1 |
| ST Port Type | Simplex |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm,1550 nm |
| Maximum Distance Supported | 20 km (12.43 Mile) |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 100Base-TX,100Base-BX,100Base-BX-D |
| Power Description | |
| Power Source | AC Adapter |
| Physical Characteristics | |
| Form Factor | Rail-mountable |
| Height | 0.89" (22.50 mm) |
| Width | 4.49" (114 mm) |
| Depth | 3.94" (100 mm) |
| Weight (Approximate) | 4.23 oz (120 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What does this media converter do?
The Perle SR-100-ST20U converts Fast Ethernet signals from copper twisted-pair cabling (100Base-TX) to single-mode fiber optic signals (100Base-BX or 100Base-BX-D). This allows you to extend network connections up to 20 kilometers while leveraging fiber's immunity to electromagnetic interference.
What types of connectors does it have?
It has two ports: one RJ-45 port for copper Ethernet connections and one ST simplex port for fiber optic cabling. The ST port uses a simplex connector, which is common for single-mode fiber installations requiring one fiber strand per direction.
What is the maximum distance supported?
This converter supports fiber optic distances up to 20 kilometers (approximately 12.43 miles) when using single-mode fiber with 9/125 µm core/cladding. This extends far beyond typical copper Ethernet limits, making it suitable for long-range network links.
What wavelengths does the fiber port support?
The fiber port supports wavelengths of 1310 nm and 1550 nm. These are standard wavelengths for single-mode fiber optics, allowing compatibility with a wide range of fiber infrastructure and transceivers in networking environments.
How is this converter powered?
It is powered by an AC adapter. The design also includes triple power input options, such as dual terminal block power connectors and T-Bus, providing redundancy and flexibility for different power sources in industrial or rack-mounted setups.
Is this unit rack-mountable?
Yes, the SR-100-ST20U has a rail-mountable form factor, allowing it to be installed on standard DIN rails or equipment racks. This makes it ideal for organized deployments in data centers, network closets, or industrial control panels.
