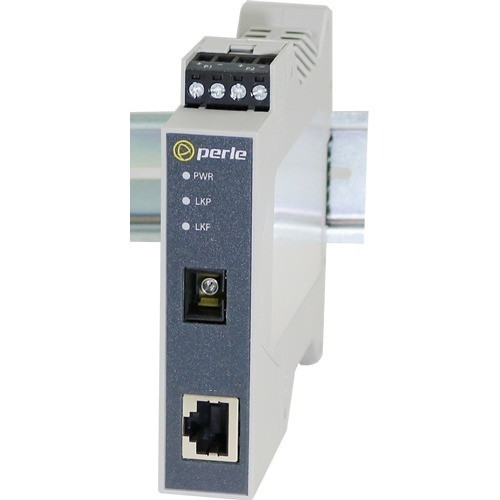

Perle 05091540 SR-1000-SC05D Transceiver/Media Converter - Gigabit Ethernet - 1x RJ-45 to 1x SC Simplex - Multi-mode Fiber - 0. 5 km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The SR-1000-SC05D provides a straightforward conversion between copper Gigabit Ethernet and fiber optic cabling. It features one RJ-45 port for connecting to standard network switches or devices and one SC simplex port for fiber optic uplinks. The converter supports multi-mode fiber with core/cladding specifications of 62.5/125 µm, 50/125 µm, 85/125 µm, and 100/140 µm, offering flexibility with common fiber types.
Key technical specifications include a maximum supported distance of 0.5 km, which is ideal for extending network reach within buildings or across campuses. The device is powered by an AC adapter and includes environmental compliance with RoHS, WEEE, and REACH standards. Its compact dimensions of 4.49" wide, 3.94" deep, and 0.89" high (114 x 100 x 22.5 mm) and lightweight design at 4.23 oz (120 g) facilitate easy deployment in space-constrained environments.
Key Product Advantages
This media converter simplifies network infrastructure by enabling seamless integration of fiber optic cabling into existing copper-based networks. It extends network distances reliably while maintaining Gigabit Ethernet performance, reducing the need for costly infrastructure overhauls.
Distance Extension
Supports network extension up to 0.5 km over multi-mode fiber, overcoming copper cabling distance limitations.
- Ideal for campus or building links
- Maintains signal integrity over fiber
Compatibility
Works with common multi-mode fiber types and Gigabit Ethernet standards, ensuring broad network integration.
- Supports 1000Base-T, BX, and BX-D
- Compatible with various fiber core sizes
Deployment Flexibility
Rail-mountable design and compact size allow for easy installation in racks, closets, or industrial settings.
- Saves space in network enclosures
- Simplifies maintenance and upgrades
Deployment / Use Cases
The SR-1000-SC05D is ideal for scenarios where network segments need to be extended beyond the limits of copper cabling. It is commonly used in enterprise networks, industrial environments, and educational campuses to connect buildings or floors using fiber optic backbone links.
Typical use cases include linking a copper-based network switch in one location to a fiber optic network in another, such as between data centers and remote offices. It also supports applications in surveillance systems, where cameras with copper connections need to transmit video over longer distances via fiber. The rail-mountable form factor makes it suitable for installation in network racks alongside other equipment, ensuring organized and scalable deployments.
Enterprise Network Extension
Connect copper switches to fiber backbones for inter-building links, enhancing network reach and reliability.
Industrial Connectivity
Deploy in manufacturing or utility settings to extend networks over fiber, resisting electromagnetic interference.
Physical Profile
The converter features a compact and durable design with dimensions of 4.49" wide, 3.94" deep, and 0.89" high (114 x 100 x 22.5 mm), weighing approximately 4.23 oz (120 g). Its rail-mountable form factor allows for secure installation in standard network racks or enclosures, optimizing space in data closets or server rooms. The small footprint and lightweight construction facilitate easy handling and deployment in various environments, from office networks to industrial setups.
- Width
- 4.49" (114 mm)
- Depth
- 3.94" (100 mm)
- Height
- 0.89" (22.50 mm)
- Weight
- 4.23 oz (120 g)
- Length
- 1310 nm,1550 nm
Highlights
- Converts Gigabit Ethernet copper (RJ-45) to multi-mode fiber (SC simplex)
- Supports distances up to 0.5 km (0.31 miles) for network extension
- Operates with 1310 nm and 1550 nm wavelengths on multi-mode fiber
- Compatible with 1000Base-T, 1000Base-BX, and 1000Base-BX-D standards
- Rail-mountable form factor for easy installation in network racks
- Powered by AC adapter for reliable operation
- Environmental compliance with RoHS, WEEE, and REACH standards
- Compact dimensions: 4.49" x 3.94" x 0.89" (114 x 100 x 22.5 mm)
- Lightweight design at 4.23 oz (120 g) for portable deployment
- Lifetime limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05091540 |
| Brand Name | Perle |
| Product Series | SR-1000 |
| Product Model | SR-1000-SC05D |
| Product Name | SR-1000-SC05D Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| SC Port Type | Simplex |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 1310 nm,1550 nm |
| Maximum Distance Supported | 0.50 km (0.31 Mile) |
| Fiber Optic Cable Core/Cladding Specification | 62.5/125 µm,50/125 µm,85/125 µm,100/140 µm |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-T,1000Base-BX,1000Base-BX-D |
| Power Description | |
| Power Source | AC Adapter |
| Physical Characteristics | |
| Form Factor | Rail-mountable |
| Height | 0.89" (22.50 mm) |
| Width | 4.49" (114 mm) |
| Depth | 3.94" (100 mm) |
| Weight (Approximate) | 4.23 oz (120 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What does the Perle SR-1000-SC05D media converter do?
The Perle SR-1000-SC05D converts signals between a standard Gigabit Ethernet copper RJ-45 port and a simplex SC multi-mode fiber optic port. This allows network extension over longer distances by bridging copper-based network segments with fiber optic cabling, supporting up to 0.5 km while maintaining Gigabit Ethernet performance.
What types of fiber optic cable does this converter support?
This converter supports multi-mode fiber optic cables with core/cladding specifications of 62.5/125 µm, 50/125 µm, 85/125 µm, and 100/140 µm. It is designed for use with common multi-mode fiber types, operating at wavelengths of 1310 nm and 1550 nm to ensure compatibility with standard fiber infrastructure.
What is the maximum distance supported by this media converter?
The SR-1000-SC05D supports a maximum distance of 0.50 km (0.31 miles) over multi-mode fiber. This distance is ideal for extending network links within buildings, across campuses, or in industrial settings where copper cabling limitations need to be overcome without sacrificing Gigabit Ethernet speeds.
How is this converter powered and installed?
The converter is powered by an included AC adapter, providing reliable operation in various environments. It features a rail-mountable form factor, allowing for easy installation in standard network racks or enclosures. Its compact dimensions of 4.49" wide, 3.94" deep, and 0.89" high make it suitable for space-constrained deployments.
What network standards does the SR-1000-SC05D support?
This media converter supports Gigabit Ethernet standards including 1000Base-T for copper connections, and 1000Base-BX and 1000Base-BX-D for fiber optic links. This ensures compatibility with a wide range of network equipment, enabling seamless integration into existing Gigabit Ethernet infrastructures.
Does this product come with a warranty?
Yes, the Perle SR-1000-SC05D includes a lifetime limited warranty. This warranty provides long-term reliability and support, making it a dependable choice for network deployments where continuous operation is essential. The product also meets environmental compliance standards such as RoHS, WEEE, and REACH.
