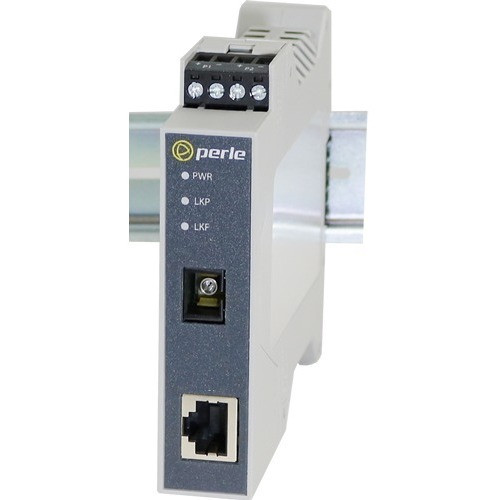

Perle 05091610 SR-1000-SC10D-XT Media Converter - 1x RJ-45 to 1x SC Simplex Single-mode Fiber - 10 km - 1310/1490 nm - Gigabit Ethernet
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates at Gigabit Ethernet speeds, supporting network technologies including 10/100/1000Base-T on the copper side and 1000Base-BX/1000Base-BX-D on the fiber side. It uses a simplex SC connector for single-mode fiber, which simplifies cabling while maintaining high performance.
Advanced features like Auto-MDIX eliminate the need for crossover cables, while Link Pass-Through and Far-End Fault detection enhance network reliability. The device accepts power via a dual terminal block connector and T-Bus, providing redundancy in critical applications.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), Number of Network (RJ-45) Ports, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The SR-1000-SC10D-XT combines distance extension with operational resilience. Its environmental compliance with RoHS, WEEE, and REACH standards ensures it meets regulatory requirements for electronic equipment.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Extended Distance Coverage, Robust Deployment Features.
Extended Distance Coverage
Enables network segments to span up to 10 kilometers without signal degradation, ideal for connecting buildings or remote equipment.
- Single-mode fiber support
- 1310/1490 nm wavelengths
Robust Deployment Features
Designed for challenging environments with a wide operating temperature range and multiple power input methods.
- Rail-mountable form factor
- Triple power input options
Deployment / Use Cases
This media converter is typically deployed to extend existing copper-based Gigabit Ethernet networks over fiber optic cabling. It is effective in scenarios where electromagnetic interference, distance limitations, or security concerns make copper unsuitable.
Common use cases include connecting network switches between separate buildings on a campus, linking industrial control systems in manufacturing plants, or integrating surveillance cameras in outdoor installations where fiber's immunity to lightning and noise is critical.
Building-to-Building Connectivity
Use the converter to link network equipment across different structures using pre-existing single-mode fiber runs, maintaining Gigabit speeds over long distances.
Industrial Network Extension
Deploy in harsh environments where temperature fluctuations and electrical noise are concerns, leveraging its extended temperature rating and fiber's noise immunity.
Physical Profile
The converter has a compact footprint measuring 4.49 inches wide by 3.94 inches deep, with a height of 0.89 inches. It weighs approximately 4.23 ounces, making it lightweight for rail mounting in standard equipment racks. The rail-mountable design allows for efficient use of vertical space in network enclosures.
- Width
- 4.49" (114 mm)
- Depth
- 3.94" (100 mm)
- Height
- 0.89" (22.50 mm)
- Weight
- 4.23 oz (120 g)
- Length
- 1310 nm,1490 nm
Highlights
- Converts 1000Base-T copper to 1000Base-BX single-mode fiber
- 1x RJ-45 port and 1x SC simplex port for simple connectivity
- Supports distances up to 10 km (6.21 miles)
- Operates at 1310 nm and 1490 nm wavelengths
- Gigabit Ethernet performance with Auto-MDIX support
- Rail-mountable form factor for space-efficient installation
- Extended operating temperature range: -40°C to +75°C
- Triple power input with dual terminal block and T-Bus
- Advanced features: Link Pass-Through and Far-End Fault
- Lifetime limited warranty and RoHS/WEEE/REACH compliant
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05091610 |
| Brand Name | Perle |
| Product Series | SR-1000-XT |
| Product Model | SR-1000-SC10D-XT |
| Product Name | SR-1000-SC10D-XT Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| SC Port Type | Simplex |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm,1490 nm |
| Maximum Distance Supported | 10 km (6.21 Mile) |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-BX,1000Base-BX-D |
| Power Description | |
| Power Source | Power Supply |
| Physical Characteristics | |
| Form Factor | Rail-mountable |
| Height | 0.89" (22.50 mm) |
| Width | 4.49" (114 mm) |
| Depth | 3.94" (100 mm) |
| Weight (Approximate) | 4.23 oz (120 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What does this media converter do?
It converts Gigabit Ethernet signals from a copper RJ-45 port to single-mode fiber optic signals over an SC simplex port, allowing network extension up to 10 kilometers while maintaining data integrity across different media types.
What type of fiber does it support?
This converter supports single-mode fiber with a core/cladding specification of 9/125 µm. It is compatible with SC simplex connectors and operates at wavelengths of 1310 nm and 1490 nm for optimal signal transmission over long distances.
How far can it extend my network?
The maximum supported distance is 10 kilometers (approximately 6.21 miles) when using single-mode fiber. This makes it suitable for connecting network segments across buildings or remote locations without requiring intermediate repeaters.
What power options are available?
It features triple power input capabilities, including a dual terminal block power connector and T-Bus. This redundancy ensures continuous operation in critical deployments, and it accepts standard power supply inputs for flexible installation.
Is it suitable for industrial environments?
Yes, with an extended operating temperature range of -40°C to +75°C (-40°F to +167°F), it is designed to perform reliably in harsh conditions. The rail-mountable form factor also allows secure mounting in industrial cabinets or network racks.
What advanced features does it include?
Advanced features include Auto-MDIX for automatic cable type detection, Link Pass-Through to maintain connectivity during power loss on one side, and Far-End Fault detection to alert network administrators of issues on the remote fiber link.
