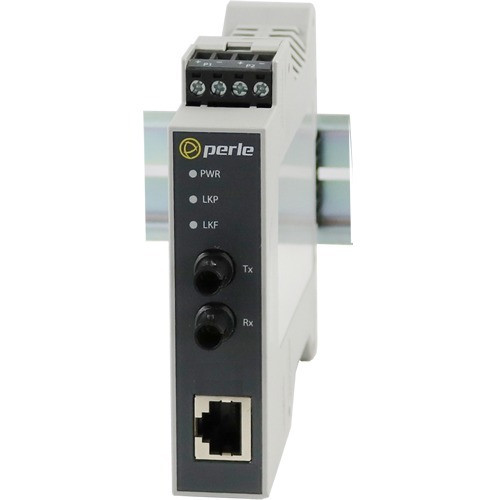

Perle 05091310 SR-1000-ST05 Transceiver/Media Converter - 1 x RJ-45 to 2 x ST Duplex Ports - Multimode 850 nm Fiber - 0. 55 km Distance
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The SR-1000-ST05 operates at Gigabit Ethernet speeds, supporting both 1000Base-T over copper and 1000Base-SX over fiber. It features auto-negotiation and auto-MDIX on the RJ-45 port for simplified deployment, eliminating the need for crossover cables. The converter maintains signal integrity across a maximum distance of 0.55 kilometers on multimode fiber.
Advanced management capabilities include link pass-through and far-end fault detection, providing network visibility and troubleshooting assistance. The device is powered by an external AC adapter and includes environmental compliance with RoHS, WEEE, and REACH standards.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), Number of Network (RJ-45) Ports, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This media converter simplifies network expansion by enabling cost-effective fiber integration without replacing existing copper infrastructure. Its dual ST ports provide redundancy or daisy-chaining options for flexible network topologies.
Distance Extension
Extends network reach up to 0.55 kilometers over multimode fiber, overcoming copper distance limitations for campus or building-to-building connections.
- Supports 1000Base-SX standard
- Maintains Gigabit performance
Deployment Flexibility
The rail-mountable design allows for efficient use of rack space in data centers or network cabinets, while the compact dimensions minimize footprint.
- Standard 19" rack compatible
- Lightweight at 4.23 oz (120 g)
Deployment / Use Cases
The SR-1000-ST05 is ideal for extending network segments beyond the 100-meter limit of copper Ethernet. It connects switches, routers, or servers in separate buildings across a campus, providing reliable fiber connectivity for Gigabit applications.
Common installations include connecting fiber backbone networks to copper-based edge devices, integrating fiber runs in industrial environments where EMI resistance is critical, and upgrading existing infrastructure to support higher bandwidth requirements without complete rewiring.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), Number of Network (RJ-45) Ports, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The converter features a durable metal enclosure with dimensions of 4.49" wide × 3.94" deep × 0.89" high (114 × 100 × 22.5 mm). Its rail-mountable design includes mounting brackets for standard 19" equipment racks, while the lightweight construction at 4.23 ounces (120 grams) simplifies installation. The compact form factor conserves valuable rack space in dense network environments.
- Width
- 4.49" (114 mm)
- Depth
- 3.94" (100 mm)
- Height
- 0.89" (22.50 mm)
- Weight
- 4.23 oz (120 g)
- Length
- 850 nm
Highlights
- Converts Gigabit Ethernet between copper RJ-45 and fiber ST ports
- Supports multimode fiber with 850 nm wavelength
- Extends network distance up to 0.55 kilometers
- Dual ST duplex ports for flexible connectivity
- Rail-mountable form factor for rack installation
- Auto-negotiation and auto-MDIX on RJ-45 port
- Link pass-through and far-end fault detection
- Compliant with RoHS, WEEE, and REACH environmental standards
- Lifetime limited warranty for long-term reliability
- Compact dimensions: 4.49" × 3.94" × 0.89" (114 × 100 × 22.5 mm)
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05091310 |
| Brand Name | Perle |
| Product Series | SR-1000 |
| Product Model | SR-1000-ST05 |
| Product Name | SR-1000-ST05 Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 3 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of ST Ports | 2 |
| ST Port Type | Duplex |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 850 nm |
| Maximum Distance Supported | 0.55 km (0.34 Mile) |
| Fiber Optic Cable Core/Cladding Specification | 62.5/125 µm,50/125 µm,85/125 µm,100/140 µm |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-T,1000Base-SX |
| Power Description | |
| Power Source | AC Adapter |
| Physical Characteristics | |
| Form Factor | Rail-mountable |
| Height | 0.89" (22.50 mm) |
| Width | 4.49" (114 mm) |
| Depth | 3.94" (100 mm) |
| Weight (Approximate) | 4.23 oz (120 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What does this media converter connect?
The Perle SR-1000-ST05 connects one Gigabit Ethernet copper RJ-45 port to two ST duplex fiber optic ports. It converts signals between twisted-pair copper cabling and multimode fiber, allowing integration of fiber segments into copper-based networks.
What type of fiber does this converter support?
This converter supports multimode fiber with an 850 nm wavelength. It is compatible with various core/cladding specifications including 62.5/125 µm, 50/125 µm, 85/125 µm, and 100/140 µm multimode fiber cables commonly used in enterprise and data center environments.
What is the maximum distance supported?
The SR-1000-ST05 supports fiber connections up to 0.55 kilometers (0.34 miles) when using multimode fiber. This extends network reach significantly beyond the 100-meter limitation of standard copper Ethernet cabling for building-to-building or campus deployments.
How is this converter powered?
The converter is powered by an external AC adapter (included). The power input supports standard AC voltage, making it suitable for deployment in standard office, data center, or industrial environments with accessible power outlets.
What are the installation options?
This converter features a rail-mountable design with brackets for standard 19" equipment racks. Its compact dimensions of 4.49" wide × 3.94" deep × 0.89" high allow efficient use of rack space in data centers, network closets, or telecom installations.
What warranty does this product include?
Perle provides a lifetime limited warranty for the SR-1000-ST05 media converter. This warranty covers defects in materials and workmanship for the product's lifetime, offering long-term reliability assurance for network infrastructure investments.
