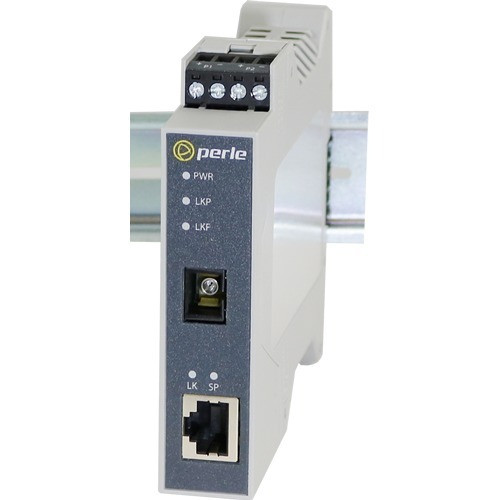

Perle 05091880 SR-1110-SC05D Gigabit Media Converter - RJ-45 to SC Simplex Multi-mode Fiber - 1310/1550 nm - 0. 5 km Distance
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The SR-1110-SC05D delivers reliable media conversion with support for twisted pair copper and optical fiber. It features one RJ-45 port for copper connectivity and one SC simplex port for fiber, handling Gigabit Ethernet traffic with auto-negotiation and auto-MDIX for simplified cabling.
Fiber compatibility includes multi-mode cables with core/cladding specifications of 62.5/125 µm, 50/125 µm, 85/125 µm, and 100/140 µm. The converter achieves a maximum distance of 0.5 km (0.31 miles) over fiber, extending network reach beyond typical copper limitations. Advanced functionality includes link pass-through and far-end fault detection for network integrity.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), Number of Network (RJ-45) Ports, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This media converter simplifies network upgrades by allowing gradual fiber integration without replacing entire copper infrastructures. Its dual-wavelength support and broad fiber compatibility ensure it works with existing multi-mode cable plants.
Extended Reach
Converts copper to fiber to overcome the 100-meter distance limit of Cat5e/Cat6 cables, supporting runs up to 0.5 km for remote device connectivity.
- Eliminates copper distance constraints
- Enables longer fiber backbone links
Industrial Durability
The rail-mountable metal housing and compact dimensions (4.49" W x 3.94" D x 0.89" H) provide robust installation in racks or enclosures.
- Rail-mountable for secure mounting
- Compact footprint saves space
Deployment / Use Cases
The SR-1110-SC05D is ideal for extending Gigabit networks across buildings or campuses where fiber is already deployed. It connects copper-based devices like switches, routers, or servers to fiber backbones, preserving investments in existing equipment.
Common applications include linking copper network segments in industrial settings, educational campuses, or healthcare facilities to fiber optic backbones. It also serves in data center environments where fiber is used for longer-distance connections between racks or across floors.
Campus Network Extension
Connect copper switches in remote buildings to a central fiber backbone, extending network reach up to 0.5 km while maintaining Gigabit performance.
Industrial Ethernet Integration
Integrate copper-based industrial devices into fiber optic networks for improved noise immunity and longer distances in manufacturing or utility environments.
Physical Profile
The converter features a durable metal enclosure with dimensions of 4.49" (114 mm) wide, 3.94" (100 mm) deep, and 0.89" (22.50 mm) high. Its lightweight design at 4.23 oz (120 g) and rail-mountable form factor allow flexible installation in standard network racks or DIN rails. The compact size minimizes space usage in crowded network cabinets.
- Width
- 4.49" (114 mm)
- Depth
- 3.94" (100 mm)
- Height
- 0.89" (22.50 mm)
- Weight
- 4.23 oz (120 g)
- Length
- 1310 nm,1550 nm
Highlights
- Converts Gigabit Ethernet between RJ-45 copper and SC simplex multi-mode fiber
- Supports 1310 nm and 1550 nm wavelengths for flexible fiber deployment
- Extends network distance up to 0.5 km (0.31 miles) over fiber
- Compatible with multi-mode fiber cables (62.5/125 µm, 50/125 µm, 85/125 µm, 100/140 µm)
- Rail-mountable metal housing for secure installation in racks
- Advanced features: link pass-through, far-end fault detection, auto-MDIX
- Power via AC adapter with reliable operation
- Environmentally compliant with RoHS, WEEE, and REACH standards
- Lifetime warranty for long-term reliability
- Compact dimensions: 4.49" W x 3.94" D x 0.89" H
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05091880 |
| Brand Name | Perle |
| Product Series | SR-1110 |
| Product Model | SR-1110-SC05D |
| Product Name | SR-1110-SC05D Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| SC Port Type | Simplex |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 1310 nm,1550 nm |
| Maximum Distance Supported | 0.50 km (0.31 Mile) |
| Fiber Optic Cable Core/Cladding Specification | 62.5/125 µm,50/125 µm,85/125 µm,100/140 µm |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-BX,1000Base-BX-D |
| Power Description | |
| Power Source | AC Adapter |
| Physical Characteristics | |
| Form Factor | Rail-mountable |
| Height | 0.89" (22.50 mm) |
| Width | 4.49" (114 mm) |
| Depth | 3.94" (100 mm) |
| Weight (Approximate) | 4.23 oz (120 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What does this media converter do?
The Perle SR-1110-SC05D converts Gigabit Ethernet signals between a standard RJ-45 copper port and an SC simplex multi-mode fiber optic port. It allows you to connect copper-based network devices to fiber optic cabling, extending network distance and leveraging fiber's noise immunity.
What types of fiber does it support?
This converter supports multi-mode fiber optic cables with core/cladding specifications of 62.5/125 µm, 50/125 µm, 85/125 µm, and 100/140 µm. It operates at 1310 nm and 1550 nm wavelengths, making it compatible with common multi-mode fiber installations in enterprise and industrial networks.
What is the maximum distance it can cover?
The SR-1110-SC05D supports fiber distances up to 0.5 km (0.31 miles). This extends network reach beyond the typical 100-meter limit of copper Ethernet cables, enabling connections between buildings or across large facilities without signal degradation.
How is it powered and installed?
The converter is powered by an included AC adapter. It features a rail-mountable metal housing that can be securely installed in standard network racks or on DIN rails, with compact dimensions of 4.49" wide, 3.94" deep, and 0.89" high for space-efficient deployment.
What network speeds does it support?
It supports Gigabit Ethernet (1000 Mbps) across both copper and fiber interfaces. The copper side handles 10/100/1000Base-T, while the fiber side supports 1000Base-BX and 1000Base-BX-D standards, ensuring full Gigabit performance for data-intensive applications.
What warranty and compliance does it include?
Perle provides a lifetime warranty on this media converter, ensuring long-term reliability. It meets environmental compliance standards including RoHS, WEEE, and REACH, and is manufactured in Taiwan with environmentally friendly materials.
