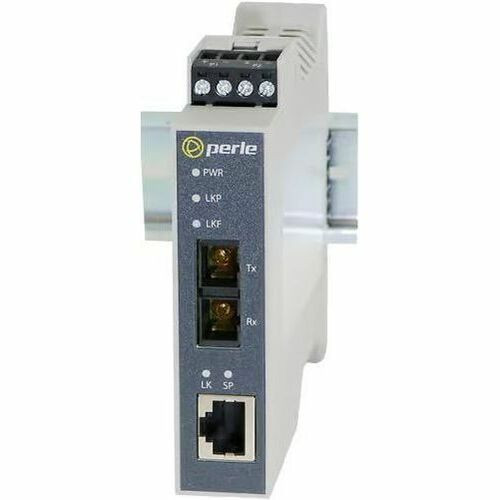

Perle 05092070 SRS-1110-FSC20D Media Converter - 1 x RJ-45 to 1 x SC Single-mode Fiber - Gigabit Ethernet - 20 km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates with single-mode fiber optic cables using 1310 nm and 1550 nm wavelengths, providing long-distance connectivity with minimal signal degradation. The device automatically negotiates between 10 Mbps, 100 Mbps, and 1000 Mbps Ethernet speeds on the copper side while maintaining consistent fiber optic transmission standards.
The terminal block power connection ensures reliable power delivery in environments where standard AC outlets may not be available, while the compact design minimizes footprint in crowded installation spaces.
Key Product Advantages
This converter eliminates the distance limitations of traditional copper cabling while preserving your existing network infrastructure investment. By converting between media types, it enables network expansion without requiring complete rewiring or equipment replacement.
Extended Network Reach
Overcomes the 100-meter limitation of standard Ethernet cabling by converting to fiber optic transmission capable of spanning 20 kilometers between network segments.
- Maintains signal integrity over long distances
- Reduces signal degradation compared to copper extensions
Industrial-Grade Design
The DIN rail mounting capability provides secure installation in industrial environments, control rooms, and telecommunications facilities where vibration resistance and organized cabling are essential.
- Simplifies installation in standard DIN rail systems
- Saves space in crowded equipment enclosures
Deployment / Use Cases
This media converter serves as an ideal solution for connecting network segments across buildings, campuses, or industrial facilities where direct copper connections are impractical. It bridges the gap between office networking equipment and remote locations that require extended reach.
Common applications include connecting surveillance cameras across large properties, linking building management systems between structures, extending network connectivity to remote industrial equipment, and integrating fiber backbone connections with copper-based access networks.
Campus Network Extension
Connect administrative buildings to remote facilities, warehouses, or parking structures using existing fiber infrastructure while maintaining compatibility with standard office networking equipment.
Industrial Automation Networks
Integrate PLCs, sensors, and control systems across manufacturing floors or processing plants where electromagnetic interference makes copper connections unreliable over distance.
Highlights
- Converts between RJ-45 twisted pair and SC single-mode fiber connections
- Supports Gigabit Ethernet (1000 Mbps) and Fast Ethernet (100 Mbps) standards
- Extends network reach up to 20 kilometers over fiber optic cable
- DIN rail mountable for secure industrial installation
- Auto-negotiates between 10/100/1000Base-T network speeds
- Uses 1310 nm and 1550 nm wavelengths for single-mode fiber transmission
- Terminal block power connection for reliable operation
- Lifetime limited warranty from Perle Systems
Specifications
| Specifications | |
|---|---|
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05092070 |
| Brand Name | Perle |
| Product Series | SRS-1110-F |
| Product Model | SRS-1110-FSC20D |
| Product Name | SRS-1110-FSC20D Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm,1550 nm |
| Maximum Distance Supported | 20 km (12.43 Mile) |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,Fast Ethernet |
| Network Technology | 10/100/1000Base-T,100Base-BX |
| Power Description | |
| Plug/Connector Type | Terminal Block |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
What types of connections does this media converter support?
This converter features one RJ-45 port for standard twisted pair Ethernet cable connections and one SC port for single-mode fiber optic cable connections. It converts signals between these two media types, enabling communication between copper-based network equipment and fiber optic network segments.
What is the maximum distance this converter can span between network devices?
The converter supports fiber optic transmission distances up to 20 kilometers (approximately 12.43 miles) when using single-mode fiber cable. On the copper side, it maintains the standard 100-meter limitation for twisted pair Ethernet connections. This makes it ideal for extending networks across campuses, between buildings, or to remote equipment locations.
What Ethernet speeds does this media converter support?
The converter supports 10 Mbps, 100 Mbps, and 1000 Mbps (Gigabit Ethernet) speeds on the copper side, with auto-negotiation to match connected equipment capabilities. On the fiber side, it maintains corresponding transmission rates to ensure consistent data throughput across the converted connection.
How is this media converter powered and installed?
Power is supplied through a terminal block connection, which provides secure wiring in industrial environments. The unit features a DIN rail mountable form factor for installation in standard industrial control panels, server racks, or telecommunications cabinets, making it suitable for both commercial and industrial networking applications.
