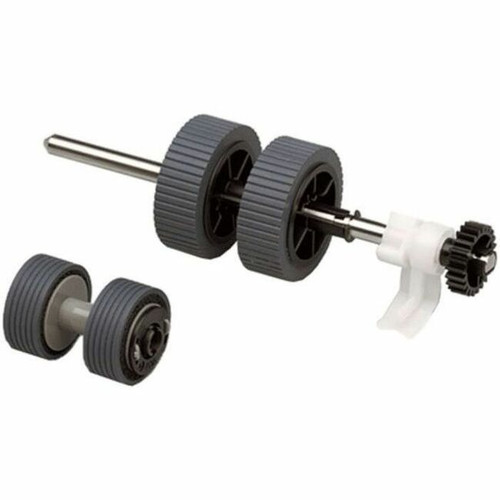

PA03656-0001 PFU Pick and Brake Roller Set - Scanner Consumable for Ricoh iX500 - iX1400 - iX1500 - iX1600
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This scanner consumable set addresses the mechanical feeding system that directly impacts document processing reliability. The pick roller initiates document movement from the input tray, while the brake roller provides controlled separation to prevent multiple sheets from feeding simultaneously.
Made to PFU's specifications for Ricoh scanners, these rollers maintain the precise friction coefficients and dimensional tolerances required for optimal performance. The set represents a complete feeding mechanism replacement that restores original equipment functionality when wear affects scanning reliability.
This section brings together practical product details such as Package Contents, Application/Usage, Compatibility, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This consumable set delivers essential maintenance benefits for Ricoh document scanners, focusing on feeding reliability and operational continuity.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Restored Feeding Performance, Scanner-Specific Compatibility.
Restored Feeding Performance
Replaces worn rollers to eliminate paper jams and misfeeds that disrupt scanning workflows.
- Maintains original friction characteristics
- Prevents document damage from feeding issues
- Ensures consistent sheet separation
Scanner-Specific Compatibility
Engineered exclusively for Ricoh iX500, iX1400, iX1500, and iX1600 models to guarantee proper fit and function.
- Direct replacement for original parts
- No modification required
- Preserves scanner warranty compliance
Deployment / Use Cases
The PA03656-0001 roller set serves as a preventive maintenance component for document scanning environments where reliability directly impacts productivity.
Ideal for office settings with moderate to high scanning volumes, including legal firms processing case documents, accounting departments digitizing financial records, healthcare facilities managing patient forms, and educational institutions handling administrative paperwork. Regular replacement as part of a scheduled maintenance program helps maintain optimal scanner performance between major service intervals.
Preventive Maintenance
Replace rollers proactively before feeding issues cause scanning interruptions or document damage.
Troubleshooting Resolution
Address specific feeding problems like paper jams, double feeds, or misfeeds that indicate worn roller components.
What's in the Box
This consumable set includes the complete replacement components needed to restore scanner feeding functionality.
Highlights
- Genuine PFU consumable part for Ricoh scanners
- Compatible with iX500, iX1400, iX1500, and iX1600 models
- Includes both pick roller and brake roller
- Restores original feeding performance
- Prevents paper jams and misfeeds
- Maintains scanner reliability
- Easy replacement procedure
- Supports high-volume scanning environments
Specifications
| Specifications | |
|---|---|
| Manufacturer | Ricoh Imaging Company, Ltd. |
| Manufacturer Part Number | PA03656-0001 |
| Brand Name | PFU |
| Product Name | Consumable, Pick AND Brake Roller Set iX500 iX1400 iX1500 iX1600 |
| Product Type | Scanner Brake/Pick Roller |
| Miscellaneous | |
| Package Contents | 1 x Pick Roller 1 x Brake Roller |
| Application/Usage | Scanner |
| Compatibility | Ricoh Scanners: iX500 iX1400 iX1500 iX1600 |
FAQ
Which Ricoh scanner models are compatible with the PA03656-0001 roller set?
This PFU consumable set is specifically designed for Ricoh iX500, iX1400, iX1500, and iX1600 document scanners. These rollers maintain the precise dimensions and friction characteristics required by these scanner models to ensure proper document feeding and separation during scanning operations.
What components are included in the PA03656-0001 package?
The package contains two essential scanner feeding components: one pick roller and one brake roller. These work together as a complete feeding mechanism replacement set. The pick roller initiates document movement from the input tray, while the brake roller provides controlled separation to prevent multiple sheets from feeding simultaneously.
When should I replace the pick and brake rollers on my Ricoh scanner?
Replace these consumable rollers when you experience feeding issues such as paper jams, misfeeds, or double feeds. For preventive maintenance in moderate to high-volume scanning environments, consider replacing them every 50,000 to 100,000 sheets or according to your scanner's maintenance schedule to maintain optimal performance and prevent scanning interruptions.
Is the PA03656-0001 a genuine PFU part for Ricoh scanners?
Yes, this is a genuine PFU consumable manufactured to the original equipment specifications for Ricoh document scanners. Using genuine parts ensures proper fit, maintains performance standards, and helps preserve any remaining scanner warranty coverage by avoiding compatibility issues that can arise with third-party replacement components.
How do pick and brake rollers affect scanner performance?
These rollers directly control document feeding reliability. The pick roller grips and moves sheets from the input tray, while the brake roller creates friction to separate individual sheets. Worn rollers lose their friction characteristics, leading to feeding problems that cause paper jams, document damage, and scanning interruptions that reduce productivity in document processing workflows.
Can I install the PA03656-0001 roller set myself, or do I need professional service?
The installation process varies by scanner model but is generally designed as a user-replaceable consumable. Consult your scanner's user manual for specific replacement instructions. Most Ricoh iX series scanners allow roller replacement through accessible panels without requiring complete disassembly, making it a straightforward maintenance procedure for trained office staff.
