Plugable TBT4-UD5 Thunderbolt 4 Docking Station with 100W Charging - Dual 4K/8K HDMI - 13-Port Design
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Built around Thunderbolt 4 technology, the TBT4-UD5 delivers 40Gbps bidirectional bandwidth for ultra-fast data transfers and display throughput. The downstream Thunderbolt 4 port provides 15W charging and supports 8K display output, while the host connection supplies 96W Power Delivery to compatible laptops.
Port configuration includes two HDMI 2.0 ports, four USB-A ports (10Gbps and 5Gbps), one USB-C 10Gbps port, Gigabit Ethernet, SD/microSD card readers, a 3.5mm audio combo jack, and a Kensington lock slot. This comprehensive array handles everything from external monitors and storage drives to wired networking and headset connections.
Relevant factors for this section include Charging Capability, Device Supported, Number of HDMI Ports, HDMI. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The TBT4-UD5 stands out with its certified Thunderbolt 4 performance, ensuring reliable high-speed connectivity and compatibility. It simplifies desk setups by reducing cable clutter and providing a centralized hub for all essential peripherals and displays.
Display Flexibility
Supports dual 4K 60Hz monitors for expanded workspace or a single 8K display for ultra-high-resolution content creation and media viewing.
- HDMI 2.0 ports
- 60Hz refresh rate
- Thunderbolt 4/5 or USB4 host required for full capabilities
Power & Charging
Delivers up to 96W of power to charge most modern laptops through a single cable, eliminating the need for a separate power adapter.
- USB Power Delivery
- 15W on downstream Thunderbolt port
- Keeps laptop powered during use
Deployment / Use Cases
Ideal for professionals, creators, and hybrid workers who need a reliable docking solution for home offices, corporate desks, or shared workspaces. It turns a laptop into a desktop equivalent with minimal setup time and maximum connectivity.
Use cases include video editors requiring high-resolution monitor support, IT professionals managing multiple peripherals, remote workers needing a clean one-cable docking experience, and students or designers who value portability without sacrificing desk functionality.
Physical Profile
The dock measures 8.90 inches wide by 0.90 inches tall (226.06 × 22.86 mm) and weighs 12.90 ounces (365.71 g), making it slim and lightweight for easy placement on any desk. Its compact footprint saves space while the durable construction ensures long-term reliability in daily use.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 0.90" (22.86 mm), 8.90" (226.06 mm), 12.90 oz (365.71 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 8.90" (226.06 mm)
- Height
- 0.90" (22.86 mm)
- Weight
- 12.90 oz (365.71 g)
Highlights
- Thunderbolt 4 certified with 40Gbps data speeds
- Supports dual 4K 60Hz HDMI displays or a single 8K monitor
- Delivers 96W Power Delivery to charge compatible laptops
- Includes 13 total ports for comprehensive connectivity
- Intel Evo certified and award-winning performance
- Compatible with Thunderbolt 4, Thunderbolt 5, and USB4 systems
- Features Gigabit Ethernet, SD/microSD readers, and audio jack
- Compact design with dimensions of 8.90" × 0.90"
Specifications
| Specifications | |
|---|---|
| Manufacturer | Plugable Technologies |
| Manufacturer Part Number | TBT4-UD5 |
| Brand Name | Plugable |
| Product Name | Docking Station |
| Packaged Quantity | 1 |
| Product Type | Docking Station |
| Technical Information | |
| Charging Capability | Yes |
| Device Supported | Notebook |
| Interfaces/Ports | |
| Number of HDMI Ports | 2 |
| HDMI | Yes |
| Thunderbolt | Yes |
| USB Power Delivery | 96W |
| Physical Characteristics | |
| Height | 0.90" (22.86 mm) |
| Width | 8.90" (226.06 mm) |
| Weight (Approximate) | 12.90 oz (365.71 g) |
FAQ
What display configurations does this dock support?
The Plugable TBT4-UD5 supports two 4K monitors at 60Hz simultaneously or a single 8K display. This requires a host laptop with Thunderbolt 4, Thunderbolt 5, or USB4 connectivity. For macOS, dual display is supported on M4, M5, M3 Pro/Max, M2 Pro/Max, and M1 Pro/Max models, plus base M3 in clamshell mode.
How much power does it deliver to my laptop?
This dock provides up to 96W of USB Power Delivery to charge your laptop through the host Thunderbolt 4 connection. It also supplies 15W of power via the downstream Thunderbolt 4 port for peripherals. This eliminates the need for a separate laptop charger during docking.
What ports are included on the docking station?

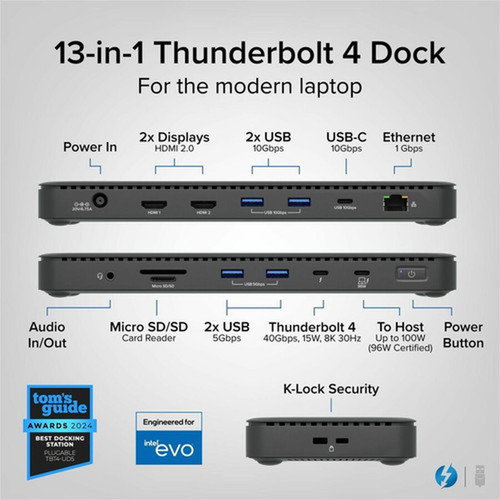

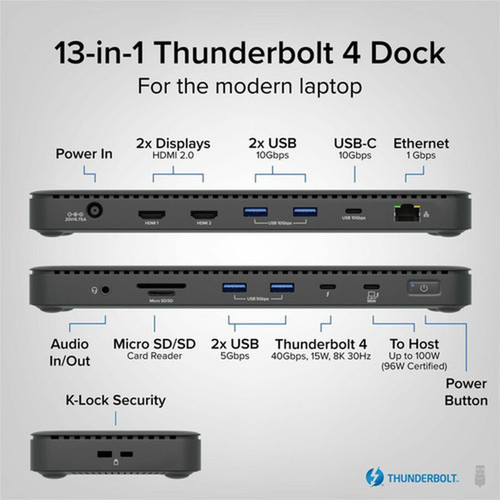

The TBT4-UD5 features 13 ports: two HDMI 2.0, one Thunderbolt 4 downstream (40Gbps, 15W charging), four USB-A (10Gbps and 5Gbps), one USB-C (10Gbps), Gigabit Ethernet, SD and microSD card readers, a 3.5mm audio combo jack, and a Kensington lock slot for security.
Is it compatible with my MacBook?
Yes, it works with MacBooks that have Thunderbolt 4, Thunderbolt 5, or USB4 ports. For dual display support, you need an M4, M5, M3 Pro/Max, M2 Pro/Max, or M1 Pro/Max Mac, or a base M3 model in clamshell mode. Base M1 and M2 MacBooks support a single external display.
What is the data transfer speed?
The dock utilizes Thunderbolt 4 technology for 40Gbps bidirectional data transfer speeds. This enables fast file transfers to external storage, smooth peripheral performance, and high-bandwidth display output without bottlenecks.
Can I use it with non-Thunderbolt USB-C laptops?
Yes, but with limitations. On Windows laptops with non-Thunderbolt USB-C or Thunderbolt 3 ports, only a single external display is supported. The dock will still provide power delivery and data connectivity for other ports, but dual display functionality requires Thunderbolt 4, Thunderbolt 5, or USB4 host connections.
