Plugable USBC-NVME USB-C to M. 2 NVMe Tool-Free Enclosure - External SSD Enclosure with 10Gbps USB 3.1 Gen 2 & Thunderbolt 3/4 Support
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The Plugable USBC-NVME USB-C to M.2 NVMe Tool-Free Enclosure transforms compatible M.2 NVMe SSDs into high-performance external storage. This external drive enclosure delivers up to 10Gbps transfer speeds through USB 3.1 Gen 2 connectivity while maintaining full compatibility with Thunderbolt 3 and Thunderbolt 4 interfaces.
Designed for tool-free installation, the enclosure features a removable cable system and aluminum housing with integrated heatsink fins for thermal management. The compact, travel-ready form factor makes it suitable for desktop and mobile workflows across Windows, macOS, Linux, and ChromeOS environments without requiring additional drivers.
Relevant factors for this section include Number of Solid State Drive Supported, Number of Solid State Drive Installed, Number of Total Expansion Bays. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Technical Overview
This enclosure supports M.2 NVMe SSDs in 2230, 2242, 2260, and 2280 form factors, accommodating PCIe Gen 3 and Gen 4 drives of any capacity. The USB 3.1 Type C host interface delivers theoretical transfer speeds up to 10Gbps, with real-world read/write performance exceeding 900MB/s when paired with compatible NVMe SSDs.

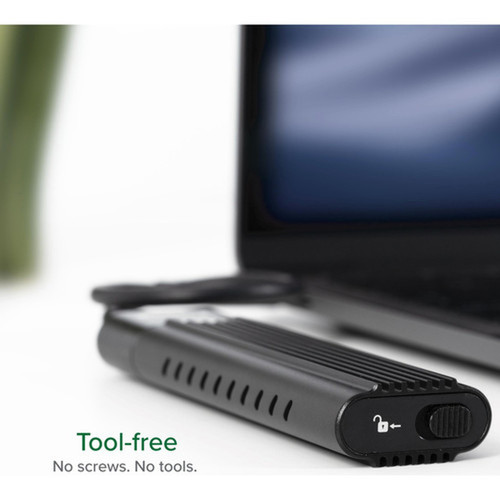

The tool-free design eliminates the need for screws or specialized tools during SSD installation. The aluminum enclosure incorporates low-profile heatsink fins to dissipate heat during sustained data transfers, while the removable cable system provides flexibility for different host connections.
Relevant factors for this section include Number of Solid State Drive Supported, Number of Solid State Drive Installed, Number of Total Expansion Bays. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This enclosure combines high-speed connectivity with user-friendly installation and broad compatibility. The tool-free design significantly reduces setup time while maintaining secure SSD mounting through integrated rubber locks.
Universal Connectivity
Supports USB 3.0, USB-C, USB4, Thunderbolt 3, and Thunderbolt 4 host connections, ensuring compatibility with modern laptops, desktops, and workstations across multiple generations of hardware.
- Backward compatible with USB 3.0
- Forward compatible with USB4
- Thunderbolt 3 and 4 support
Thermal Management

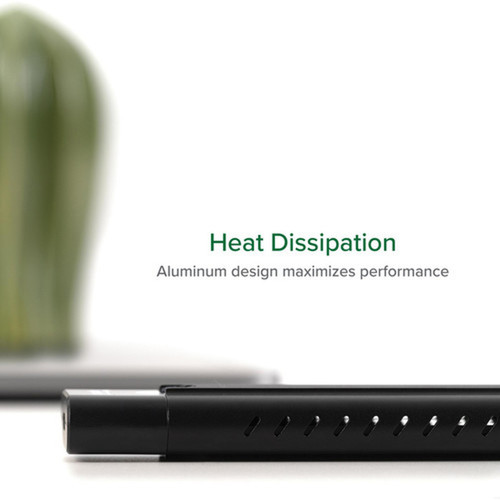

The aluminum enclosure with integrated heatsink fins helps maintain optimal operating temperatures during extended data transfers, protecting SSD performance and longevity in portable applications.
- Aluminum construction
- Integrated heatsink design
- Passive cooling solution
Deployment / Use Cases
This external NVMe enclosure serves as an ideal solution for expanding storage capacity on systems with limited internal drive bays or for creating portable high-performance storage arrays. The tool-free design makes it particularly valuable for field technicians, content creators, and IT professionals who frequently swap drives between systems.
Common deployment scenarios include external boot drives for operating system testing, high-speed backup targets for critical data, portable editing drives for video production workflows, and temporary storage expansion for laptops with soldered storage. The cross-platform compatibility ensures seamless operation across Windows, macOS, and Linux environments without driver installation.
Content Creation Workflow
Video editors and photographers can use this enclosure to create portable high-speed storage for 4K/8K media files, with transfer speeds sufficient for direct editing from the external drive.
IT & System Administration
System administrators benefit from the tool-free design when cloning drives, deploying system images, or troubleshooting storage issues across multiple computers in enterprise environments.
What's in the Box
The package includes all necessary components for immediate deployment with most M.2 NVMe SSDs and host systems.
Highlights
- Tool-free M.2 NVMe SSD installation with no screws or tools required
- Supports USB 3.1 Gen 2 speeds up to 10Gbps with Thunderbolt 3/4 compatibility
- Compatible with M.2 NVMe SSDs in 2230, 2242, 2260, and 2280 form factors
- Works with PCIe Gen 3 and Gen 4 NVMe drives of any capacity
- Cross-platform support for Windows, macOS, Linux, and ChromeOS without drivers
- Includes both USB-C to C and USB-C to 3.0 cables for flexible connectivity
- Aluminum enclosure with heatsink fins for thermal management during transfers
- 2-year limited warranty with lifetime technical support from North American team
Specifications
| Specifications | |
|---|---|
| Manufacturer | Plugable Technologies |
| Manufacturer Part Number | USBC-NVME |
| Brand Name | Plugable |
| Product Name | USB C to M.2 NVMe Tool-free Enclosure USB C and Thunderbolt 3 |
| Packaged Quantity | 1 |
| Product Type | Drive Enclosure |
| Technical Information | |
| Number of Solid State Drive Supported | 1 |
| Number of Solid State Drive Installed | No |
| I/O Expansions | |
| Number of Total Expansion Bays | 1 |
| Network & Communication | |
| Wireless LAN | No |
| Interfaces/Ports | |
| Host Interface | USB 3.1 Type C |
| Physical Characteristics | |
| Form Factor | External |
| Miscellaneous | |
| Package Contents | USB C to M.2 NVMe Tool-free Enclosure USB C and Thunderbolt 3 1 x USB-C to C Cable 1 x USB-C to 3.0 Cable 3 x Replacement SSD Rubber Locks |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 2 Year |
FAQ
What types of M.2 SSDs are compatible with this enclosure?
This enclosure supports M.2 NVMe SSDs in 2230, 2242, 2260, and 2280 form factors. It is compatible with PCIe Gen 3 and Gen 4 NVMe drives of any capacity. The enclosure does not support M.2 SATA SSDs, AHCI drives, or non-NVMe PCIe drives, so verify your SSD uses the NVMe protocol before purchase.
What transfer speeds can I expect with this USB-C enclosure?
The enclosure supports USB 3.1 Gen 2 with theoretical speeds up to 10Gbps. With compatible NVMe SSDs, real-world read/write speeds typically exceed 900MB/s. Actual performance depends on your specific SSD capabilities, host system interface, and file transfer characteristics, but the enclosure maximizes available bandwidth from supported connections.
Does this enclosure work with Thunderbolt 3 and Thunderbolt 4 ports?
Yes, the enclosure is fully compatible with Thunderbolt 3 and Thunderbolt 4 ports in addition to USB-C and USB 3.0 connections. When connected to Thunderbolt ports, it operates at the maximum supported speed of the host interface while maintaining backward compatibility with USB standards for versatile connectivity across different systems.
What operating systems does this NVMe enclosure support?
The enclosure works with Windows, macOS, Linux, and ChromeOS operating systems without requiring additional drivers. For new NVMe SSDs, you may need to partition and format the drive using your operating system's disk management tools before first use. The enclosure itself is plug-and-play across these platforms.
Is the SSD included with this enclosure?
No, the enclosure ships without an SSD. You need to provide your own compatible M.2 NVMe SSD. The tool-free design makes installation straightforward—simply insert your NVMe SSD into the enclosure and secure it with the integrated rubber locks, no screws or tools required.
What warranty and support does Plugable provide for this product?
Plugable provides a 2-year limited warranty against defects in materials and workmanship. Additionally, the company offers lifetime technical support from their North American-based team, available for pre-purchase questions and post-purchase assistance. This combination of warranty coverage and ongoing support ensures long-term reliability for your storage solution.
