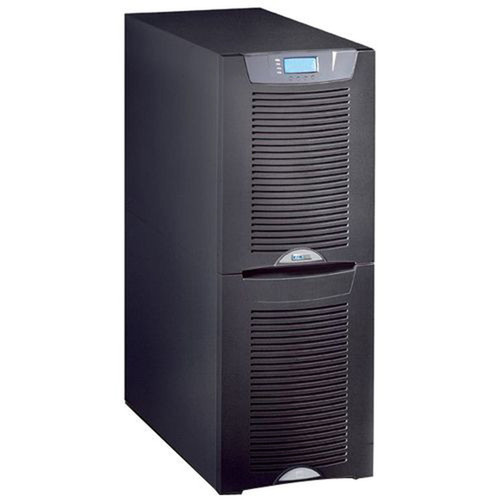

Powerware K41012000000000 PW9155 10 kVA Double Conversion Online UPS - Tower - 64 Battery (3-high) - 220 V AC Input - 22 Minute Full Load Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This UPS operates with a 220 V AC input voltage and supports a wide range of output voltages from 100 V AC to 240 V AC, accommodating diverse electrical standards. The input frequency is 65 Hz, while the output stabilizes at 60 Hz for consistent power delivery.
The maintenance-free lead-acid battery chemistry ensures long service life with minimal upkeep. At full load, the system provides 22 minutes of runtime, extending to 52 minutes at half load, with a typical recharge time of 3 hours.
This section brings together practical product details such as Plug/Connector Type, Transfer Time, Load Capacity (VA), Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The PW9155 combines high capacity with robust construction, making it suitable for data centers, medical facilities, and industrial applications where power quality is non-negotiable.
Zero Transfer Time
The double conversion online topology ensures uninterrupted power with no switching delay, protecting sensitive equipment from voltage fluctuations.
- Eliminates power gaps
- Maintains voltage stability
- Protects against surges and sags
Extended Runtime
With 64 battery modules, this UPS offers substantial backup duration, supporting critical operations during extended outages.
- 22 minutes at full load
- 52 minutes at half load
- Scalable battery configuration
Wide Voltage Compatibility
Supports multiple output voltages, allowing deployment in various regions and with different equipment standards.
- 100-240 V AC range
- Flexible installation
- Global usability
Deployment / Use Cases
This UPS is ideal for environments requiring high reliability and extended backup times. Its tower form factor suits standalone installations where rack mounting is not required, such as server rooms or network closets.
Common applications include protecting server racks, telecommunications equipment, and industrial control systems. The hardwired connection makes it suitable for permanent installations, while the Eaton software suite enables remote monitoring and management.
This section brings together practical product details such as Plug/Connector Type, Transfer Time, Load Capacity (VA), Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Data Center Backup
Provides critical power protection for servers and storage systems, ensuring data integrity and operational continuity during outages.
Industrial Power Security
Safeguards manufacturing and process control equipment from power disturbances that could cause downtime or damage.
Physical Profile
The tower design measures 47.80 inches in height, 12 inches in width, and 34 inches in depth, with a weight of approximately 590 pounds. This substantial footprint requires adequate floor space and proper handling during installation.
The robust construction ensures durability in operational environments, with dimensions that facilitate placement in equipment rooms or dedicated UPS enclosures.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 47.80" (1214.12 mm), 12" (304.80 mm), 34" (863.60 mm), 590 lb (267619.50 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 12" (304.80 mm)
- Depth
- 34" (863.60 mm)
- Height
- 47.80" (1214.12 mm)
- Weight
- 590 lb (267619.50 g)
What's in the Box
The package includes the 9155 10kVA Tower UPS unit, a software suite CD, and a user guide. The Eaton software suite is provided for enhanced management capabilities.
Highlights
- 10 kVA double conversion online UPS for critical power protection
- Tower form factor with dimensions of 47.80" H x 12" W x 34" D
- 64 battery modules in a 3-high configuration for extended runtime
- 22-minute full load and 52-minute half load backup times
- 3-hour typical battery recharge time
- 220 V AC input voltage with wide output voltage range (100-240 V AC)
- Hardwired connection with zero transfer time
- Maintenance-free lead-acid battery chemistry
- Includes Eaton software suite for remote management
- 2-year limited warranty, manufactured in the United States
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | K41012000000000 |
| Brand Name | Powerware |
| Product Name | PW9155 10 kVA 64 Battery (3-high) |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hardwired |
| Transfer Time | 0 ns |
| Power Description | |
| Load Capacity (VA) | 10 kVA |
| Input Voltage | 220 V AC |
| Output Voltage | 100 V AC,110 V AC,120 V AC,127 V AC,200 V AC,208 V AC,220 V AC,240 V AC |
| Input Frequency | 65 Hz |
| Output Frequency | 60 Hz |
| Battery Information | |
| Battery Characteristics | Maintenance-free |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 22 Minute |
| Backup/Run Time (Half Load) | 52 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Physical Characteristics | |
| Form Factor | Tower |
| Height | 47.80" (1214.12 mm) |
| Width | 12" (304.80 mm) |
| Depth | 34" (863.60 mm) |
| Weight (Approximate) | 590 lb (267619.50 g) |
| Miscellaneous | |
| Package Contents | 9155 10kVA Tower UPS Software Suite CD User Guide |
| Software Included | Eaton Software Suite |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | 2 Year |
FAQ
What is the power capacity of this UPS?
The Powerware PW9155 has a load capacity of 10 kVA, making it suitable for protecting medium to large server setups, network equipment, or industrial systems that require substantial power backup.
How long does the battery last during a power outage?
At full load, the UPS provides 22 minutes of runtime. Under half load conditions, the runtime extends to 52 minutes, offering flexibility for critical operations during outages.
What is the recharge time for the batteries?
The typical battery recharge time is 3 hours, allowing the system to restore full backup capacity relatively quickly after a discharge event.
What input voltage does this UPS require?
This unit operates with a 220 V AC input voltage. It is designed for environments with this specific electrical supply, ensuring compatibility with standard power infrastructures.
What output voltages are supported?
The UPS supports output voltages of 100 V AC, 110 V AC, 120 V AC, 127 V AC, 200 V AC, 208 V AC, 220 V AC, and 240 V AC, accommodating a wide range of equipment and regional standards.
Is this a tower or rack-mounted UPS?
This is a tower form factor UPS, designed for standalone floor placement. It measures 47.80 inches in height, 12 inches in width, and 34 inches in depth, requiring adequate floor space for installation.
What power capacity is listed for this UPS?
The listed power specification is 10 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 220 V AC, which helps position the unit for the right load level and installation role.
