Premium Hi-Flex Double Shielded Composite BNC Cable Male To Flexible Shielding For Reduced Interference Phantom Cables FN-BNC1PH-25
SKU:
FN-BNC1PH-25
(No reviews)
Write a Review
Write a Review
Fleet Network
Premium Hi-Flex Double Shielded Composite BNC Cable Male To Flexible Shielding For Reduced Interference Phantom Cables FN-BNC1PH-25
$40.14
$40.00
Warranty Information:
Covered by Manufacturer
Condition:
New
B2B Pricing
Business volume discounts
IT Experts
Technical guidance
IT Configuration
Preparation & staging
Canada Stock
QC · ON · AB · BC
Product Features
Description

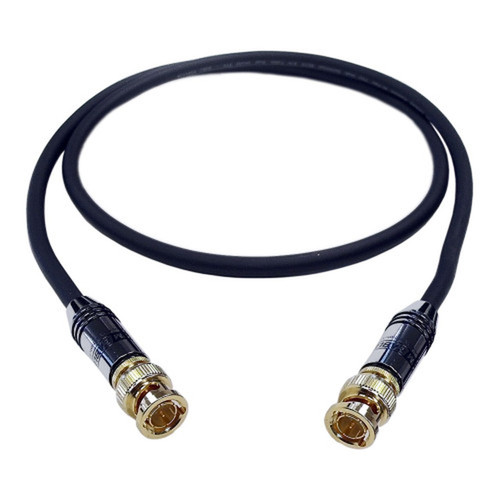

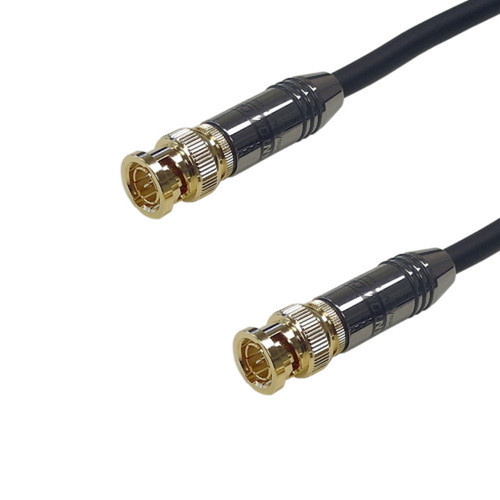

This premium hi-flex double shielded RG59 cable consists of a BNC male connector on one end and a BNC male on the other end. It is typically used to connect a video cameras BNC composite output to a monitors BNC composite input.
- Constructed of low-loss, High Definition 75 ohm RG59 stranded cable
- Gas injected dielectric insulation allows for a stable velocity of propagation (82%) therefore minimizing possible timing delays
- Cables nominal capacitance is an exceptional 16.2 pf/ft (53.1 pf/m) and has a nominal attenuation of 3.00 dB/100ft
- The cable also boasts a conductor resistance of 14.8 Ohms/1000ft
- Dual shielding includes a 100% aluminum/mylar foil, plus a 95% tinned copper braid
- High quality, gold plated, soldered connectors optimizes connectivity and maintains a clear signal integrity
- Lead Free, "silver laced" solder is used in order to reduce loss and maximize conductivity
Physical Characteristics | |
|---|---|
| Cable Length | 25 foot |
| Color | Black |
| Connector Plating | Gold |
| Cable Diameter | 22AWG Stranded |
| Cable Type | RG59 |
| Jacket Material | PVC - Polyvinyl Chloride |
| Fire Rating | FT4 (Riser CMR) |
| Cable Shielding | 95% Bare Copper Braid, 100% Aluminum Mylar Foil |
| Insulation | Foam Polyethylene |
| Strain Relief | Metal Shell |
Performance | |
| Impedance | 75 Ohm |
| Velocity of Propagation | 78% |
| Capacitance | 18.6 PF/FT |
Connector(s) | |
| Connector A | 1 - BNC Male |
| Connector B | 1 - BNC Male |
Approvals | |
| cUL | Yes - Cable |
Environmental | |
| RoHS | Yes |
Packaging Information | |
| Package Quantity | 1 - Cable |
| Product Weight | 1.5 lbs [0.7kg] |
Warranty Information | |
| Warranty | Limited Lifetime |
