100ft - 30m 8-Fiber Multimode OM3 12-Position MPO Female (no guide pins) to 8x LC/UPC (clipped in pairs), OFNP

(No reviews) Write a Review
$232.81
$197.00
(You save $35.81 )
SKU: FN-FO-1313-100P
Availability: In Canada. Usually ship same day.
Weight: 0.74 LBS
Adding to cart… The item has been added

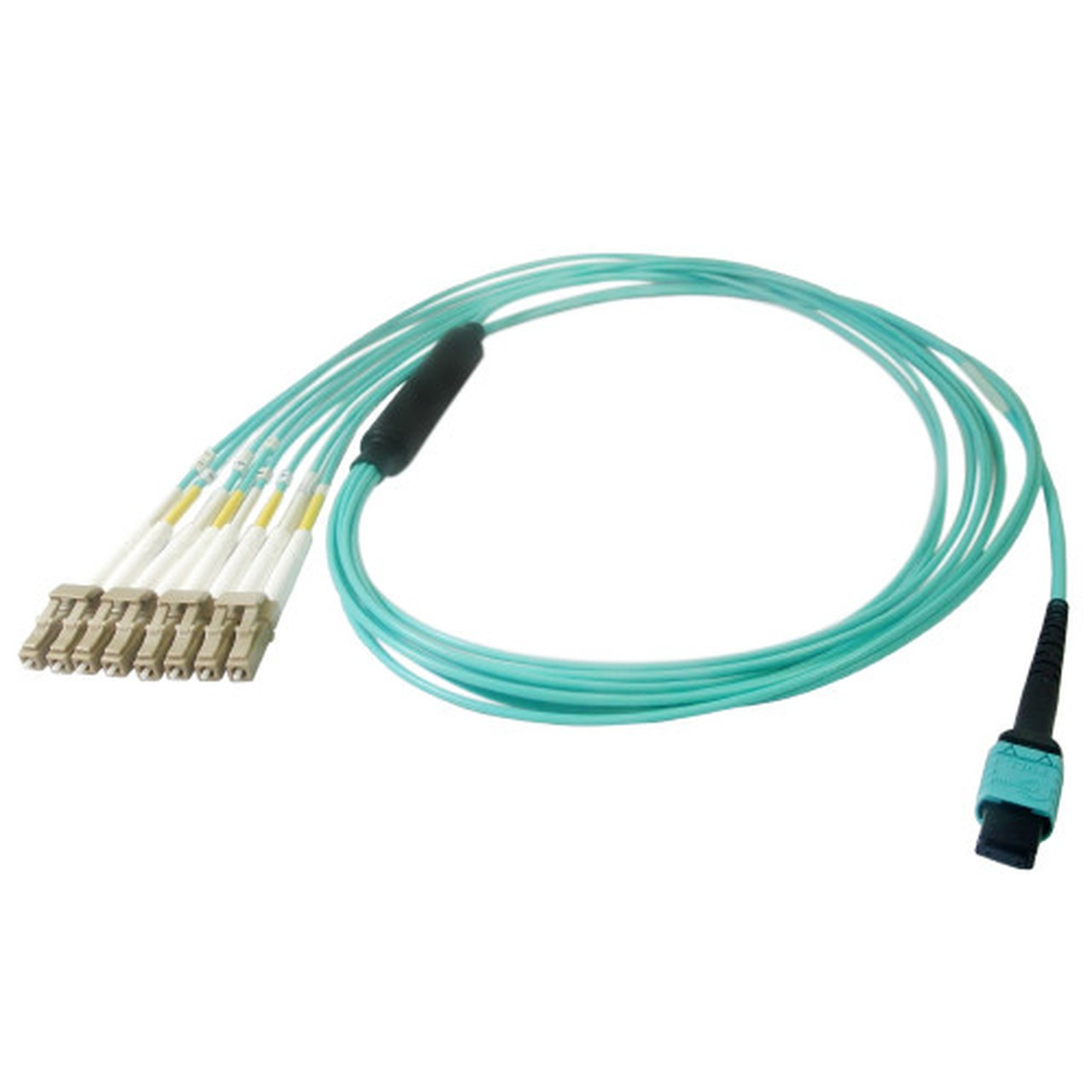

This multimode fiber optic MPO breakout cable is made with Corning glass fiber and consists of a MPO/MTP female connector on one end and 4 duplex LC male connectors on the other. It is used in high bandwidth datacenter applications connecting switches or MPO/MTP cassettes.

Physical Characteristics
Cable Length 30m [100 foot]
Breakout Length24 inches
Color Aqua
Cable Diameter 3mm
Fiber Count 8 Fibers
Fiber Type Multimode 50/125 Micron OM3
Glass Manufacturer Corning Glass
Jacket Rating Plenum (OFNP)
Connector(s)
Connector A 1 - 12-Position MPO Female (no guide pins) Elite Connectors
Connector B 4 - LC Duplex Male
Performance
MPO Insertion Loss ≤0.35 dB
MPO Return Loss ‰≥20db
LC Insertion Loss ≤0.3 dB
LC Return Loss ≥20 dB
testing 100% IL, RL and Interferometer Tested
Environmental
RoHS Yes
UL UL Listed Cable
Packaging Information
Package Quantity 1
Product Weight 0.74 lbs [0.34kg]
Warranty Information
Warranty Limited Lifetime
