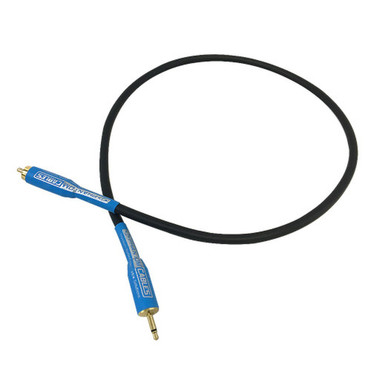

100ft Premium Digital Coax RCA Male To 3.5mm Male Cable 18AWG FT4 - Black (FN-DIG-35MM-100)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
This digital audio cable has a RCA male on one end and a 3.5mm mono male on the other. It is typically used to connect a 3.5mm digital audio output of a PC to digital coax RCA input of surround sound system.
- Constructed of double shielded, 75 ohm, RG6, 18 awg, digital coax cable for ultra crisp sounding digital audio
- FPE dielectric insulation allows for a stable velocity of propagation therefore minimizing possible timing delays
- Dual shielding includes a 100% aluminum/mylar foil, plus a 95% tinned copper braid
- Cables nominal capacitance is an exceptional 17.3 pf/ft and has a nominal attenuation of 3.10 dB/100ft @ 200Mhz
- High quality, gold plated, heavy duty shielded connectors optimizes connectivity and maintains a clear signal integrity
- The connector backshells are made of a durable, zinc plated metal alloy
- FT4 riser fire rated jacket for in-wall use
- Lead Free, "silver laced" solder is used in order to reduce loss and maximize conductivity
Physical Characteristics | |
---|---|
Length | 100 foot |
Color | Black |
Connector Plating | Gold |
Cable Type | RG6 |
Cable Diameter | 6.86mm |
Wire Gauge | 18AWG |
Jacket Material | PVC - Polyvinyl Chloride |
Fire Rating | FT4 (Riser CMR) |
Cable Shielding | Dual Shielding 100% Aluminum/Mylar Foil, Plus a 95% Tinned Copper Braid |
Connectors | |
Connector A | RCA Male |
Connector B | 3.5mm Mono Male |
Connector A Diameter | 12.7 mm |
Connector B Diameter | 12.7 mm |
Approvals | |
cUL | Yes - Cable |
Environmental | |
RoHS | Yes |
Package Information | |
Package Quantity | 1 |
Product Weight | 5.25 lbs [2.4 kg] |
Warranty Information | |
Warranty | Limited Lifetime |
