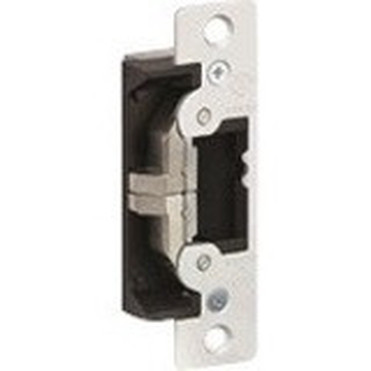

Adams Rite UltraLine 7400 Electric Strike - Fail Secure, Fail Safe - 24 V DC, 16 V DC, 12 V DC - 680.40 kg Holding Strength - Steel (7410-628)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Marketing Information:
Designed for use with Adams Rite deadlatches or cylindrical locksets with 1/2" [12.7 mm] to 5/8" [15.9 mm] latchbolt projection.
For use in aluminum, hollow metal, or wood applications.
Open electrically under 25 lbs [11.3 kg] of preload. Preload is pressure exerted on doors by air conditioning systems, warping or misaligned hardware which can disable common electric strikes.
Function:
This non-handed strike features an ultra-compact design and adjustable stainless steel keepers with over 1,500 lbs [680.4 kg] of holding force in fail secure mode. The strike releases electrically with up to 25 lbs of door preload. Single solenoid operates on 12/16/24 VDC power. Remote electrical control of narrow stile aluminum doors equipped with an Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical lockset with 1/2" [12.7 mm] to 5/8" [15.9 mm] latchbolt projection. Electrical actuation unlocks the keeper, releasing the latchbolt so the door may be opened without operating the latch itself.
Security Configuration: Fail Secure,Fail Safe
Holding Strength: 680.40 kg
Door Handling: Non Handed
Compatible Door Frame Type: Aluminum,Metal,Wood
Features: Latchbolt Strike Monitor (LBSM),Adjustable Bolt Stop,Compact
Input Voltage: 24 V DC,16 V DC,12 V DC
Product Material: Stainless Steel
[custom-specifications]
Specifications | |
Manufacturer | ASSA ABLOY |
Manufacturer Part Number | 7410-628 |
Manufacturer Website Address | http://www.assaabloy.com |
Brand Name | Adams Rite |
Product Line | UltraLine |
Product Series | 7400 |
Product Name | UltraLine 7400 Electric Strike |
Product Type | Electric Strike |
Technical Information | |
Security Configuration | Fail Secure,Fail Safe |
Holding Strength | 680.40 kg |
Door Handling | Non Handed |
Compatible Door Frame Type | Aluminum,Metal,Wood |
Features | Latchbolt Strike Monitor (LBSM),Adjustable Bolt Stop,Compact |
Power Description | |
Input Voltage | 24 V DC,16 V DC,12 V DC |
Physical Characteristics | |
Product Material | Stainless Steel |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Additional-pdf2
Additional-pdf3
