AddOn ADD-FMCP-BX-UST 10/100Base-TX to 100Base-BXU BiDi Media Converter - 1x PoE Port - 20km Single-mode Fiber - 1310nm/1550nm
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Engineered for Fast Ethernet networks, the converter supports a maximum data transfer rate of 100 Mbit/s. It operates with single-mode fiber using 9/125 µm core/cladding specifications and dual wavelengths of 1310 nm and 1550 nm, which are standard for long-haul fiber communications.
The device features two ports: one RJ-45 port for 10/100Base-TX copper connectivity and one ST port for 100Base-BX-U fiber optic connections. The RJ-45 port includes PoE PSE functionality, providing up to 25 W of power for connected devices. Power is supplied via an AC/DC adapter, and the converter consumes 25 W under typical operation.
Relevant factors for this section include Total Number of Ports, Network (RJ-45), DVI, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This media converter extends network segments efficiently by leveraging fiber optic technology, which minimizes signal loss and electromagnetic interference compared to copper cabling. Its bidirectional design over single fiber strand reduces cabling costs and simplifies installation.
Extended Reach
Supports distances up to 20 km, ideal for connecting remote buildings, campuses, or industrial sites where copper Ethernet falls short.
- 20 km maximum distance
- Single-mode fiber for long-haul runs
- Minimal signal degradation
PoE Integration
Includes one PoE PSE port to power networked devices directly, eliminating the need for separate power injectors or outlets at remote locations.
- Delivers power over Ethernet
- Simplifies deployment for PoE devices
- Reduces infrastructure complexity
Reliable Conversion
Provides stable conversion between 10/100Base-TX and 100Base-BX-U standards, ensuring compatibility with existing network equipment and fiber optic cables.
- Bidirectional fiber transmission
- Supports standard wavelengths
- Plug-and-play operation
Deployment / Use Cases
The ADD-FMCP-BX-UST is suited for scenarios where network extension beyond the 100-meter limit of copper Ethernet is necessary. It enables seamless integration of fiber backbones into copper-based LANs, enhancing network scalability and performance.
Common applications include connecting remote surveillance cameras with PoE requirements, linking network switches between buildings in educational or corporate campuses, and integrating fiber runs in industrial automation systems. Its RoHS compliance and fanless operation make it suitable for environmentally sensitive or noise-restricted installations.
Surveillance & Security
Extend network reach to IP cameras in parking lots, perimeter fencing, or remote gates while delivering power via PoE.
Campus Networking
Connect buildings across large sites like universities or business parks using existing single-mode fiber infrastructure.
Physical Profile

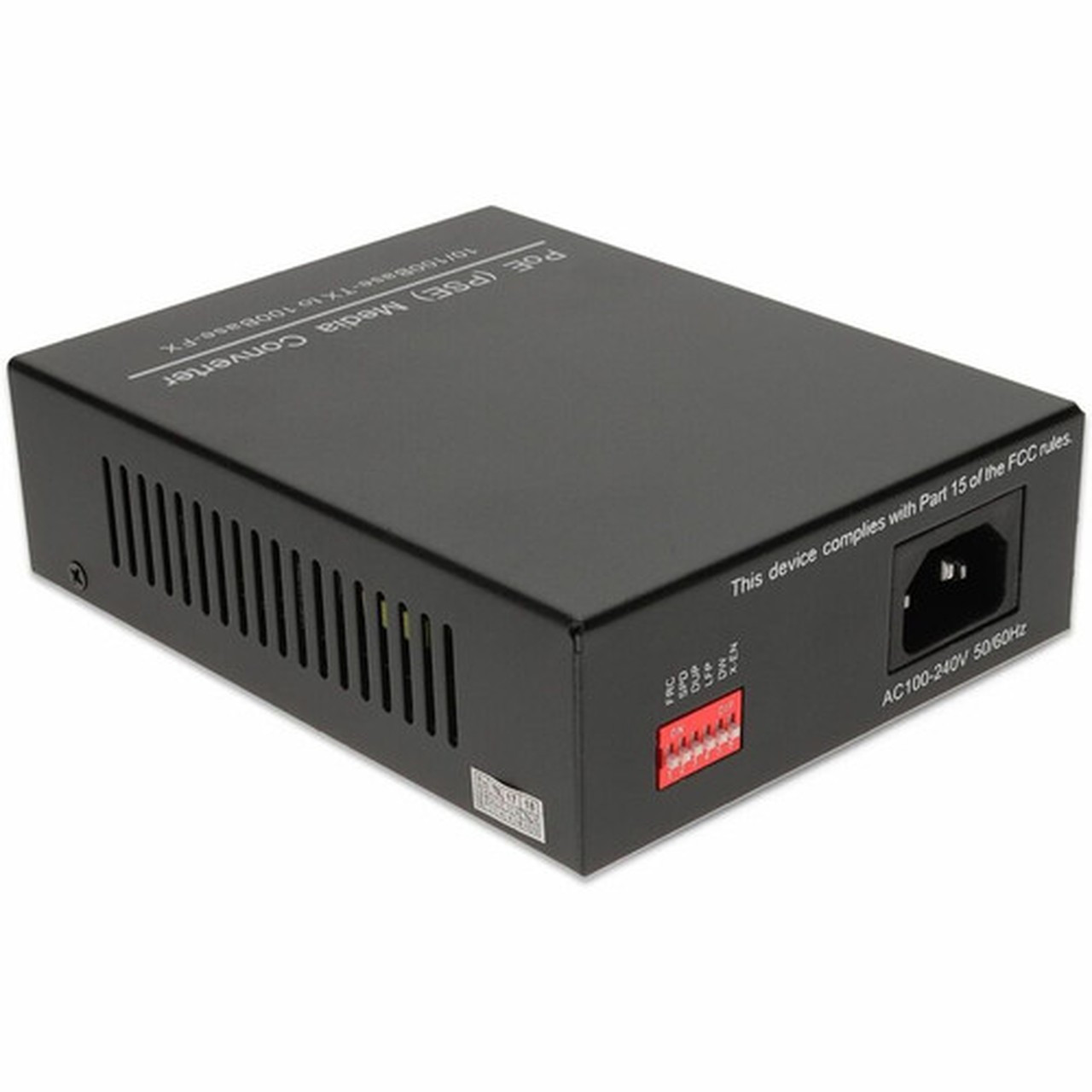

The converter has a compact footprint measuring 5.50" (139.70 mm) in height, 4.50" (114.30 mm) in width, and 1.75" (44.45 mm) in depth, with an approximate weight of 8 oz (226.80 g). Its small form factor allows for flexible mounting on walls, racks, or desks, and the sturdy construction ensures durability in varied operating environments.
- Width
- 4.50" (114.30 mm)
- Depth
- 1.75" (44.45 mm)
- Height
- 5.50" (139.70 mm)
- Weight
- 8 oz (226.80 g)
- Length
- 1310 nm,1550 nm
Highlights
- Converts 10/100Base-TX to 100Base-BX-U for fiber network extension
- Supports single-mode fiber with 1310 nm and 1550 nm wavelengths
- Maximum distance of 20 km (12.43 miles) for long-range connections
- Includes one PoE PSE port for powering connected devices
- Data transfer rate up to 100 Mbit/s for Fast Ethernet networks
- Compact design with dimensions of 5.50" x 4.50" x 1.75"
- Power consumption of 25 W with AC/DC power source
- RoHS compliant and environmentally friendly
- 3-year limited warranty for reliable performance
- Fanless operation for silent deployment
Specifications
| Specifications | |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-FMCP-BX-UST |
| Brand Name | AddOn |
| Product Name | Transceiver/Media Converter |
| Packaged Quantity | 1 |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| DVI | No |
| USB | No |
| Management Port | No |
| Number of PoE (RJ-45) Ports | 1 |
| PoE Port Type | PSE |
| Number of ST Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm,1550 nm |
| Maximum Data Transfer Rate | 100 Mbit/s |
| Maximum Distance Supported | 20 km (12.43 Mile) |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-TX,100Base-BX-U |
| Power Description | |
| Power Source | AC/DC |
| Power Consumption | 25 W |
| Physical Characteristics | |
| Height | 5.50" (139.70 mm) |
| Width | 4.50" (114.30 mm) |
| Depth | 1.75" (44.45 mm) |
| Weight (Approximate) | 8 oz (226.80 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| TAA Compliant | No |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What does this media converter convert between?
It converts 10/100Base-TX Ethernet signals from an RJ-45 copper port to 100Base-BX-U bidirectional signals over an ST fiber optic port. This allows integration of single-mode fiber into copper-based networks for extended reach.
What is the maximum distance supported by this converter?
The converter supports a maximum distance of 20 km (12.43 miles) over single-mode fiber. This makes it suitable for long-haul applications such as connecting buildings across campuses or remote industrial sites.
Does this converter support Power over Ethernet (PoE)?
Yes, it includes one PoE PSE port that can deliver power to compatible devices like IP cameras or wireless access points. The PoE port type is PSE, providing up to 25 W of power, which simplifies deployment by eliminating the need for separate power sources.
What type of fiber optic cable is compatible with this device?
It is compatible with single-mode fiber optic cables that have a core/cladding specification of 9/125 µm. The converter uses bidirectional transmission with wavelengths of 1310 nm and 1550 nm, which are standard for single-mode fiber communications.
What are the power requirements for this media converter?
The converter requires an AC/DC power source and has a power consumption of 25 W. It includes a power adapter for operation, and its efficient design supports continuous use in network environments without overheating.
What warranty comes with this product?
It comes with a 3-year limited warranty, providing coverage for defects in materials and workmanship. This warranty ensures reliable performance and support for professional deployments over an extended period.
