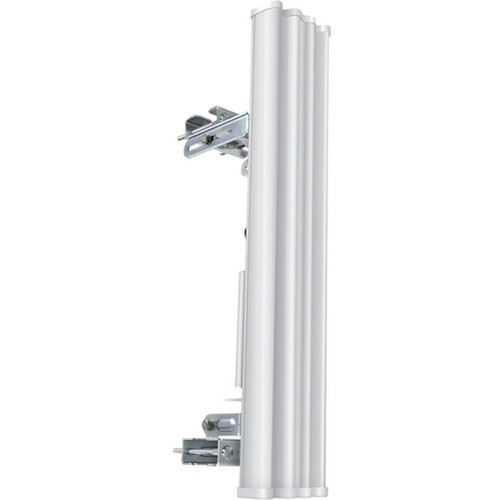

Ubiquiti AM-5G20-90 2 x 2 MIMO BaseStation Sector Antenna - SHF 5.15-5.85 GHz - 20.3 dBi Gain - Universal Pole Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This antenna operates in the SHF (Super High Frequency) band, specifically between 5.15 GHz and 5.85 GHz, making it suitable for high-performance wireless backhaul and point-to-multipoint deployments. The 20.3 dBi gain provides substantial signal amplification, extending coverage and improving link margins.
The sector form factor offers a directional radiation pattern, concentrating energy in a specific arc for efficient area coverage. This design minimizes interference and maximizes signal quality in targeted zones, ideal for base station installations.
Relevant factors for this section include Frequency Band Type, Operating Frequency Range, Antenna Gain (Isotropic), Height. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Ubiquiti AM-5G20-90 combines high gain with robust construction to deliver reliable performance in outdoor and base station environments. Its design prioritizes durability and ease of integration with Ubiquiti's RocketM radio ecosystem.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include High-Gain Performance, Sector Coverage.
High-Gain Performance
With 20.3 dBi isotropic gain, this antenna significantly boosts signal strength, extending range and improving connectivity in challenging wireless scenarios.
- Enhanced link reliability
- Reduced signal loss
- Improved coverage area
Sector Coverage
The sector form factor provides directional coverage, optimizing signal distribution for base station applications and minimizing wasted energy.
- Focused radiation pattern
- Efficient area targeting
- Reduced interference
Deployment / Use Cases
This antenna is engineered for base station deployments, making it ideal for wireless internet service providers (WISPs), enterprise campus networks, and industrial wireless backhaul. Its SHF band operation supports high-capacity links with minimal latency.
Common use cases include point-to-multipoint networks where a central base station serves multiple client devices, outdoor wireless coverage for large areas, and backhaul connections between network segments. The universal pole mount and included bracket facilitate flexible installation on towers, rooftops, or other elevated structures.
Relevant factors for this section include Frequency Band Type, Operating Frequency Range, Antenna Gain (Isotropic), Height. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
WISP Deployments
Internet service providers use this antenna to deliver broadband connectivity to residential and business customers over wireless links.
Enterprise Networks
Large campuses or industrial sites deploy this antenna for reliable wireless coverage across buildings or outdoor areas.
Physical Profile
The antenna measures 27.56" in height, 5.31" in width, and 2.76" in depth, with a weight of approximately 5.90 kg. Its compact sector design and durable construction ensure resilience in outdoor environments, while the included universal pole mount and RocketM bracket support secure installation on various structures.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 27.56" (700 mm), 5.31" (135 mm), 2.76" (70 mm), 5.90 kg. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 5.31" (135 mm)
- Depth
- 2.76" (70 mm)
- Height
- 27.56" (700 mm)
- Weight
- 5.90 kg
What's in the Box
The package includes all necessary components for installation and operation.
Highlights
- SHF band operation from 5.15 GHz to 5.85 GHz
- 20.3 dBi isotropic gain for extended range
- 2x2 MIMO configuration enhances throughput
- Sector form factor for directional coverage
- Compatible with Ubiquiti RocketM radios
- Includes universal pole mount and bracket
- Weatherproof RF jumpers for outdoor use
- Designed for base station deployments
- Compact dimensions: 27.56" H x 5.31" W x 2.76" D
- Weight: 5.90 kg for sturdy construction
Specifications
| Specifications | |
|---|---|
| Manufacturer | Ubiquiti Inc. |
| Manufacturer Part Number | AM-5G20-90 |
| Brand Name | Ubiquiti |
| Product Line | airMAX |
| Product Model | AM-5G20-90 |
| Product Name | 2x2 MIMO BaseStation Sector Antenna |
| Product Type | Antenna |
| Technical Information | |
| Frequency Band Type | SHF |
| Operating Frequency Range | 5.15 GHz to 5.85 GHz |
| Antenna Gain (Isotropic) | 20.3 dBi |
| Physical Characteristics | |
| Height | 27.56" (700 mm) |
| Width | 5.31" (135 mm) |
| Depth | 2.76" (70 mm) |
| Form Factor | Sector |
| Weight (Approximate) | 5.90 kg |
| Miscellaneous | |
| Application/Usage | Base Station |
| Package Contents | 2x2 MIMO BaseStation Sector Antenna Universal Pole Mount RocketM Bracket Weatherproof RF Jumpers |
| Compatibility | Ubiquiti RocketM Radios |
| Country of Origin | China |
FAQ
What frequency band does this Ubiquiti antenna operate in?
This antenna operates in the SHF (Super High Frequency) band, specifically within the range of 5.15 GHz to 5.85 GHz. This band is commonly used for high-performance wireless networking, offering good balance between range and capacity for base station applications.
What is the antenna gain and how does it affect performance?
The antenna has an isotropic gain of 20.3 dBi. This high gain significantly boosts signal strength, extending the effective range and improving link reliability. It helps overcome signal attenuation in outdoor environments, making it suitable for long-distance wireless connections.
What does 2x2 MIMO mean for this antenna?
2x2 MIMO refers to multiple-input multiple-output technology with two transmit and two receive streams. This configuration increases throughput and improves signal reliability by using multiple antennas to handle data streams simultaneously, reducing interference and enhancing overall network performance.
How is this antenna mounted and what accessories are included?
The antenna includes a universal pole mount and RocketM bracket for flexible installation on poles, towers, or other structures. Weatherproof RF jumpers are also provided to ensure reliable connections in outdoor conditions. These accessories support secure deployment in various base station scenarios.
What is a sector antenna and what are its advantages?
A sector antenna has a directional radiation pattern that concentrates signal energy in a specific arc or sector, typically covering 60 to 120 degrees. This design provides efficient coverage for base stations by focusing transmission where needed, reducing interference and improving signal quality compared to omnidirectional antennas.
What Ubiquiti radios is this antenna compatible with?
This antenna is specifically compatible with Ubiquiti RocketM radios. This ensures optimal performance and easy integration within Ubiquiti's airMAX ecosystem, supporting seamless deployment in professional wireless networks without compatibility concerns.
