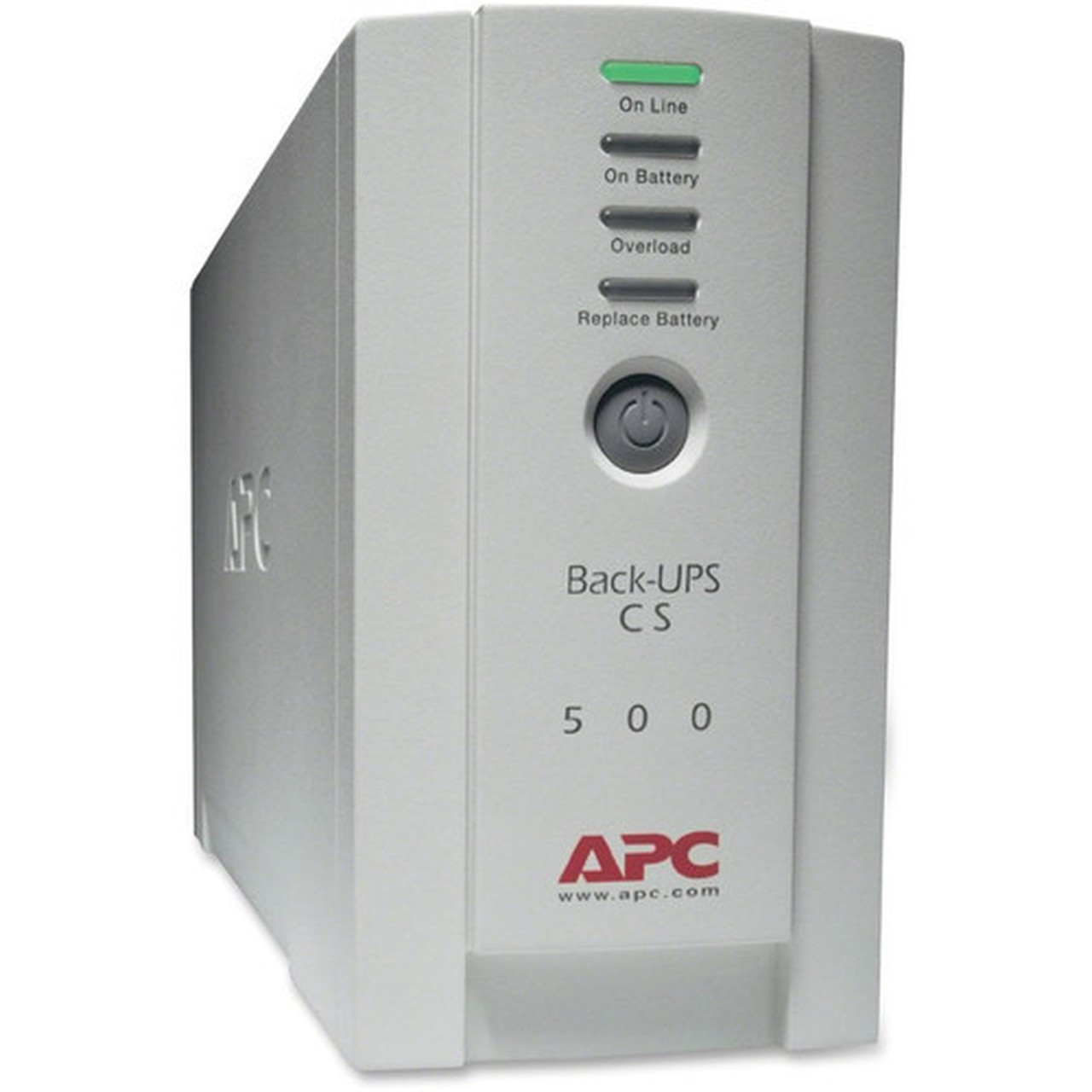

APC by Schneider Electric BK500 Back-UPS CS 500VA Battery Backup - 300W - 6 Outlets - 120V - Tower
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Engineered for single-phase 120V operation, the BK500 provides 500VA and 300W of load capacity, supporting devices during brief outages. Its input current rating is 10A, and the output maintains 120V AC with a surge energy rating of 480 joules for added protection.
The battery system uses spill-proof, maintenance-free lead-acid chemistry, offering a full-load runtime of 3 minutes and a half-load runtime of 15 minutes. Typical recharge time is 8 hours, and the unit operates reliably in temperatures up to 113°F (45°C).
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The BK500 combines essential power protection with user-friendly monitoring, making it a practical choice for non-critical backup needs. Its design prioritizes reliability and ease of use in everyday settings.
Comprehensive Surge Protection
Three surge-protected outlets and RJ-11 dataline protection shield connected equipment from power disturbances, extending device lifespan and reducing downtime.
- 480 J surge energy rating
- Protects against spikes and surges
Intuitive Status Monitoring
LED indicators and audible alarms provide clear notifications for on-battery, low-battery, overload, and site wiring fault conditions, enabling quick response to power events.
- Visual LED display
- Audible alerts for critical states
Maintenance-Free Operation
Spill-proof, maintenance-free batteries reduce upkeep, while the tower design with cord management straps simplifies installation and organization.
- No regular battery maintenance
- Integrated cable management
Deployment / Use Cases
This UPS is ideal for environments where brief power backup can prevent data loss or equipment damage. Its capacity suits devices like desktop computers, routers, modems, and security systems that require uninterrupted operation during short outages.
Common applications include home offices, retail point-of-sale stations, and small network closets. The tower form factor allows placement under desks or on shelves, and the beige color blends with standard office decor.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Home Office Setup
Protect a computer, monitor, and networking gear from power interruptions, ensuring work continuity and safeguarding against surge damage during storms or grid fluctuations.
Small Business Critical Systems
Back up point-of-sale terminals, receipt printers, and network switches to maintain operations during brief outages, preventing transaction errors and connectivity loss.
Physical Profile
The tower design measures 6.50" (165 mm) in height, 3.58" (91 mm) in width, and 11.18" (284 mm) in depth, with an approximate weight of 13.82 lb (6268.65 g). Its compact footprint fits easily in tight spaces, and the beige finish offers a neutral appearance for various settings.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 6.50" (165 mm), 3.58" (91 mm), 11.18" (284 mm), 45 dB(A). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 3.58" (91 mm)
- Depth
- 11.18" (284 mm)
- Height
- 6.50" (165 mm)
- Weight
- 45 dB(A)
- Length
- 6 ft (1.83 m)
What's in the Box
The package includes all necessary components for immediate setup and use.
Highlights
- 500VA/300W power capacity for essential device protection
- 6 outlets with 3 surge-protected NEMA 5-15R receptacles
- 120V input and output with stepped approximated sine wave
- 3-minute full-load and 15-minute half-load runtime
- LED status display and audible alarms for easy monitoring
- Spill-proof, maintenance-free lead-acid battery
- Serial and USB interfaces for management connectivity
- Tower design with beige finish for flexible placement
- Energy Star certified and RoHS compliant
- 3-year UPS warranty with 1-year battery coverage
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | BK500 |
| Brand Name | APC by Schneider Electric |
| Product Line | Back-UPS |
| Product Series | CS |
| Product Name | BK500 120V Backup System |
| Packaged Quantity | 1 Each |
| Product Type | Standby UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15P |
| Receptacle Detail | 3 x NEMA 5-15R,3 x NEMA 5-15R Surge |
| Number of Battery & Surge Outlets | 6 |
| Dataline Protection | RJ-11 |
| Cord Length | 6 ft (1.83 m) |
| Phase | Single Phase |
| Power Description | |
| Load Capacity (VA) | 500 VA |
| Load Capacity (Watt) | 300 W |
| Input Voltage | 120 V |
| Input Current | 10 A |
| Output Voltage | 120 V AC |
| Waveform Type | Stepped Approximated Sine Wave |
| Surge Energy Rating | 480 J |
| Management | |
| Alarm | On Battery,Low Battery,Overload |
| Controls/Indicators | |
| Status Indicators | LED status display with On Line, On Battery, Replace Battery, Site wiring fault and Overload Indicators |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| Battery Information | |
| Battery Characteristics | Spill-proof, Maintenance-free |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 15 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Environmental Conditions | |
| Maximum Operating Temperature | 113°F (45°C) |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Thermal Dissipation | 24 BTU/h |
| Physical Characteristics | |
| Product Color | Beige |
| Height | 6.50" (165 mm) |
| Width | 3.58" (91 mm) |
| Depth | 11.18" (284 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 13.82 lb (6268.65 g) |
| Miscellaneous | |
| Package Contents | BK500 120V Backup System CD with software Cord management straps USB cable User manual |
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | UPS: 36 month(s)|Battery: 12 month(s) |
User Manual
FAQ
What is the power capacity of the APC BK500 Back-UPS CS?
The BK500 provides 500VA and 300W of load capacity, suitable for protecting essential electronics like computers, networking equipment, and peripherals during power interruptions. This capacity supports brief backup runtime to allow safe shutdown or continued operation during short outages.
How many outlets does this UPS have, and are they surge-protected?
It features six NEMA outlets, with three specifically surge-protected to shield connected devices from voltage spikes and surges. The remaining three outlets provide battery backup without surge protection, offering flexible power distribution for different device needs.
What is the runtime on battery power?
At full load (300W), the runtime is approximately 3 minutes, while at half load (150W), it extends to about 15 minutes. These times provide a buffer for short outages, enabling users to save work and shut down systems gracefully or maintain operation briefly.
What type of power output does this UPS deliver?
It delivers a stepped approximated sine wave output at 120V AC. This waveform is compatible with most common electronics, including computers and networking gear, ensuring stable power during battery backup without risking damage to sensitive equipment.
How is the UPS monitored and managed?
Monitoring is facilitated through an LED status display that indicates conditions like on line, on battery, replace battery, site wiring fault, and overload. Audible alarms alert users to low battery or overload states, and serial/USB ports allow connection to management software for enhanced control.
What is the form factor and installation flexibility?
The tower form factor measures 6.50" H x 3.58" W x 11.18" D and weighs 13.82 lb, with a beige finish. Its compact design allows placement under desks, on shelves, or in network closets, and cord management straps help organize cables for a tidy setup.
What power capacity is listed for this UPS?
The listed power specification is 500 VA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 6, which helps buyers understand how many connected devices it can support in its intended deployment.
