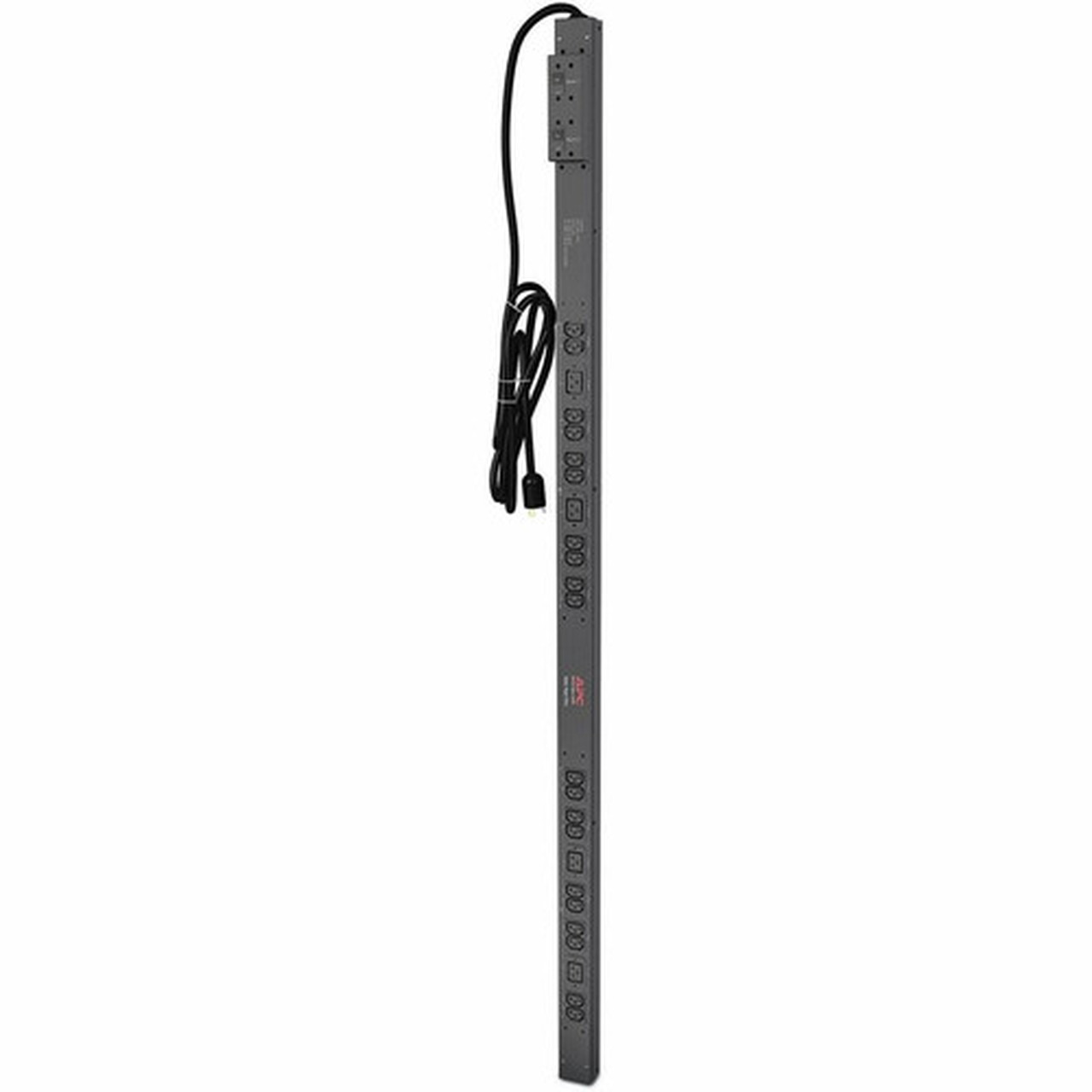

APC by Schneider Electric AP7541 Basic Rack PDU - 4.99kVA - 0U Vertical - 20 x C13 & 4 x C19 Outlets - 30A NEMA L6-30P Input
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Basic PDU operates with input voltages of 200V, 208V, and 230V, with a working range of 208-240V AC. Output delivers stable 200-208V AC power to connected devices. The 4.99kVA rating supports substantial equipment loads while maintaining efficient power distribution.
The outlet mix accommodates diverse equipment: 20 C13 outlets handle standard server and network device power cords, while 4 C19 outlets support higher-power devices like blade servers or large UPS units. The 9.8-foot power cord provides installation flexibility.
Relevant factors for this section include PDU Type, Plug/Connector Type, Receptacle Type, Input Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This PDU combines high-density power distribution with space-saving design for modern rack environments. The vertical 0U installation preserves valuable rack space for equipment while delivering power where needed.
Space-Efficient Design
The ultralow-profile vertical mount occupies zero rack units, allowing full utilization of rack front and rear space for servers, switches, and other equipment.
- 0U rack height
- Vertical side placement
- Minimal footprint
High-Density Power Distribution
With 24 outlets supporting both C13 and C19 connections, this PDU powers multiple devices from a single power source, reducing cable clutter and improving organization.
- 20 C13 outlets
- 4 C19 outlets
- 4.99kVA capacity
Professional Installation Features
Includes toolless mounting brackets and comprehensive installation guide for quick deployment. The 9.8-foot cord reaches power sources in various rack configurations.
- Toolless mounting kit
- Complete installation guide
- Adequate cord length
Deployment / Use Cases
This Basic Rack PDU serves as the power foundation for rack-mounted IT infrastructure across multiple environments. Its 4.99kVA capacity and outlet configuration make it suitable for medium-density server deployments, network equipment racks, and storage array installations.
In data center applications, the vertical 0U design maximizes rack space utilization while providing reliable power distribution. The unit efficiently powers server blades, network switches, and storage devices from a single power feed. For colocation facilities, the standardized NEMA L6-30P input connects to common power distribution systems.
Server Rack Power Distribution
Provides centralized power for rack-mounted servers, with C13 outlets for standard servers and C19 outlets for high-power equipment.
Network Equipment Support
Powers switches, routers, and other networking gear in telecom closets and data center network racks.
Physical Profile
The PDU measures 63.74 inches in height, 2.20 inches in width, and 1.73 inches in depth, designed specifically for vertical rack mounting. The black finish maintains professional appearance while the compact profile fits standard rack side channels. Weighing 12.28 pounds, the unit installs securely with included mounting hardware.
- Width
- 2.20" (56 mm)
- Depth
- 1.73" (44 mm)
- Height
- 0U
- Weight
- 12.28 lb (5570.11 g)
- Length
- 9.8 ft (3 m)
What's in the Box
The package includes all components needed for immediate installation and operation.
Package contents include Basic Rack 4.992kVA PDU Installation guide Rack mounting brackets Toolless mounting kit, Basic Rack 4.992kVA PDU. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 4.99kVA power capacity for rack equipment
- 0U vertical mount saves rack space
- 20 C13 and 4 C19 outlet configuration
- 30A NEMA L6-30P input connector
- 200-208V input and output operation
- Hydraulic-magnetic circuit breaker protection
- 9.8-foot power cord for installation flexibility
- Toolless mounting hardware included
- RoHS compliant construction
- 2-year APC warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP7541 |
| Brand Name | APC by Schneider Electric |
| Product Line | Basic Rack |
| Product Name | Basic Rack 4.992kVA PDU |
| Packaged Quantity | 1 Each |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Basic |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | IEC 60320 C13,IEC 60320 C19 |
| Receptacle Detail | 20 x IEC 60320 C13,4 x IEC 60320 C19 |
| Power Description | |
| Input Voltage | 200 V,208 V,230 V |
| Input Voltage Range | 208 V AC - 240 V AC |
| Output Voltage | 200 V AC,208 V AC |
| Power Rating (VA) | 4.99 kVA |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Placement | Side |
| Rack Height | 0U |
| Cord Length | 9.8 ft (3 m) |
| Height | 63.74" (1619 mm) |
| Width | 2.20" (56 mm) |
| Depth | 1.73" (44 mm) |
| Weight (Approximate) | 12.28 lb (5570.11 g) |
| Miscellaneous | |
| Package Contents | Basic Rack 4.992kVA PDU Installation guide Rack mounting brackets Toolless mounting kit |
| Country of Origin | India |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this PDU?
This APC Basic Rack PDU delivers 4.99 kVA (kilovolt-ampere) power capacity. This rating indicates the maximum apparent power the unit can distribute to connected equipment, supporting substantial loads from servers, switches, and other rack-mounted devices.
How many outlets does this PDU have and what types?
The PDU features 24 total outlets: 20 IEC 60320 C13 outlets for standard equipment power cords and 4 IEC 60320 C19 outlets for higher-power devices. This configuration supports diverse equipment types commonly found in server racks and network installations.
What input voltage does this PDU support?
This PDU accepts input voltages of 200V, 208V, and 230V, with an operating range of 208-240V AC. It delivers output at 200-208V AC, making it compatible with standard North American three-phase power systems commonly used in data centers and server rooms.
How does the 0U rack mounting work?
The 0U designation means this PDU mounts vertically along the side of a standard 19-inch rack without consuming any rack units (U) of front or rear space. It installs using the included mounting brackets in the side channels of the rack, preserving all rack units for equipment installation.
What type of input connector does this PDU use?
This PDU features a NEMA L6-30P input plug, which is a locking 30-amp connector commonly used for three-phase power distribution in North America. The 9.8-foot cord provides adequate reach to power sources in various rack configurations.
What protection features does this PDU include?
The PDU incorporates hydraulic-magnetic circuit breakers that provide overload protection for connected equipment. These breakers offer precise trip characteristics and reliable performance, helping to prevent damage to both the PDU and connected devices during fault conditions.
