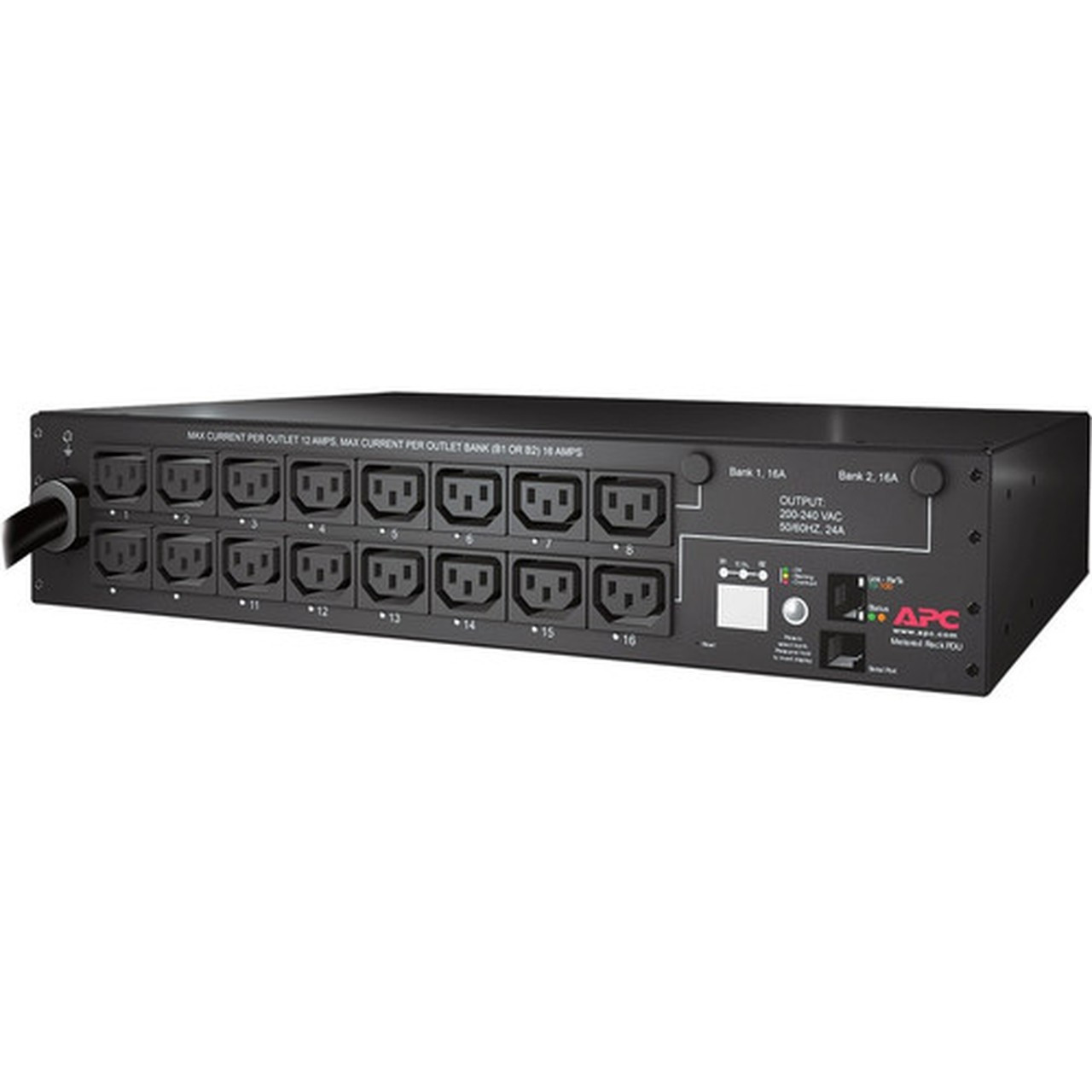

APC by Schneider Electric Rack PDU, Switched, 2U, 30A, 208V, (16)C13 - Switched - NEMA L6-30P - 16 x IEC 60320 C13 - 230 V AC - 2U - (Fleet Network)
APC by Schneider Electric Rack PDU, Switched, 2U, 30A, 208V, (16)C13 - Switched - NEMA L6-30P - 16 x IEC 60320 C13 - 230 V AC - 2U - (AP7911B)
APC by Schneider Electric Rack PDU, Switched, 2U, 30A, 208V, (16)C13 - Switched - NEMA L6-30P - 16 x IEC 60320 C13 - 230 V AC - 2U - (Fleet Network)
APC by Schneider Electric Rack PDU, Switched, 2U, 30A, 208V, (16)C13 - Switched - NEMA L6-30P - 16 x IEC 60320 C13 - 230 V AC - 2U - (AP7911B)

Have questions?

1-844-836-8268

Ask an Experts

  • Canadian Distributor

    Proud Canadian team since 2007

  • IT experts available

    Consulting & Technicians services

  • Configuration services available

    From VoiP phone to Cluster servers

  • Fast Delivery

    Shipped Trough UPS & Purolator

Free Shipping*

Shipping Restrictions

Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.

APC by Schneider Electric Rack PDU, Switched, 2U, 30A, 208V, (16)C13 - Switched - NEMA L6-30P - 16 x IEC 60320 C13 - 230 V AC - 2U - (AP7911B)

(No reviews) Write a Review
$1,438.75
$1,376.20
SKU: AP7911B
UPC: 731304331605
Availability: Toronto
Weight: 20.81 LBS

Pre-order! 🗨️📞

  • Racks enhance the reliability and working of the PDU
  • With switched PDU, remotely monitor, connect or disconnect data center loads
  • #atr : 12091# couples appliances together
    Marketing Information: Explore APC Rack Power Distribution in 3D animation.
    APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power cycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing time delays allow users to define the order in which to power up or down attached equipment to avoid circuit overload. Current metering provides real-time remote monitoring of connected loads with user-defined alarms to warn of potential circuit overloads. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, Command Line Interface, or Telnet Interfaces which are complimented by APC Centralized Management platforms using StruxureWare Data Center Expert, Operations, Capacity, and Energy Efficiency. New AP8000 series Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles.
    Input Receptacles: 1 x NEMA L6-30P
    Output Receptacles: 16 x IEC 60320 C13
    Input Voltage: 230 V AC
    Input Voltage Range: 200 V AC - 230 V AC
    Output Voltage: 208 V AC
    Input Current: 30 A
    Placement: Rack
    Rack Height: 2U
    Height: 3.50" (88.90 mm)
    Width: 17.50" (444.50 mm)
    Depth: 10" (254 mm)
    Weight (Approximate): 6.30 kg
    Package Contents:
    • Rack PDU, Switched, 2U, 30A, 208V, (16)C13
    • Documentation CD
    • Installation Guide
    • Rack Mounting Brackets

    Environmentally Friendly: Yes
    Environmental Certification:
    • RoHS
    • REACH

    Limited Warranty: 2 Year

[custom-specifications]

Specifications
Manufacturer: Schneider Electric SA
Manufacturer Part Number: AP7911B
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Name: Rack PDU, Switched, 2U, 30A, 208V, (16)C13
Product Type: PDU
Technical Information
Input Receptacles: 1 x NEMA L6-30P
Output Receptacles: 16 x IEC 60320 C13
Power Description
Input Voltage: 230 V AC
Input Voltage Range: 200 V AC - 230 V AC
Output Voltage: 208 V AC
Input Current: 30 A
Physical Characteristics
Placement: Rack
Rack Height: 2U
Height: 3.50" (88.90 mm)
Width: 17.50" (444.50 mm)
Depth: 10" (254 mm)
Weight (Approximate): 6.30 kg
Miscellaneous
Package Contents:
  • Rack PDU, Switched, 2U, 30A, 208V, (16)C13
  • Documentation CD
  • Installation Guide
  • Rack Mounting Brackets

Environmentally Friendly: Yes
Environmental Certification:
  • RoHS
  • REACH

Warranty
Limited Warranty: 2 Year
