- Works adequately in situations where the supply is prone to sags and surges
- Prevent critical data loss by staying powered during a blackout with up to 1.98 kW load capacity
- Up to 6.60 minute runtime on full load to preserve critical data from power shortage interruptions
- 1.92 kVA load capacity - work without any interruption during power outages
[custom-specifications]
SpecificationsManufacturer: Schneider Electric SA
Manufacturer Part Number: SMT2200RM2UC
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS

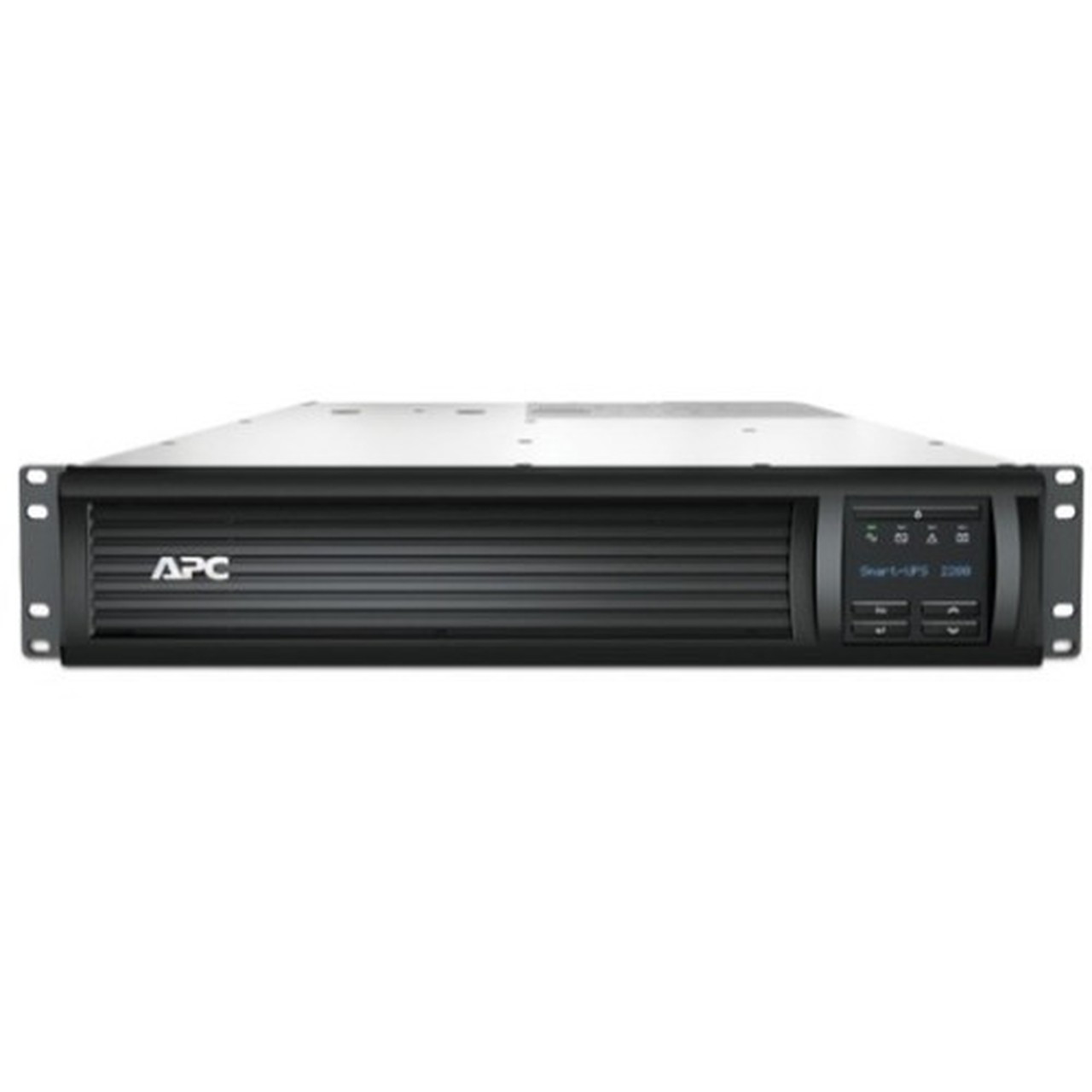

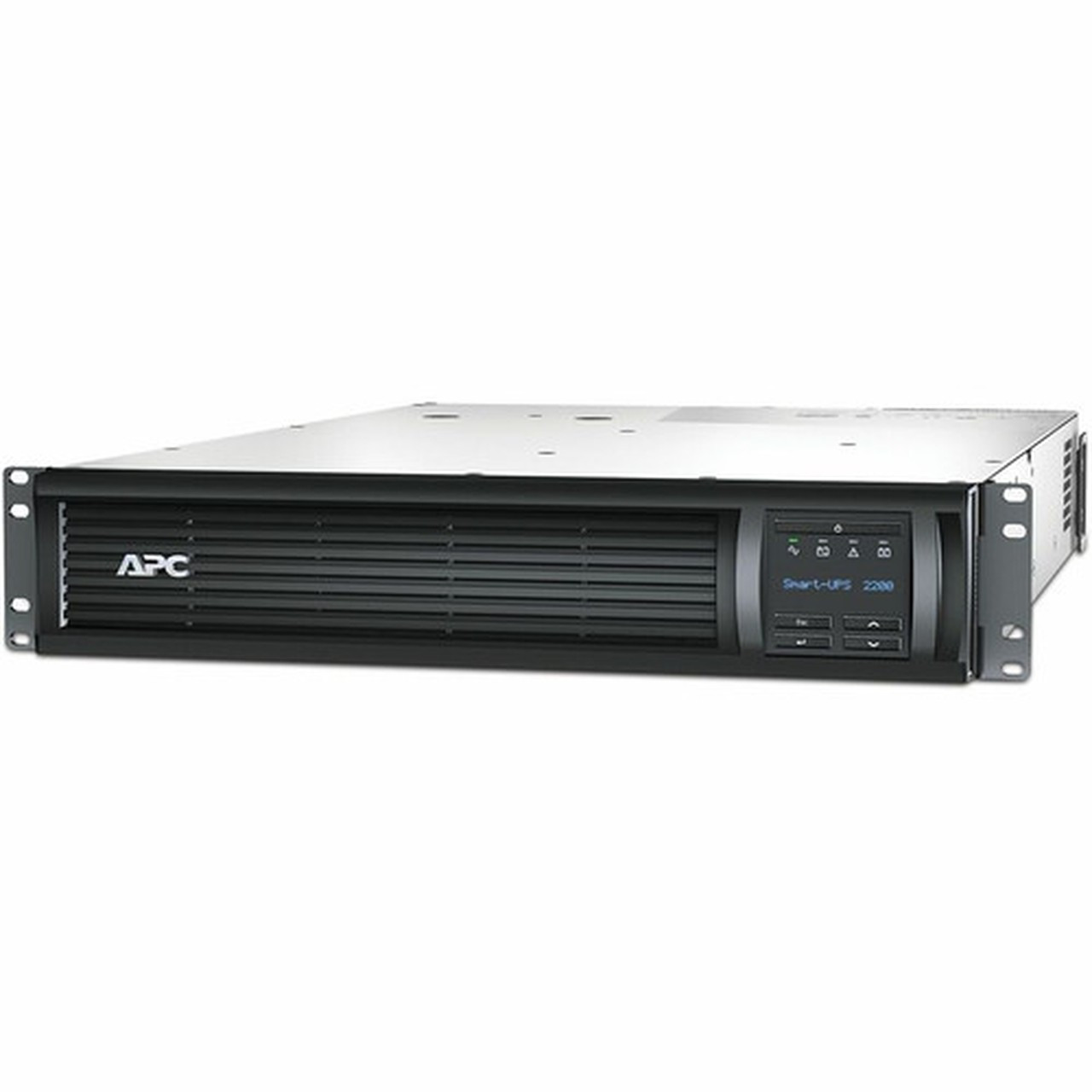

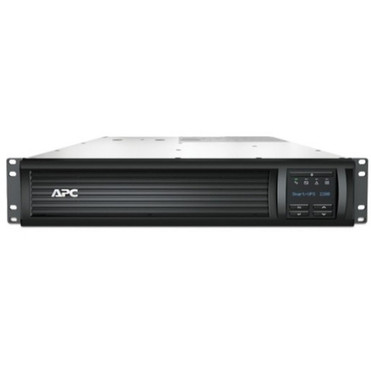

Product Name: Smart-UPS 2200VA LCD RM 2U 120V with SmartConnect
Product Type: Line-interactive UPS
Technical InformationPlug/Connector Type: NEMA 5-20P
Receptacle Type: NEMA 5-20P
Receptacle Detail:

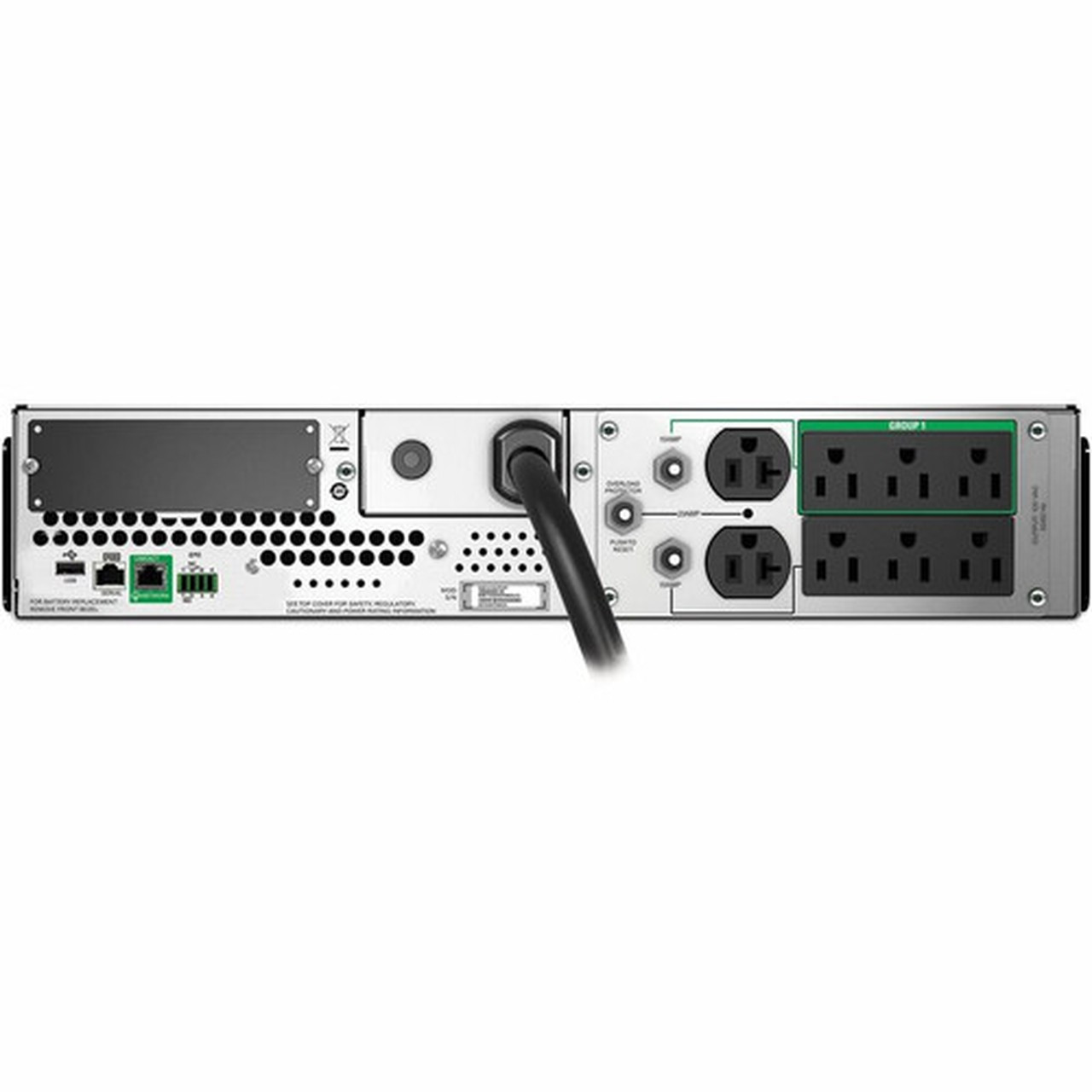

- 2 x NEMA 5-20R
- 6 x NEMA 5-15R
Number of Battery & Surge Outlets: 8
Cord Length: 8 ft
Transfer Time: 10 ms
Power DescriptionLoad Capacity (VA): 1.92 kVA
Load Capacity (Watt): 1.98 kW
Input Voltage: 120 V
Input Voltage Range: 75 V AC - 154 V AC
Output Voltage: 120 V AC
Waveform Type: Sine Wave
Surge Energy Rating: 530 J
ManagementNetwork Management: SmartConnect
Battery InformationBattery Chemistry: Lead Acid
Backup/Run Time (Full Load): 6.60 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 3 Hour
Physical CharacteristicsProduct Color: Black
Height: 3.39" (86 mm)
Width: 17.01" (432 mm)
Depth: 26.89" (683 mm)
Rack Height: 2U

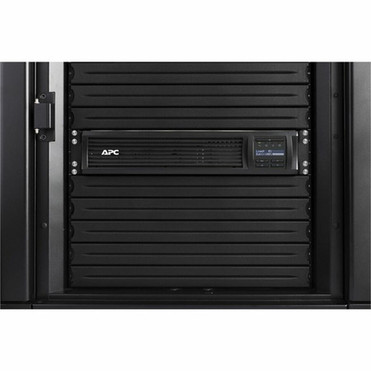

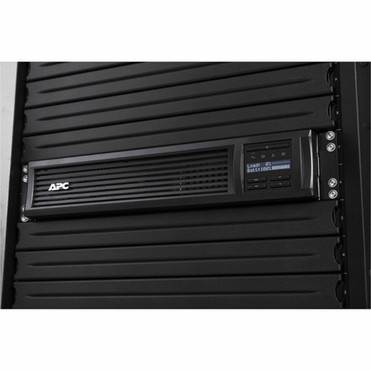

Form Factor: Rack-mountable
Weight (Approximate): 42.31 kg
MiscellaneousPackage Contents:
Smart-UPS 2200VA LCD RM 2U 120V with SmartConnect Rack mounting bracketsRack mounting support railsSmart UPS signalling RS-232 cableUSB cableSoftware Included: Powerchute Serial Edition
Energy Star: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
WarrantyLimited Warranty: 3 Year
Additional Warranty Information: 3 years repair or replace (excluding battery) and 2 years for battery
[/custom-specifications]
