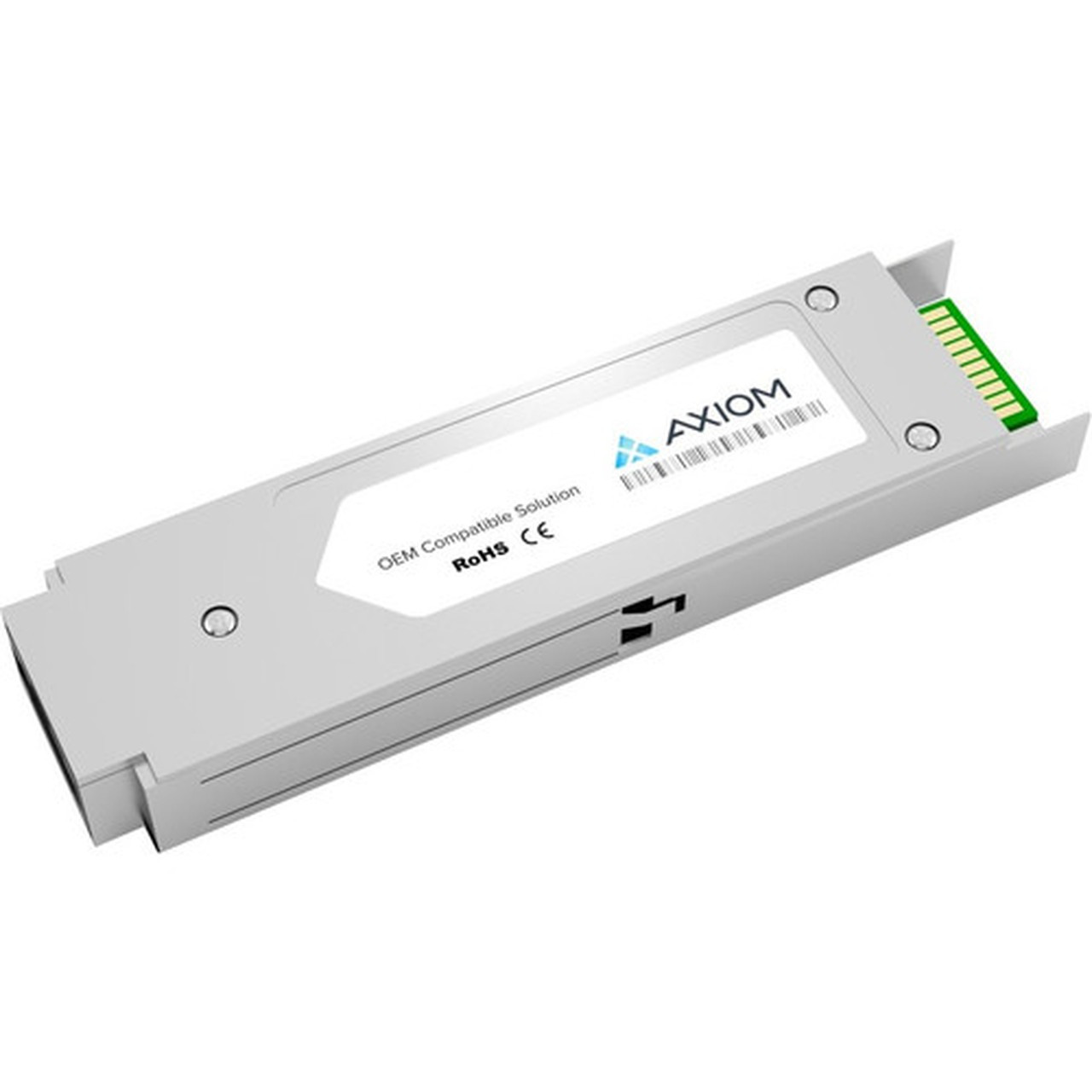

Axiom 10140-BX-D-AX 10GBASE-BXD XFP Transceiver - 10GbE Single-Mode Fiber LC Port for Extreme Networks
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This XFP transceiver operates on 10 Gigabit Ethernet technology, delivering data transfer rates up to 10 Gbps. It supports single-mode fiber optic media, which uses a single wavelength of light to transmit data over extended distances with minimal signal degradation. The 10GBASE-BX-D standard enables bi-directional communication over a single fiber strand.
The module features one LC port configured for 10GBASE-BX-D networking. Its physical dimensions measure 0.33" (8.50 mm) in height, 0.73" (18.50 mm) in width, and 2.80" (71 mm) in depth, with an approximate weight of 1.34 oz (38.10 g). This compact design allows for high-density installations in network equipment.
Key Product Advantages
This transceiver combines high-performance 10GbE connectivity with reliable single-mode fiber support for demanding network environments. Its MSA compliance guarantees compatibility with Extreme Networks equipment and other standards-based infrastructure, reducing deployment risks and ensuring seamless integration.
Long-Distance Performance
Single-mode fiber support enables data transmission over miles of distance, making this transceiver ideal for campus networks, data center interconnects, and metropolitan area network applications where extended reach is required.
- Extended transmission distance
- Minimal signal degradation
- Suitable for metro/campus networks
Standards Compliance
MSA compliance ensures this transceiver meets multi-source agreement specifications for mechanical, electrical, and thermal characteristics, providing reliable interoperability in multi-vendor network environments.
- Guaranteed compatibility
- Reduced deployment complexity
- Industry-standard form factor
Deployment / Use Cases
The Axiom 10140-BX-D-AX XFP transceiver is designed for data networking and optical network applications requiring 10GbE connectivity over fiber optic infrastructure. Its single-mode fiber support makes it particularly valuable for long-distance connections between network switches, routers, and servers.
Common deployment scenarios include connecting network equipment across different buildings in campus environments, establishing high-speed links between data centers, and extending network reach in metropolitan area networks. The transceiver's bi-directional capability allows for efficient fiber utilization in point-to-point connections.
Data Center Interconnect
Connect switches and routers between data centers with high-speed 10GbE links over single-mode fiber, supporting critical application traffic and storage replication with reliable performance.
- 10 Gbps throughput
- Long-distance capability
- Reliable data transmission
Campus Network Backbone
Establish backbone connections between network distribution points across campus facilities, delivering high-bandwidth connectivity for user access, wireless backhaul, and network services.
- Extended reach between buildings
- High-bandwidth backbone
- Support for converged networks
Physical Profile
The transceiver features a compact XFP form factor measuring 0.33" (8.50 mm) in height, 0.73" (18.50 mm) in width, and 2.80" (71 mm) in depth. With an approximate weight of 1.34 oz (38.10 g), this lightweight design enables high-density installations in network switches and routers without excessive space consumption or thermal impact.
- Width
- 0.73" (18.50 mm)
- Depth
- 2.80" (71 mm)
- Height
- 0.33" (8.50 mm)
- Weight
- 1.34 oz (38.10 g)
Highlights
- 10 Gigabit Ethernet technology delivers up to 10 Gbps data transfer rates
- Single-mode fiber support enables long-distance transmission over miles
- LC connector provides secure fiber optic interface
- MSA compliant for guaranteed compatibility with Extreme Networks equipment
- Bi-directional 10GBASE-BX-D operation over single fiber strand
- Compact XFP form factor for high-density installations
- Environmentally friendly design and manufacturing
- Ideal for data networking and optical network applications
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | 10140-BX-D-AX |
| Brand Name | Axiom |
| Product Model | 10140-BX-D-AX |
| Product Name | 10GBASE-BXD XFP Transceiver for Extreme - 10140-BX-D |
| Product Type | XFP |
| Technical Information | |
| Application/Usage | Data Networking,Optical Network |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC 10GBASE-BX-D Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | 10 Gigabit Ethernet |
| Physical Characteristics | |
| Height | 0.33" (8.50 mm) |
| Width | 0.73" (18.50 mm) |
| Depth | 2.80" (71 mm) |
| Weight (Approximate) | 1.34 oz (38.10 g) |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Environmentally Friendly | Yes |
FAQ
What type of fiber does this XFP transceiver support?
This transceiver supports single-mode fiber optic media. Single-mode fiber uses a single wavelength of light to transmit data, enabling longer distance transmission with minimal signal degradation compared to multimode fiber. This makes it suitable for campus networks, data center interconnects, and other applications requiring extended reach.
Is this transceiver compatible with Extreme Networks equipment?
Yes, this Axiom 10140-BX-D-AX XFP transceiver is specifically designed for Extreme Networks infrastructure and is 100% Extreme compatible. It is also MSA compliant, which ensures interoperability with other standards-based network equipment from various manufacturers that support the XFP form factor and 10GBASE-BX-D standard.
What is the data transfer rate of this transceiver?
This transceiver operates on 10 Gigabit Ethernet technology, delivering data transfer rates up to 10 Gbps. This high-speed connectivity supports bandwidth-intensive applications, data center interconnects, network backbone links, and other scenarios requiring substantial throughput over fiber optic infrastructure.
What does 10GBASE-BX-D mean for this transceiver?
10GBASE-BX-D refers to the Ethernet standard this transceiver implements for bi-directional communication over a single fiber strand. The 'BX' indicates bi-directional operation, while 'D' specifies the downstream wavelength. This technology allows for efficient fiber utilization by transmitting and receiving data on different wavelengths over the same fiber, reducing infrastructure requirements.
