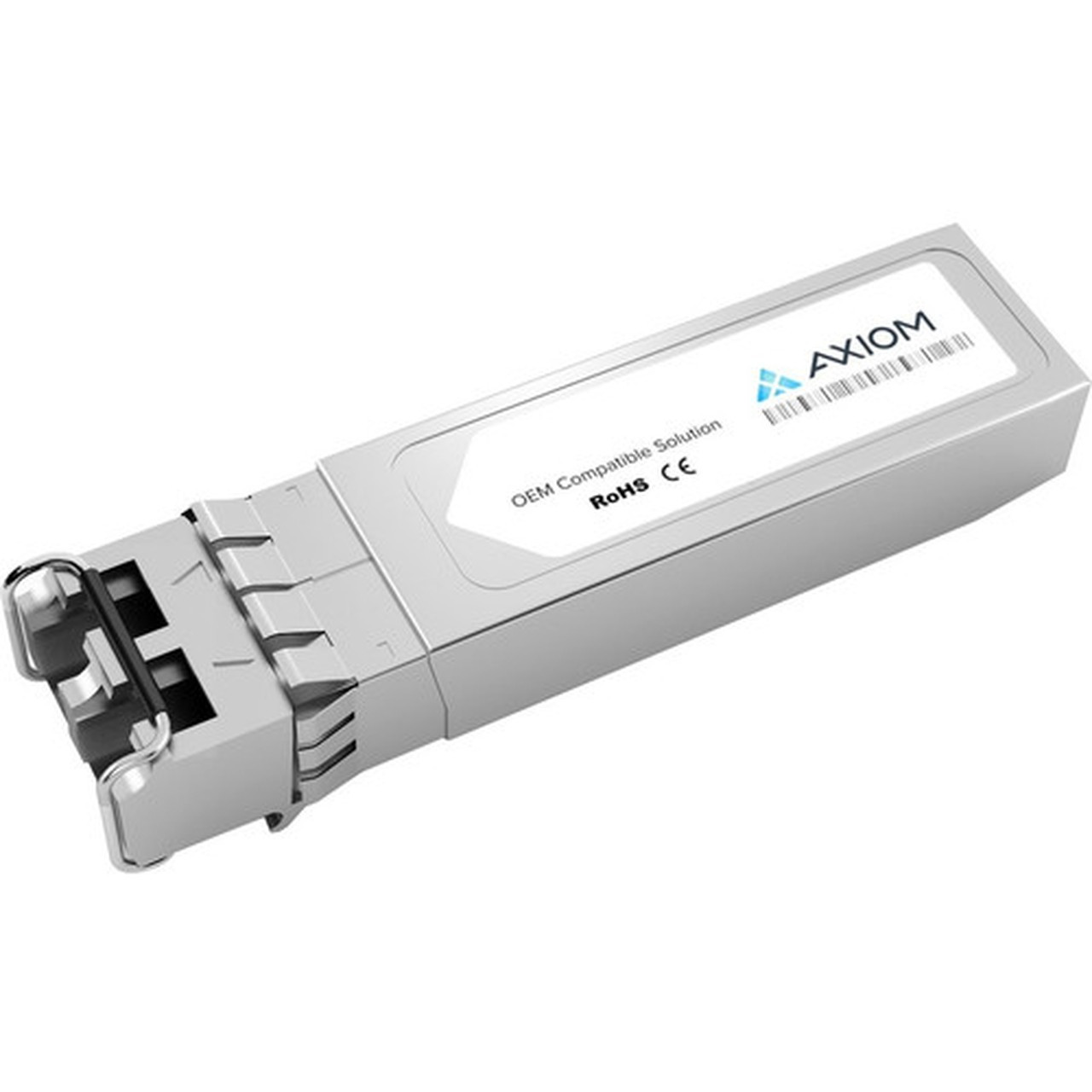

AXIOM MEMORY 10302-AX Axiom 10GBASE-LR SFP+ Transceiver for Extreme - 10GbE Single-Mode LC MSA Compliant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This transceiver operates on the 10GBASE-LR standard, delivering data rates up to 10 Gbps over single-mode fiber optic cables. It uses an LC duplex connector interface, which is widely adopted for its secure connection and low insertion loss in fiber optic networks. The module supports long-reach transmission typical of LR specifications, making it suitable for connections between buildings or across campus networks.
The 10 Gigabit Ethernet technology ensures backward compatibility with lower-speed Ethernet standards while providing the bandwidth needed for high-demand applications like server connectivity, storage area networks, and backbone links. The transceiver's design includes built-in digital diagnostics monitoring (DDM) capabilities for real-time performance tracking and troubleshooting.
Key Product Advantages
The Axiom 10302-AX transceiver offers several advantages for network deployments requiring reliable 10GbE fiber connectivity. Its MSA compliance guarantees broad compatibility with Extreme hardware, reducing integration risks and simplifying procurement. The single-mode fiber support enables long-distance transmission with minimal signal degradation, ideal for expanding network reach without sacrificing speed.
Extreme Compatibility
Specifically validated for Extreme networking equipment, ensuring plug-and-play operation and reliable performance in Extreme environments.
- Tested for Extreme switches/routers
- Guaranteed interoperability
- No firmware tweaks required
High-Speed Fiber Performance
Delivers full 10 Gbps throughput over single-mode fiber, supporting bandwidth-intensive applications and future network growth.
- 10 Gigabit Ethernet data rate
- Low-latency transmission
- Scalable for network upgrades
Deployment / Use Cases
This transceiver is ideal for upgrading existing Extreme network infrastructure to 10GbE speeds without replacing core hardware. Common deployment scenarios include connecting switches in data center racks, linking network segments across buildings, or establishing high-speed backbone links between distribution layers.
In enterprise environments, the module supports applications such as virtualization clusters, SAN extensions, and high-performance computing networks. Its single-mode fiber compatibility makes it suitable for long-distance connections where copper Ethernet would be impractical, while the SFP+ form factor allows for dense port configurations in modular chassis.
Data Center Interconnects
Connect top-of-rack switches to aggregation layers or link geographically separate data centers over single-mode fiber.
- Server-to-switch connectivity
- Cross-building links
- Disaster recovery setups
Campus Network Backbone
Extend 10GbE connectivity across large campuses or between multiple buildings, maintaining high bandwidth for user access and services.
- Building-to-building links
- Network core upgrades
- Future-proof infrastructure
Physical Profile
The transceiver features a compact SFP+ form factor measuring 0.53" wide by 0.49" high by 2.21" deep, with a lightweight design at approximately 0.59 ounces. This small footprint allows high-density installations in switch ports without obstructing adjacent modules. The module is constructed with RoHS-compliant materials, meeting environmental standards for hazardous substance restrictions while ensuring reliable operation in varied temperature conditions.
- Width
- 0.53" (13.40 mm)
- Depth
- 2.21" (56.10 mm)
- Height
- 0.49" (12.50 mm)
- Weight
- 0.59 oz (16.78 g)
Highlights
- 10 Gigabit Ethernet technology for up to 10 Gbps data transfer
- Single-mode fiber optic compatibility for long-distance transmission
- LC duplex connector interface for secure fiber connections
- MSA compliant for broad interoperability with Extreme equipment
- Hot-swappable SFP+ form factor for easy installation and replacement
- RoHS environmental compliance for reduced hazardous substances
- Compact dimensions ideal for high-density port configurations
- Designed for data networking and optical network applications
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | 10302-AX |
| Brand Name | Axiom |
| Product Model | 10302-AX |
| Product Name | 10GBASE-LR SFP+ Transceiver for Extreme - 10302 |
| Product Type | SFP+ |
| Technical Information | |
| Application/Usage | Data Networking,Optical Network |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC 10GBASE-LR Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | 10 Gigabit Ethernet |
| Physical Characteristics | |
| Height | 0.49" (12.50 mm) |
| Width | 0.53" (13.40 mm) |
| Depth | 2.21" (56.10 mm) |
| Weight (Approximate) | 0.59 oz (16.78 g) |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
FAQ
What is the maximum data rate supported by this SFP+ transceiver?
This transceiver supports the 10GBASE-LR standard, delivering data rates up to 10 gigabits per second (10 Gbps) over single-mode fiber. It utilizes 10 Gigabit Ethernet technology to provide high-speed connectivity for bandwidth-intensive applications like server links, storage networks, and backbone infrastructure.
What type of fiber optic cable is compatible with this module?
The module is compatible with single-mode fiber optic cables using LC duplex connectors. Single-mode fiber supports long-distance transmission with a single wavelength of light, making it ideal for connections spanning miles between network devices or across campus environments.
Is this transceiver compatible with Extreme networking equipment?
Yes, the Axiom 10302-AX is specifically designed and tested for compatibility with Extreme switches and routers. Its MSA-compliant design ensures interoperability, allowing plug-and-play operation in Extreme network environments without requiring additional configuration or firmware updates.
What does MSA compliance mean for this transceiver?
MSA (Multi-Source Agreement) compliance means the transceiver meets industry-standard specifications for form factor, electrical interface, and optical characteristics. This ensures broad interoperability with networking equipment from various manufacturers that adhere to MSA standards, reducing compatibility risks and simplifying procurement.
