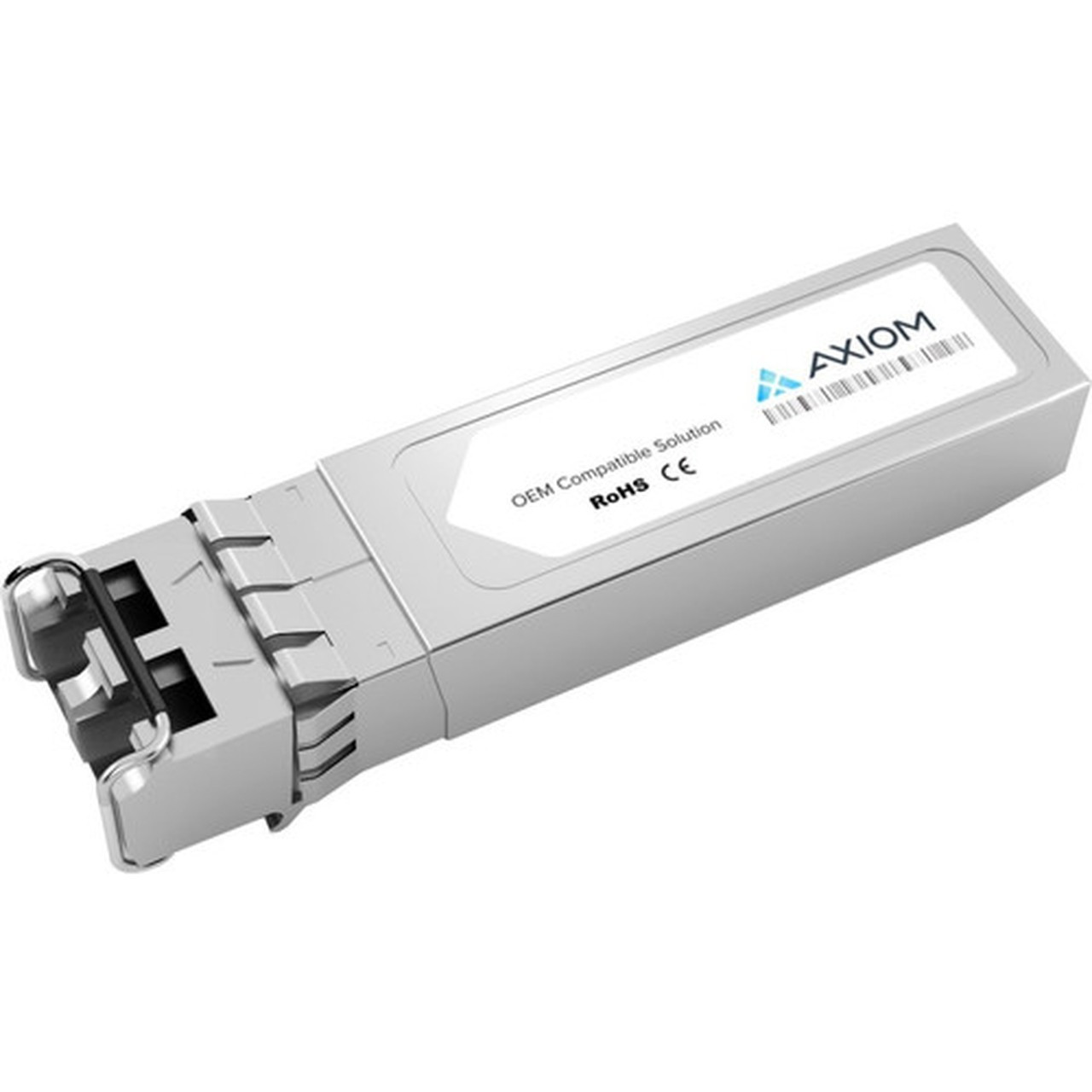

AXIOM MEMORY JD093B-AX Axiom 10GBASE-LRM SFP+ Transceiver for HP - LC Multi-mode Fiber - 10GbE - MSA Compliant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Engineered for 10 Gigabit Ethernet applications, the JD093B-AX transceiver operates at data rates up to 10 Gbps, providing the bandwidth needed for demanding network traffic. It uses the 10GBASE-LRM standard for extended reach over multi-mode fiber, typically supporting distances suitable for intra-building connections.
The module interfaces via a single LC port, which is widely used in fiber optic networks for its reliable performance and ease of use. It is designed for optical fiber media, specifically multi-mode fiber, which is cost-effective for short-range applications.
Key Product Advantages
This transceiver offers several advantages for network upgrades and expansions. Its compatibility with HP equipment ensures seamless integration, while the 10 Gbps speed enhances network performance for data-intensive tasks.
High-Speed Connectivity
Supports 10 Gigabit Ethernet for fast data transfer, reducing bottlenecks in server-to-switch or switch-to-switch links.
- Up to 10 Gbps throughput
- Ideal for bandwidth-heavy applications
Fiber Optic Reliability
Uses multi-mode fiber optic technology for stable, low-latency connections over short distances, with immunity to electromagnetic interference.
- LC connector for secure attachment
- Suitable for data centers and enterprise networks
Deployment / Use Cases
The JD093B-AX transceiver is well-suited for various networking scenarios that require high-speed, short-distance fiber optic links. It is commonly deployed in data centers to connect servers to top-of-rack switches, enabling efficient data flow in virtualized environments.
In enterprise settings, it can be used for backbone connections between network switches within a building, supporting applications like video conferencing, large file transfers, and database access. Its multi-mode fiber support makes it a practical choice for campus networks where cost-effective cabling is prioritized.
Data Center Interconnects
Connect servers and storage devices to network switches over multi-mode fiber, optimizing performance for cloud and virtualization workloads.
Enterprise Network Backbones
Establish high-speed links between switches in office buildings, supporting bandwidth-demanding applications and improving overall network efficiency.
Physical Profile
The transceiver has a compact design with dimensions of 0.49 inches in height, 0.53 inches in width, and 2.21 inches in depth, and weighs approximately 0.59 ounces. This small form factor allows for high-density installations in networking equipment without occupying excessive space.
- Width
- 0.53" (13.40 mm)
- Depth
- 2.21" (56.10 mm)
- Height
- 0.49" (12.50 mm)
- Weight
- 0.59 oz (16.78 g)
Highlights
- 10 Gigabit Ethernet technology for up to 10 Gbps data transfer
- LC connector compatible with standard fiber optic cabling
- Multi-mode fiber support for short-distance applications
- MSA compliant for interoperability with networking hardware
- RoHS certified for environmental safety
- Compact SFP+ form factor for easy installation
- Designed for HP networking equipment compatibility
- Ideal for data center and enterprise network deployments
Specifications
| Specifications | |
|---|---|
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | JD093B-AX |
| Brand Name | Axiom |
| Product Model | JD093B-AX |
| Product Name | 10GBASE-LRM SFP+ Transceiver for HP - JD093B |
| Product Type | SFP+ |
| Technical Information | |
| Application/Usage | Data Networking,Optical Network |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC 10GBASE-LRM Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Ethernet Technology | 10 Gigabit Ethernet |
| Physical Characteristics | |
| Height | 0.49" (12.50 mm) |
| Width | 0.53" (13.40 mm) |
| Depth | 2.21" (56.10 mm) |
| Weight (Approximate) | 0.59 oz (16.78 g) |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
FAQ
What type of fiber optic cable does this transceiver support?
This transceiver supports multi-mode fiber optic cables. Multi-mode fiber is typically used for short-distance connections, such as within a building or data center, and is cost-effective for high-speed applications up to 10 Gbps. It requires an LC connector for proper interface.
Is this transceiver compatible with HP networking equipment?
Yes, the Axiom JD093B-AX transceiver is designed for compatibility with HP networking equipment. It is MSA compliant, which ensures it meets industry standards for interoperability, making it suitable for use in HP switches, routers, or servers that support SFP+ modules with 10GBASE-LRM functionality.
What is the maximum data transfer rate of this SFP+ transceiver?
This transceiver supports a maximum data transfer rate of 10 Gbps using 10 Gigabit Ethernet technology. It is based on the 10GBASE-LRM standard, which is optimized for extended reach over multi-mode fiber, providing high-speed connectivity for network backbone or server links.
