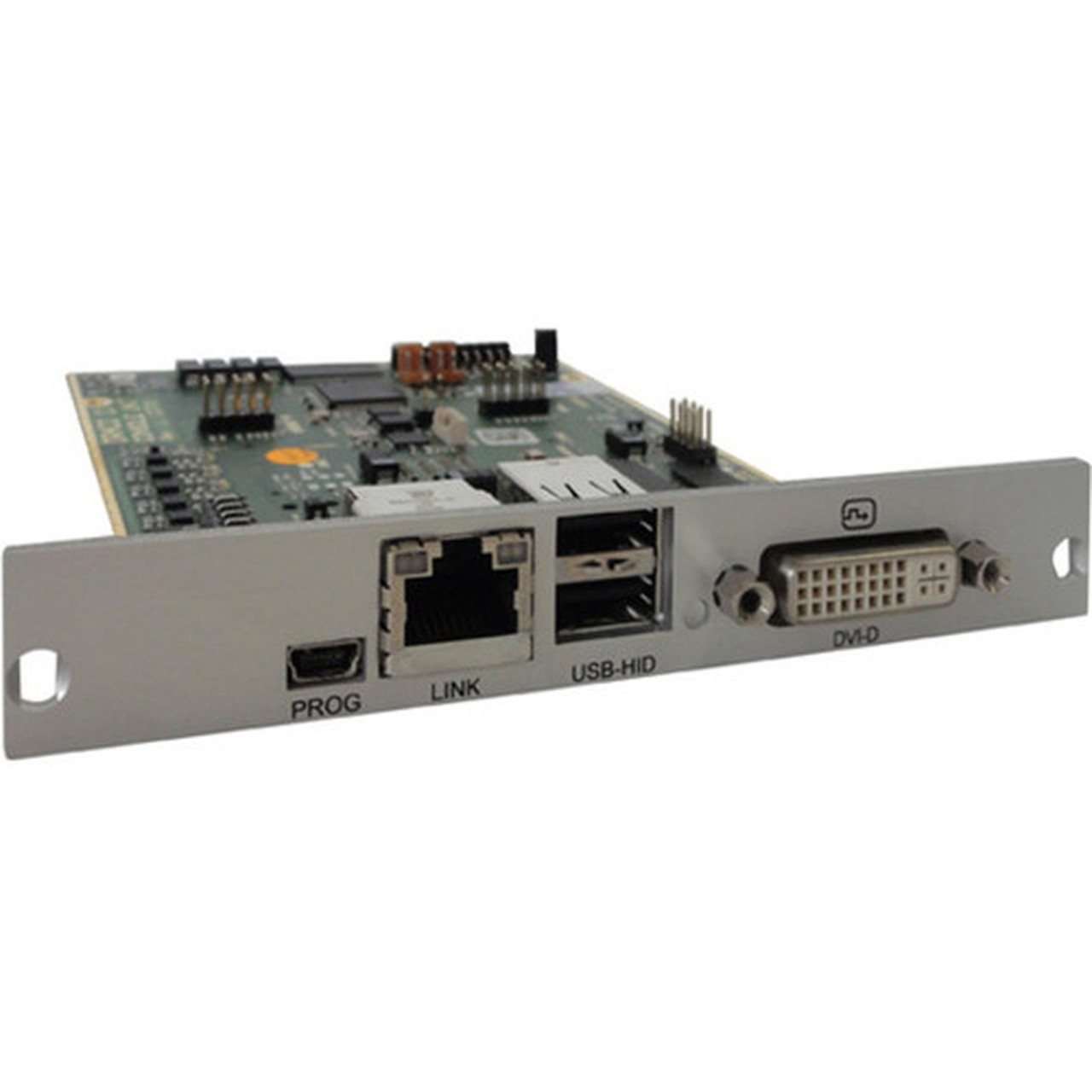

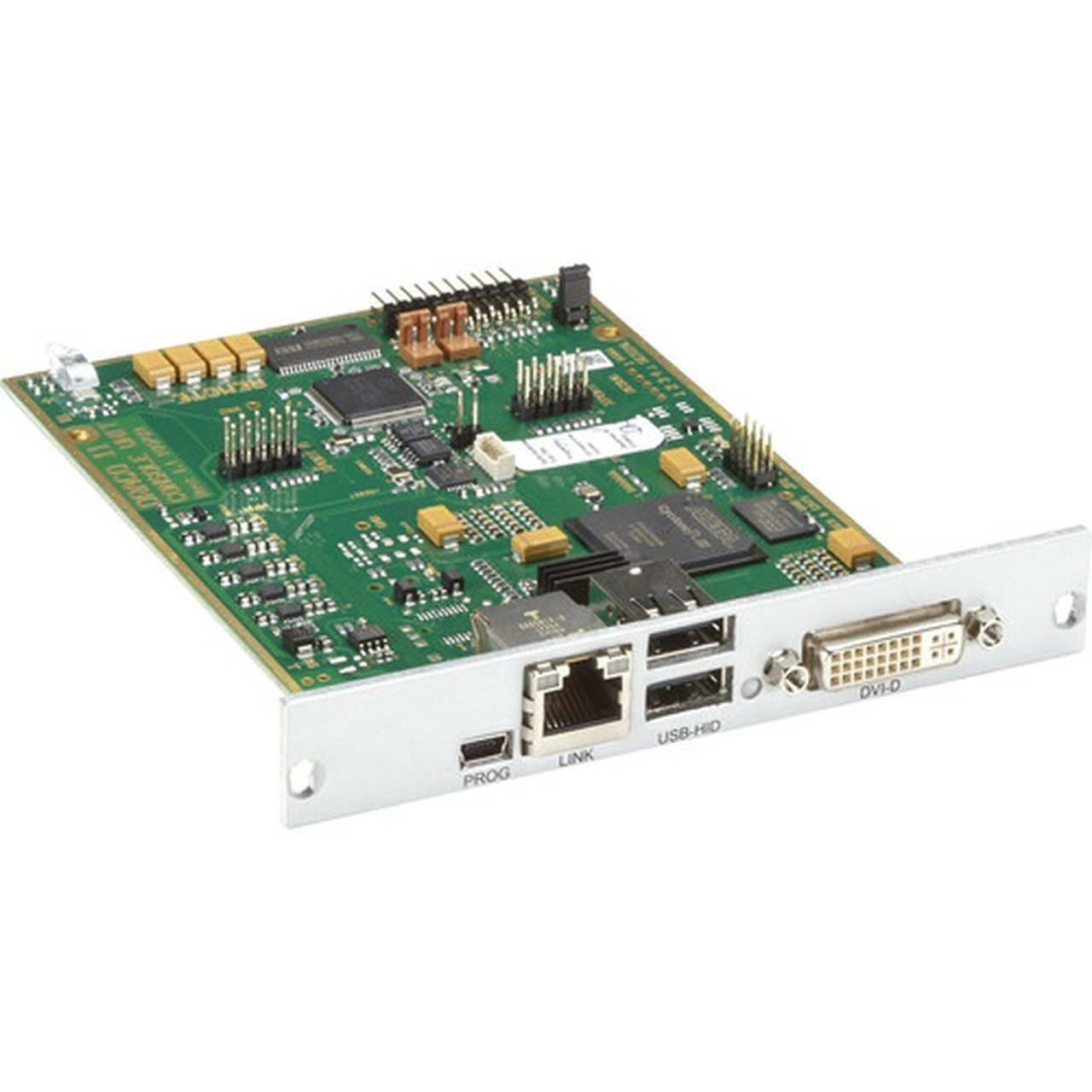

Black Box ACX1MR-DHID-C KVM Console Plug-in Card - 1x RJ-45 - 2x USB - 1x DVI-D
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This KVM console plug-in card features dedicated connectivity ports for comprehensive system management. The single RJ-45 network port establishes wired Ethernet connectivity for remote access over CATx cabling, supporting standard network infrastructure deployments. Two USB ports provide interface compatibility with HID keyboards and mice, enabling full peripheral control from the console location.
The DVI-D video port delivers high-quality display output with support for resolutions up to 2048 x 1152 at 60 Hz refresh rates. This ensures crisp visual feedback during system administration tasks, from basic configuration to detailed monitoring interfaces. The plug-in card design optimizes space utilization in rack environments while maintaining reliable wired connectivity without wireless interference concerns.
Relevant factors for this section include Connectivity Technology, Network (RJ-45), USB, DVI. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ACX1MR-DHID-C combines essential KVM functionality with a compact form factor ideal for space-constrained environments. The dedicated port configuration ensures reliable connections for network, peripheral, and display requirements without unnecessary complexity or compatibility concerns.
High-Resolution Video Support
The DVI-D interface delivers video resolutions up to 2048 x 1152 at 60 Hz, providing clear visual feedback for detailed system administration and monitoring tasks across various display configurations.
- 2048 x 1152 maximum resolution
- 60 Hz refresh rate
- DVI-D digital interface
Comprehensive Peripheral Support
Dual USB ports with HID compatibility ensure seamless integration with standard keyboards and mice, while the RJ-45 network port enables remote management over existing CATx infrastructure.
- USB HID keyboard/mouse support
- RJ-45 network connectivity
- Wired reliability
Deployment / Use Cases

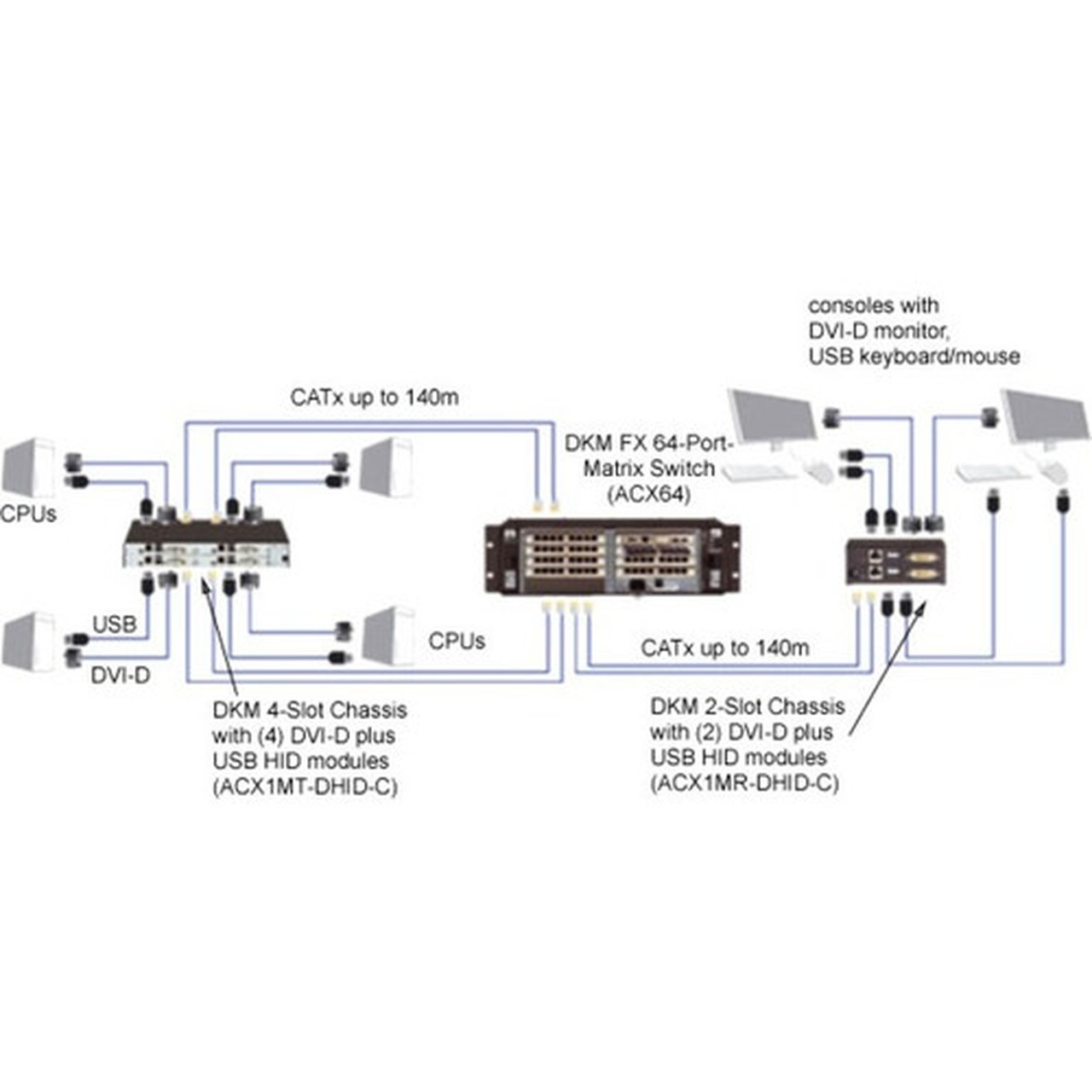

This KVM console plug-in card serves as a dedicated remote management solution for IT professionals requiring centralized control of server infrastructure. The compact form factor makes it particularly suitable for rack-mounted environments where space optimization is critical, while the wired connectivity ensures stable operation in electrically noisy data center conditions.
Primary deployment scenarios include data center server management, network operations centers, and remote office IT infrastructure. The solution enables administrators to perform system configuration, troubleshooting, and maintenance tasks from a centralized console location, reducing the need for physical access to individual servers and improving operational efficiency.
Data Center Management
Integrate into server racks for centralized control of multiple systems, enabling efficient administration without direct physical access to each server unit.
Remote Office Support
Deploy in branch locations to provide IT staff with remote management capabilities, reducing travel requirements for routine maintenance and configuration tasks.
Highlights
- DVI-D video support up to 2048 x 1152 resolution at 60 Hz
- USB HID compatibility for keyboards and mice
- Single RJ-45 network port for wired connectivity
- Plug-in card form factor for space-efficient installation
- Environmentally friendly design and manufacturing
- German engineering and quality construction
- 2-year limited warranty for reliability assurance
- CATx cable compatibility for standard network infrastructure
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | ACX1MR-DHID-C |
| Brand Name | Black Box |
| Product Name | KVM Console |
| Product Type | KVM Console |
| Technical Information | |
| Connectivity Technology | Wired |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| DVI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of USB Ports | 2 |
| Number of DVI Ports | 1 |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Country of Origin | Germany |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
How many USB ports are available and what do they support?
This KVM console features two USB ports that support USB HID (Human Interface Device) compatibility. These ports work with standard keyboards and mice, allowing full peripheral control from the console location. The wired USB connectivity ensures reliable operation without the interference concerns sometimes associated with wireless peripherals in dense IT environments.
What type of network connectivity does this console provide?
The console includes one RJ-45 network port for wired Ethernet connectivity. This port supports standard CATx cabling infrastructure, enabling remote access and management over existing network wiring. The wired approach provides stable, interference-resistant connections ideal for data center and server room environments where reliability is critical.
What is the form factor and how is it installed?
This KVM console utilizes a plug-in card form factor designed for integration into compatible rack-mounted systems or enclosures. The compact design optimizes space utilization in server racks and data center environments. Installation involves inserting the card into an appropriate slot or enclosure, with connectivity established through the front-panel ports for network, USB, and DVI connections.
Is this product environmentally friendly?
Yes, the Black Box ACX1MR-DHID-C is designed as an environmentally friendly product. It complies with relevant environmental standards and regulations. The product is manufactured in Germany, where stringent environmental and quality control standards apply throughout the production process, ensuring responsible manufacturing practices.
What warranty coverage is provided with this KVM console?
This KVM console plug-in card comes with a 2-year limited warranty from Black Box. This warranty covers manufacturing defects and ensures reliable operation for critical infrastructure deployments. The warranty period provides assurance for IT professionals deploying this solution in data center, server room, and remote management applications where uptime is essential.
What connectivity or interface options are available?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
