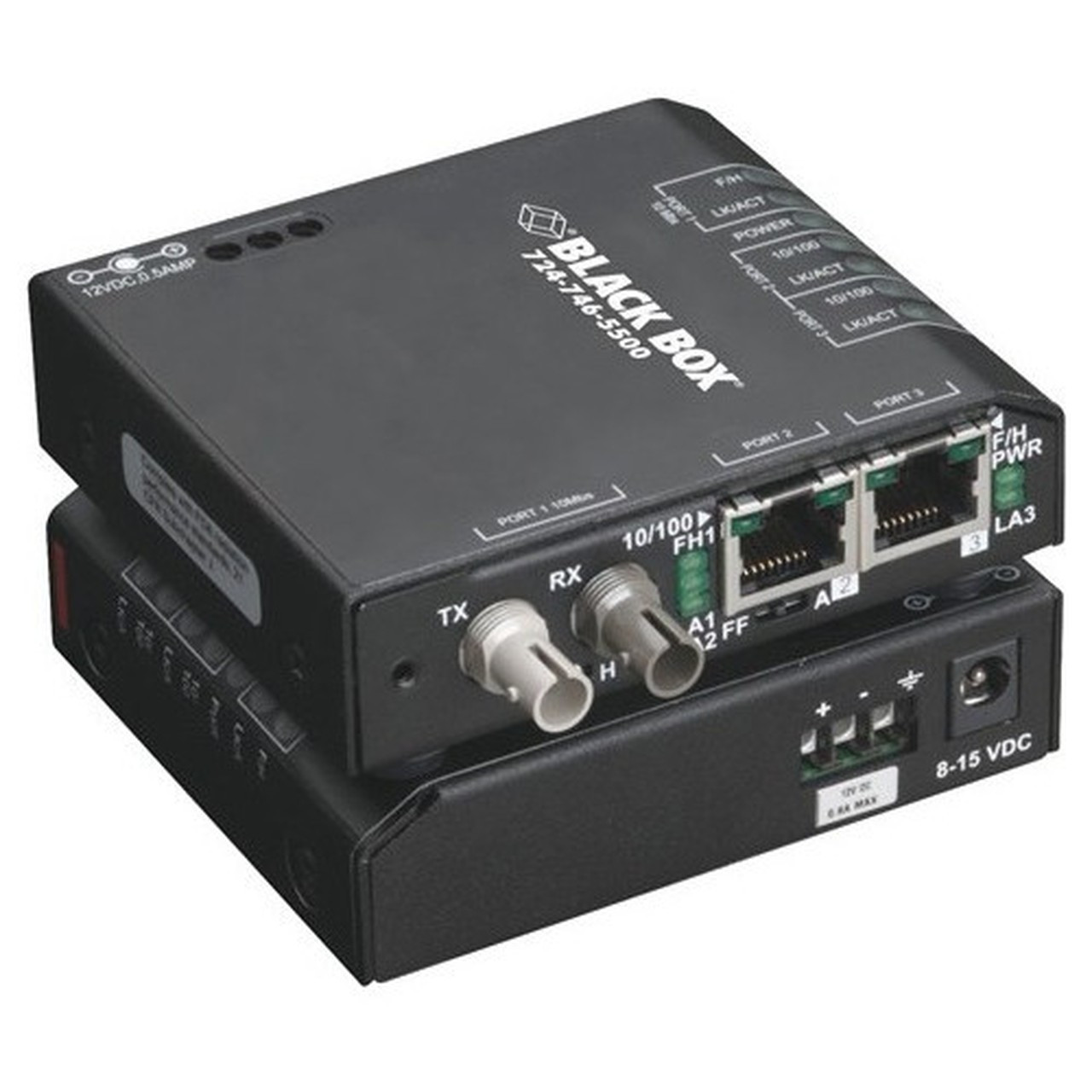

Black Box LBH100A-P-SSC-12 Transceiver/Media Converter - 2 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - Fast - - (LBH100A-P-SSC-12)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
- LBH100A-P-SSC-12 Transceiver/Media Converter
- Brackets
- Screw
Marketing Information: BLACK BOX® Extreme Media Converter Switches do more than just adapt from one cable type to another. They're true Ethernet switches and behave like switches within your Ethernet network. This means you can connect them together indefinitely without worrying about interrepeater links. Each Media Converter Switch features non-blocking switching architecture with a 2K MAC address table. The 128K buffer memory makes it easy to interconnect 10- and 100-Mbps devices.
Tough enough for outdoor use.
Extreme Media Converter Switches are ideal for use in exposed locations with temperature ranges of -40 to +167° F (-40 to +75° C)-all they need in the way of protection is shelter from direct rainfall. What's more, the switches feature a sealed case, which uses its own metal shell as a heat sink. Choose them for applications such as traffic signal control or for sensors or surveillance cameras in outdoor plants. Extreme Media Converter Switches are rated for above-the-ceiling plenum installation.
Media Converter Switches are also available in Standard versions (in both 10- and 100-Mbps fiber versions) for office or wiring closet environments and Hardened versions for demanding indoor environments such as factory floors. Because all three types work together seamlessly, you can use inexpensive Standard Media Converter Switches in the protection of the wiring closet and choose the more robust Hardened or Extreme Media Converter Switches for harsh locations at your network's edge.
Distance isn't a problem.
Because they're switches as well as media converters, Media Converter Switches provide more options in network topology, overcoming the distance limitations inherent with simple media converters-to add extra distance, just daisychain another Media Converter Switch. If you need more ports at your remote location, just add a BLACK BOX® Convenient Switch (LB101HA family).
Multimode models support up to 2 kilometers (1.2 miles) between Media Converter Switches. For longer distances, choose single-mode models for up to 20 kilometers (12.4 miles) or single-mode, long-distance models for an incredible 40 kilometers (24.8 miles) between links.
The features you're looking for.
Media Converter Switches are super simple to set up and use-just plug and go!
Both copper ports are autosensing for speed and duplex, adjusting to the connected device automatically. Plus, the UTP ports feature Auto MDI/MDIX, eliminating the need for crossover cables.
Media Converter Switches each have two full sets of LED indicators: one set on the front for viewing convenience when the Media Converter is DIN rail or wallmounted, and one set mounted in the end next to the media ports for easy viewing when units are in a rackmount tray.
AC or DC power choices.
Extreme Media Converter Switches have the power options to support harsh environments, too. Models with AC power supplies support 100-240 VAC power. The power supplies with recessed IEC power connectors work with any IEC standard power cord, making them adaptable to most international locations.
DC-powered units have internal screw terminals for connecting DC power in addition to an AC power jack. Because these models have dual power connections, you can use them simultaneously with both your DC power supply and an AC power adapter (sold separately) to provide redundant power input.
Total Number of Ports: 3
Network (RJ-45): Yes
DVI: No
USB: No
Management Port: No
Number of Network (RJ-45) Ports: 2
Number of SC Ports: 1
SC Port Type: Duplex
Media Type Supported: Optical Fiber,Twisted Pair
Fiber Mode Supported: Single-mode
Maximum Distance Supported: 12.4 Mile
Ethernet Technology: Fast Ethernet
Network Technology: 10/100Base-T,100Base-X
Power Source: Power Supply
Form Factor: Rack-mountable,Rail-mountable,Wall Mountable
Height: 3.50" (88.90 mm)
Width: 3" (76.20 mm)
Depth: 1" (25.40 mm)
Weight (Approximate): 136.1 g
Package Contents:
Environmentally Friendly: Yes
Country of Origin: United States
TAA Compliant: Yes
Limited Warranty: 3 Year
- Expand your network capacity and fulfill requirement with this 3 transceiver/media converter
- With Optical Fiber cable, get the desired data transfer rate up to a required distance
- With 10/100Base-T technology get up to 100Mbps data transfer rate over supported network cable
- The Rack-mountable provides convenient installation
[custom-specifications]
Specifications | |
---|---|
Manufacturer | Black Box Corporation |
Manufacturer Part Number | LBH100A-P-SSC-12 |
Manufacturer Website Address | http://www.blackbox.com |
Brand Name | Black Box |
Product Series | LBH100 |
Product Model | LBH100A-P-SSC-12 |
Product Name | LBH100A-P-SSC-12 Transceiver/Media Converter |
Product Type | Transceiver/Media Converter | Interfaces/Ports |
Total Number of Ports | 3 |
Network (RJ-45) | Yes |
DVI | No |
USB | No |
Management Port | No |
Number of Network (RJ-45) Ports | 2 |
Number of SC Ports | 1 |
SC Port Type | Duplex | Media & Performance |
Media Type Supported | Optical Fiber,Twisted Pair |
Fiber Mode Supported | Single-mode |
Maximum Distance Supported | 12.4 Mile | Network & Communication |
Ethernet Technology | Fast Ethernet |
Network Technology | 10/100Base-T,100Base-X | Power Description |
Power Source | Power Supply | Physical Characteristics |
Form Factor | Rack-mountable,Rail-mountable,Wall Mountable |
Height | 3.50" (88.90 mm) |
Width | 3" (76.20 mm) |
Depth | 1" (25.40 mm) |
Weight (Approximate) | 136.1 g | Miscellaneous |
Package Contents |
|
Environmentally Friendly | Yes |
Country of Origin | United States |
TAA Compliant | Yes | Warranty |
Limited Warranty | 3 Year |
