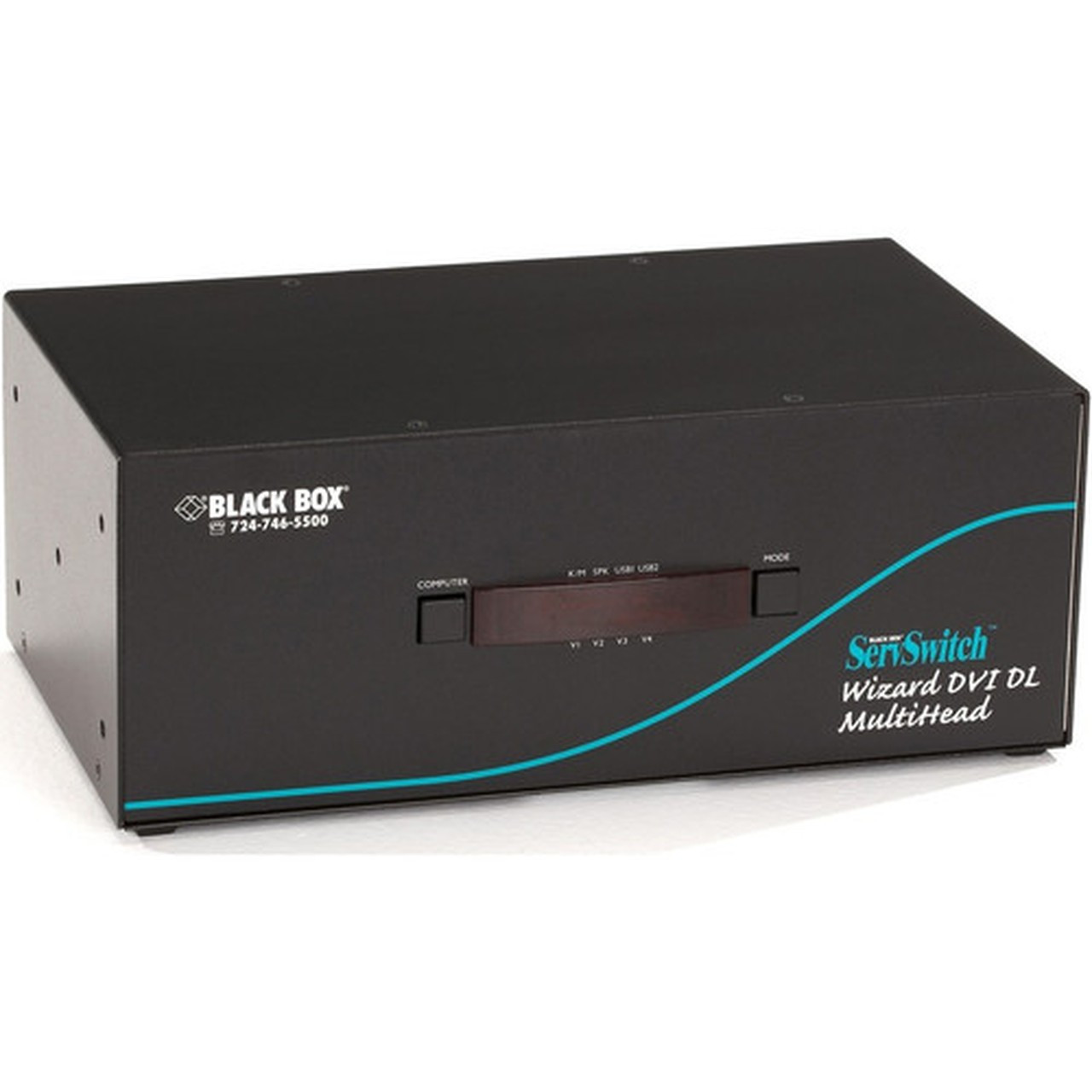

Black Box KV2204A ServSwitch Wizard Dual-Link DVI KVM Switch with USB True Emulation for 4 Computers and Local Console
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The KV2204A employs dual-link DVI technology that supports video bandwidth up to 450 megapixels per second per video head, enabling crisp visual output across connected displays. USB 2.0 channels with true emulation maintain consistent device presence to connected computers, preventing recognition issues during switching operations. The switch architecture supports both 1920x1080 and 2560x1600 resolutions, accommodating standard HD and ultra-high-definition monitor configurations.
Audio inputs on both KVM and computer channels allow integrated sound management alongside video and peripheral control. The desktop design measures 10.30" wide × 6" deep × 4" high (261.62 × 152.40 × 101.60 mm) with an approximate weight of 3.10 lb (1406.14 g), offering a compact footprint for workspace installation. Rack-mount compatibility at 2.5U height provides deployment flexibility for both desktop and rack environments.
Relevant factors for this section include Number of Computers Supported, Number of Local Users Supported, Graphic Mode, Maximum Video Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ServSwitch Wizard KV2204A combines high-resolution video support with reliable peripheral management in a single integrated solution. True emulation technology eliminates common USB device recognition problems during switching, ensuring seamless operation across all connected systems. Dual-head DVI capability allows control of two displays per computer, supporting complex multi-monitor setups without additional hardware.
High-Bandwidth Video
Dual-link DVI support delivers up to 450 megapixels per second per video head, maintaining signal integrity for graphics-intensive applications.
- Supports 2560×1600 resolution
- Compatible with WQXGA graphic mode
- Handles dual-head configurations
Stable USB Switching
True emulation on USB 2.0 channels prevents device disconnection issues, providing consistent peripheral availability across all switched computers.
- Eliminates recognition problems
- Maintains device presence
- Supports keyboard/mouse switching
Deployment / Use Cases
The KV2204A excels in environments where multiple computers require centralized management with high-resolution visual output. IT administrators can control four servers or workstations from a single console, reducing workspace clutter and improving operational efficiency. The switch's dual-head capability makes it ideal for financial trading floors, video editing suites, and engineering workstations where multi-monitor setups are standard.
Government and educational institutions benefit from TAA compliance and global power compatibility, ensuring regulatory adherence in procurement scenarios. The compact desktop form factor with optional rack mounting provides installation flexibility for both office environments and data center racks. Audio support extends functionality to multimedia production and presentation systems where synchronized sound management is required alongside visual control.
Server Management
Centralize control of up to four servers with dual-monitor support, ideal for data center and IT closet deployments.
- Reduces console hardware
- Supports rack mounting
- Maintains high-resolution access
Multi-Workstation Control
Manage multiple design or engineering workstations from a single position, streamlining creative and technical workflows.
- Dual-head DVI for complex visuals
- USB peripheral sharing
- Compact desktop footprint
Physical Profile

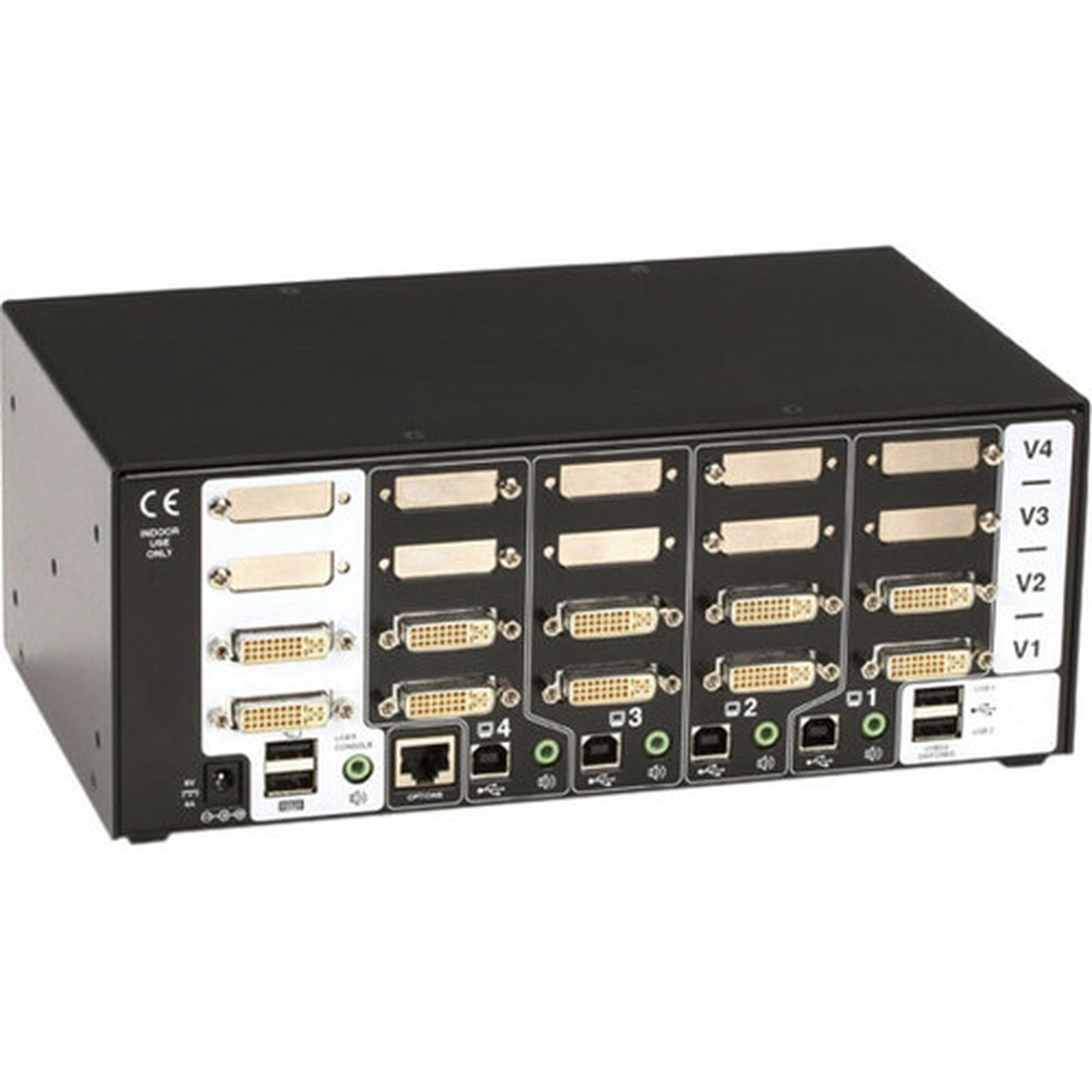

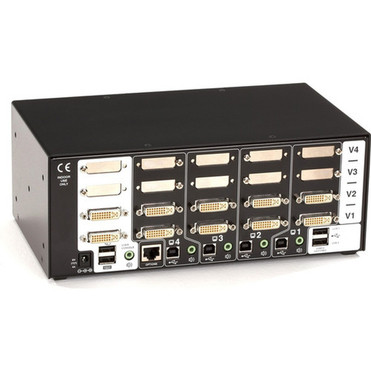

The KV2204A features a durable desktop enclosure measuring 10.30" wide × 6" deep × 4" high (261.62 × 152.40 × 101.60 mm) with an approximate weight of 3.10 lb (1406.14 g). Four self-adhesive feet provide stable placement on work surfaces, while 2.5U rack-height compatibility allows integration into standard server racks when needed. The compact design optimizes workspace efficiency without sacrificing connectivity, with all ports conveniently accessible on the rear panel for clean cable management.
- Width
- 10.30" (261.62 mm)
- Depth
- 6" (152.40 mm)
- Height
- 2.5U
- Weight
- 3.10 lb (1406.14 g)
What's in the Box
The KV2204A package includes all necessary components for immediate deployment.
Highlights
- Controls 4 computers from 1 local console with dual-head DVI support
- Dual-link DVI delivers up to 450 megapixels per second per video head
- True emulation technology ensures stable USB 2.0 peripheral switching
- Supports WQXGA resolution up to 2560×1600 for high-definition workflows
- Includes 20 DVI ports, 8 USB ports, and 1 network RJ-45 port
- Desktop form factor with 2.5U rack-height compatibility
- Global power input 100-240 VAC for worldwide deployment
- TAA compliant and backed by 2-year limited warranty
- Audio inputs on KVM and computer channels for integrated sound management
- Environmentally friendly design manufactured in the United Kingdom
Specifications
| Specifications | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | KV2204A |
| Brand Name | Black Box |
| Product Line | ServerSwitch |
| Product Name | ServSwitch Wizard Dual-Link DVI with USB True Emulation |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 4 |
| Number of Local Users Supported | 1 |
| Video | |
| Graphic Mode | WQXGA |
| Maximum Video Resolution | 2560 x 1600 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| DVI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of USB Ports | 8 |
| Number of DVI Ports | 20 |
| Power Description | |
| Input Voltage Range | 100-240 VAC |
| Physical Characteristics | |
| Form Factor | Desktop |
| Rack Height | 2.5U |
| Height | 4" (101.60 mm) |
| Width | 10.30" (261.62 mm) |
| Depth | 6" (152.40 mm) |
| Weight (Approximate) | 3.10 lb (1406.14 g) |
| Miscellaneous | |
| Package Contents | ServSwitch Wizard Dual-Link DVI with USB True Emulation 1 x 5V Power Supply and US Power Cord 4 x Self-Adhesive Feet Quick Install Reference |
| Environmentally Friendly | Yes |
| Country of Origin | United Kingdom |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
How many computers can the KV2204A KVM switch control simultaneously?
The Black Box KV2204A supports up to four computers from a single local console. This configuration allows one user to manage multiple systems with dual-head DVI video output, making it suitable for server rooms, workstations, or testing environments where centralized control improves efficiency.
What maximum video resolution does this KVM switch support?
This switch supports WQXGA resolution up to 2560×1600 pixels. The dual-link DVI technology handles high-bandwidth video signals up to 450 megapixels per second per video head, ensuring crisp visual quality for graphics-intensive applications, high-definition monitoring, and multi-monitor setups.
How does USB true emulation benefit KVM switching?
USB true emulation maintains consistent device presence to connected computers, preventing recognition issues when switching between systems. This technology ensures keyboards, mice, and other USB peripherals remain available without requiring re-enumeration, providing seamless operation across all four controlled computers.
Can the KV2204A be rack-mounted?
Yes, the switch features 2.5U rack-height compatibility while maintaining a desktop form factor. The compact design measures 10.30" wide × 6" deep × 4" high and includes four self-adhesive feet for desktop use, with dimensions suitable for integration into standard server racks when rack mounting is preferred.
What power requirements does this KVM switch have?
The KV2204A operates on 100-240 VAC input voltage, providing global power compatibility. This wide voltage range ensures reliable operation in different geographical regions without requiring additional transformers, making it suitable for international deployments in government, enterprise, and educational environments.
What compliance and warranty coverage does this product include?
The switch is TAA compliant, meeting Trade Agreements Act requirements for government procurement. It comes with a 2-year limited warranty and is manufactured in the United Kingdom with environmentally friendly design principles, providing regulatory adherence and reliable support for professional deployments.
