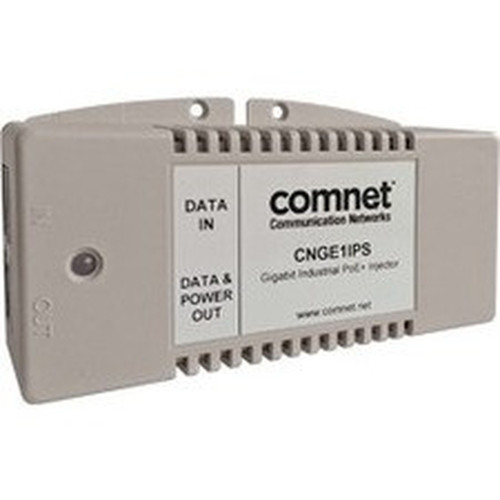

ComNet Power Over Ethernet (PoE+) Midspan Injector For 10/100/1000T(X) - 120 V AC, 230 V AC Input - 56 V DC, 625 mA Output - 1 x Input (CNGE1IPS)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Power Over Ethernet (PoE+) Midspan Injector For 10/100/1000T(X)
- Power Supply
- DIN_Rail Mounting Adaptor Kit
- NW1/NW2 (Industrially Hardened Point-to-Multipoint Wireless Ethernet Link)
- NW7[E] (Environmentally Hardened High Throughput Wireless Ethernet Device)
- NW8[E] (Environmentally Hardened Dual Radio Wireless Ethernet Device)
- IP CCTV Cameras
- Voice over IP (VoIP) Telephony Networks
- Wireless LAN Access Points
- IP Networks
- UL 1950
- CSA 22.2
- FCC Class B
- EN55022 Class B
- CE
- EN60950-1
- IEEE 802.3
- IEEE802.3u
- IEEE802.3ab
- IEEE802.3at
- TÜV
Input Voltage: 120 V AC,230 V AC
Maximum Output Voltage: 56 V DC
Maximum Input Current: 750 mA
Maximum Output Current: 625 mA
Maximum Output Power: 30 W
Input Ports: 1 x 10/100/1000Base-T
Output Ports: 1 x 10/100/1000Base-T
Form Factor: External
Mount Type: DIN Rail/Wall Mountable
Height: 3" (76.20 mm)
Width: 4.90" (124.46 mm)
Depth: 1.50" (38.10 mm)
Package Contents:
Compatibility:
ComNet Products:
Certifications & Standards:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 5 Year
[custom-specifications]
| Specifications | |
| Manufacturer | ACRE |
| Manufacturer Part Number | CNGE1IPS |
| Manufacturer Website Address | http://www.acre-co.com |
| Brand Name | ComNet |
| Product Model | CNGE1IPS |
| Product Name | Power Over Ethernet (PoE+) Midspan Injector For 10/100/1000T(X) |
| Product Type | PoE Injector |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Output Voltage | 56 V DC |
| Maximum Input Current | 750 mA |
| Maximum Output Current | 625 mA |
| Maximum Output Power | 30 W |
| Interfaces/Ports | |
| Input Ports | 1 x 10/100/1000Base-T |
| Output Ports | 1 x 10/100/1000Base-T |
| Physical Characteristics | |
| Form Factor | External |
| Mount Type | DIN Rail/Wall Mountable |
| Height | 3" (76.20 mm) |
| Width | 4.90" (124.46 mm) |
| Depth | 1.50" (38.10 mm) |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | ComNet Products:
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
[/custom-specifications]
