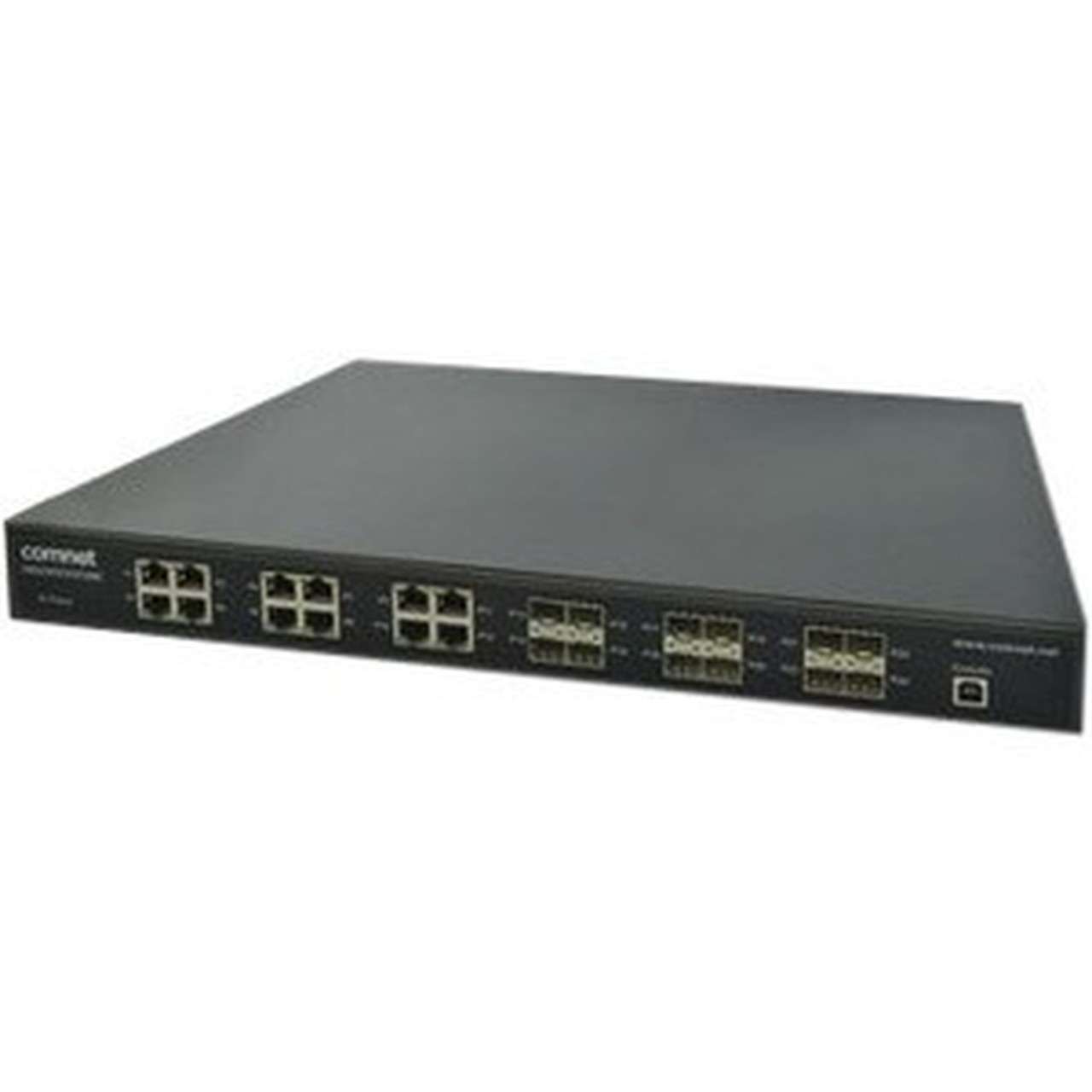

ComNet CNGE24FX12TX12MS Ethernet Switch - 24 Ports - 12 SFP Slots - Layer 3 Managed - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch delivers comprehensive networking performance with support for 1000Base-FX and 10/100/1000Base-TX network technologies across all ports. The modular design with 12 SFP slots allows for fiber optic expansion without sacrificing copper connectivity, providing future-proof flexibility for growing networks.
The power architecture includes built-in power supply with support for redundant power configurations, ensuring continuous operation even during power fluctuations. The switching fabric is optimized for Gigabit Ethernet throughput, maintaining low latency and high reliability for data-intensive applications.
Relevant factors for this section include Total Number of Network Ports, Uplink Port, Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The CNGE24FX12TX12MS stands out with its balanced approach to port density, expansion capability, and management features. The combination of 24 copper ports and 12 SFP slots provides exceptional connectivity options in a single 1U form factor.
High-Density Connectivity
Delivers 24 Gigabit Ethernet ports for connecting numerous devices while maintaining 12 SFP slots for fiber optic uplinks or long-distance connections.
- 24 copper ports for local device connections
- 12 SFP slots for fiber expansion
- Mixed media support for network flexibility
Advanced Management Capabilities
Provides full Layer 3 switching functionality with comprehensive management features for network optimization and security enforcement.
- Layer 3 routing capabilities
- Granular traffic management
- Enhanced security policies
Deployment / Use Cases
This switch is ideally suited for medium to large business networks where both high port density and fiber connectivity are required. The 1U rack-mountable design makes it perfect for data center deployments, while the desktop form factor option allows for office or closet installations.
Common deployment scenarios include core switching for small to medium businesses, distribution layer switching in larger networks, and aggregation points for mixed media environments. The redundant power support makes it suitable for critical network segments where uptime is essential.
Data Center Core Switching
Serves as a reliable core switch with sufficient ports for server connections and SFP slots for fiber backbone links between racks or buildings.
Office Network Aggregation
Acts as a central aggregation point for multiple workgroups, providing both copper connections for workstations and fiber uplinks to other network segments.
Physical Profile
The switch features a compact 1U rack-mountable design measuring 17" in height, 10" in width, and 1.50" in depth, making efficient use of rack space. With an approximate weight of 11 pounds, it maintains a manageable physical footprint while delivering substantial connectivity. The dual form factor support allows for either rack mounting in standard server cabinets or desktop placement in smaller network closets.
- Width
- 10" (254 mm)
- Depth
- 1.50" (38.10 mm)
- Height
- 17" (431.80 mm)
- Weight
- 11 lb (4989.51607 g)
Highlights
- 24 Gigabit Ethernet ports for high-density device connectivity
- 12 dedicated SFP slots for fiber optic expansion
- Layer 3 switching support for advanced routing capabilities
- Fully manageable interface for network control and optimization
- 1U rack-mountable design with desktop placement option
- Redundant power supply support for enhanced reliability
- Supports both twisted pair and optical fiber media types
- Built-in power supply with accurate voltage regulation
- Gigabit Ethernet technology across all ports
- Manufactured in the United States with lifetime warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | ACRE |
| Manufacturer Part Number | CNGE24FX12TX12MS |
| Brand Name | ComNet |
| Product Series | CNGE24FX12TX12MS[POE] |
| Product Model | CNGE24FX12TX12MS |
| Product Name | CNGE24FX12TX12MS Ethernet Switch |
| Packaged Quantity | 1 |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Uplink Port | No |
| Modular | Yes |
| Stack Port | No |
| Port/Expansion Slot Details | 12 x Gigabit Ethernet Expansion Slot,12 x Gigabit Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-FX,10/100/1000Base-TX |
| I/O Expansions | |
| Total Number of Expansion Slots | 12.0 |
| Expansion Slot Type | SFP |
| Shared SFP Slot | No |
| Number of SFP Slots | 12 |
| Network & Communication | |
| Layer Supported | 3 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable,Desktop |
| Height | 17" (431.80 mm) |
| Width | 10" (254 mm) |
| Depth | 1.50" (38.10 mm) |
| Weight (Approximate) | 11 lb (4989.51607 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
How many total ports does this switch provide?
The ComNet CNGE24FX12TX12MS provides 24 Gigabit Ethernet ports for copper connections plus 12 SFP slots for fiber optic expansion. This gives you a total of 36 potential connections, though the SFP slots require separate transceiver modules for fiber connectivity. The combination allows for substantial device connectivity while maintaining flexibility for future network expansion.
What is Layer 3 switching and why is it important?
Layer 3 switching refers to the switch's ability to perform routing functions at the network layer (Layer 3 of the OSI model) in addition to traditional Layer 2 switching. This enables the switch to route traffic between different IP subnets, implement access control lists, and support advanced routing protocols. For business networks, this means better network segmentation, improved security, and more efficient traffic management compared to basic Layer 2 switches.
Can this switch support fiber optic connections?
Yes, this switch supports fiber optic connections through its 12 dedicated SFP (Small Form-factor Pluggable) slots. These slots accept standard SFP transceiver modules that convert the electrical signals to optical signals for fiber cable transmission. You can use these slots for fiber uplinks to other switches, connections to fiber-based network equipment, or for extending your network over longer distances than copper cabling allows.
Is this switch rack-mountable?
Yes, the ComNet CNGE24FX12TX12MS is designed for 1U rack mounting in standard server racks or network cabinets. The compact dimensions of 17 inches in height, 10 inches in width, and 1.5 inches in depth make efficient use of rack space. The switch also supports desktop placement for installations where rack mounting isn't available or practical, providing deployment flexibility for different environments.
What power features does this switch include?
This switch includes a built-in power supply that provides accurate voltage regulation for all components. It also supports redundant power supply configurations, allowing you to connect a secondary power source for increased reliability. This redundant power capability is particularly valuable in critical network segments where continuous operation is essential, as it provides protection against single power supply failures.
What type of warranty comes with this switch?
The ComNet CNGE24FX12TX12MS comes with a lifetime limited warranty from the manufacturer. This warranty covers defects in materials and workmanship for the life of the product. The switch is manufactured in the United States and complies with environmental standards including RoHS (Restriction of Hazardous Substances) and WEEE (Waste Electrical and Electronic Equipment Directive) requirements.
