- Metered PDU
- 12 NEMA 5-20R (2 Front/10 Rear) output receptacles
- 120V AC - 50/60Hz - 20-amp electrical capacity with circuit breaker
- 1U Rack Mount - Rugged industrial-grade metal housing
- Marketing Information:
- Metered PDU20M2F10R 12-Outlets PDU
- Cord Retention Tray
- User Manual
- Screw Kit
- Cord Clip Kit
- Horizontal Mounting Brackets
- Vertical Mounting Brackets
- Product Registration Card

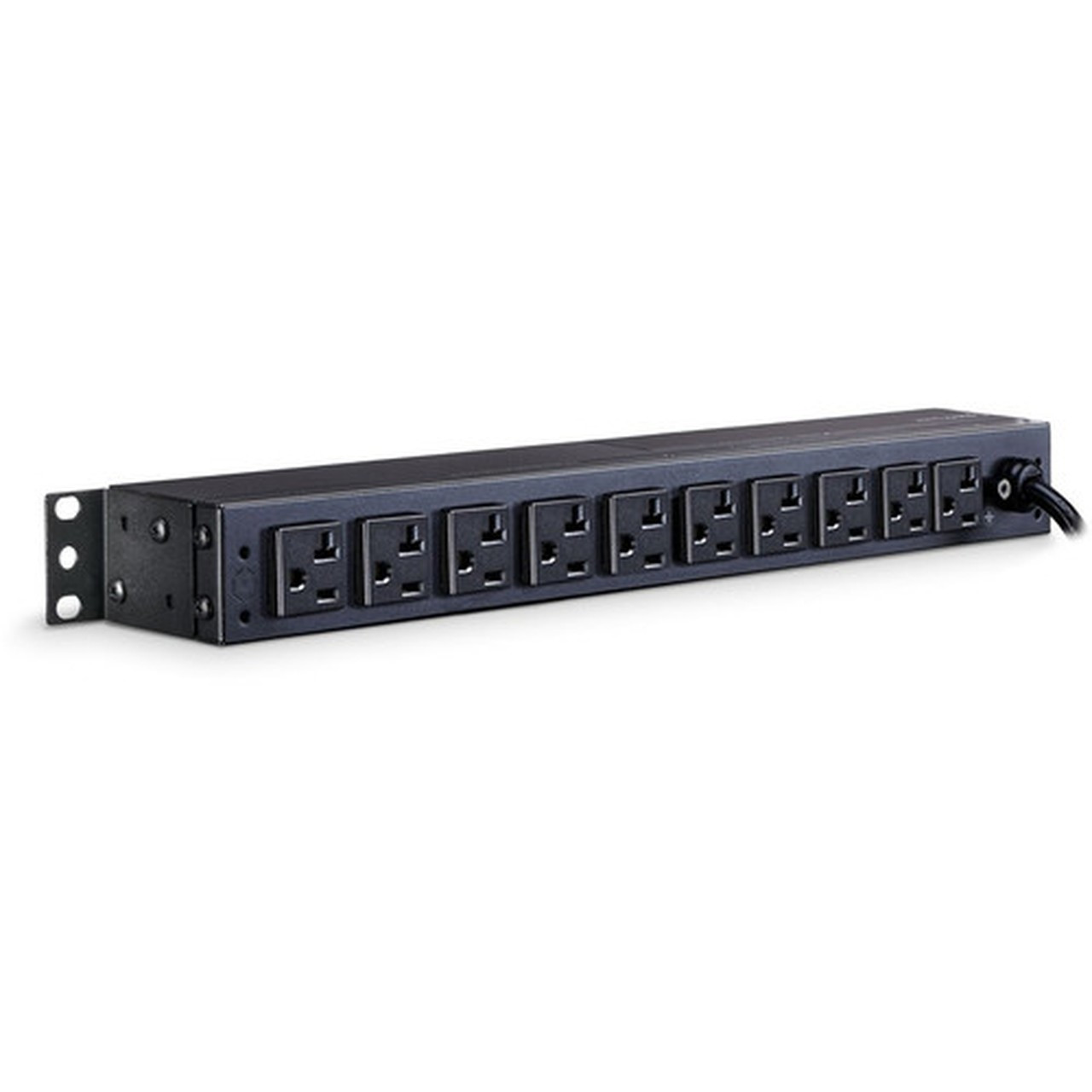

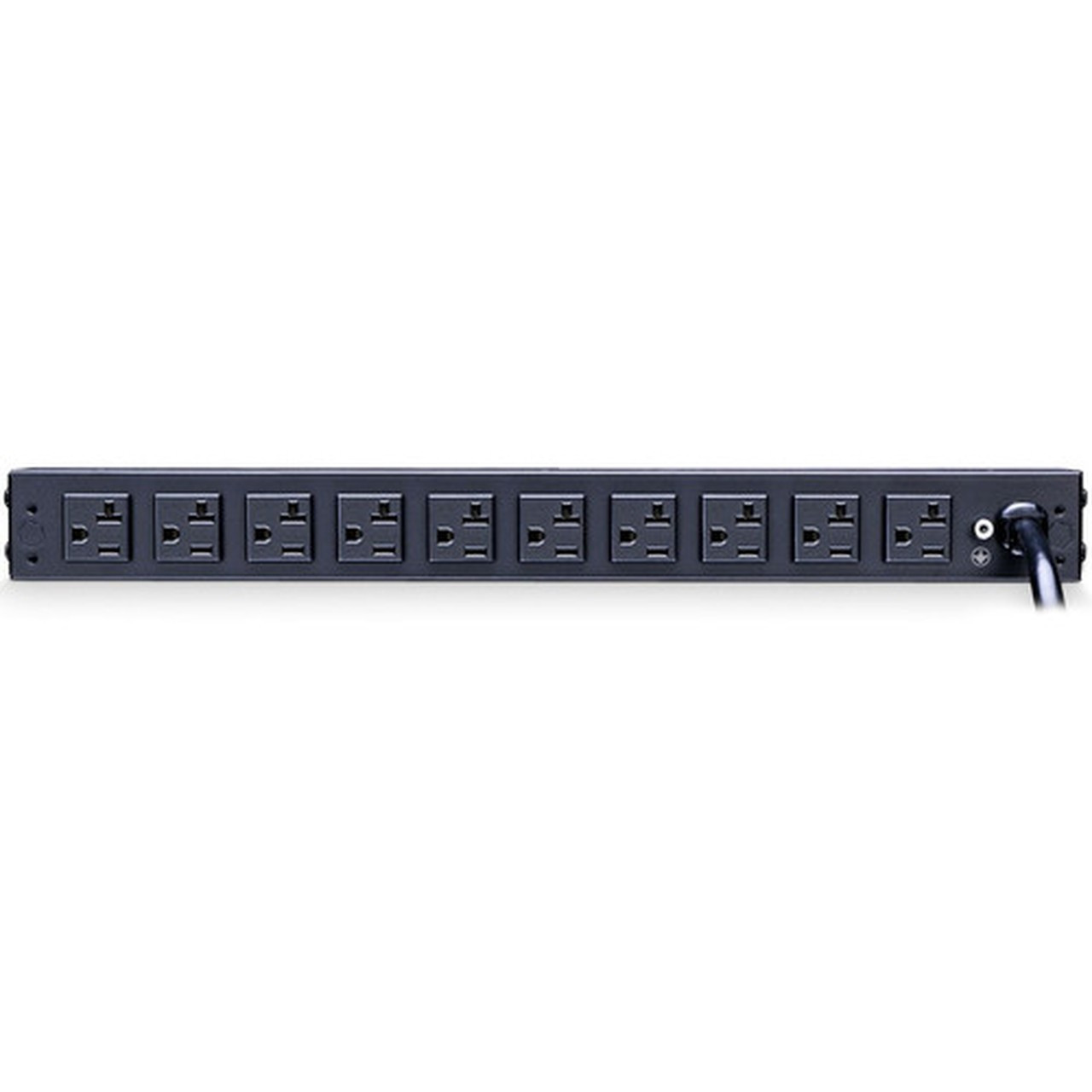

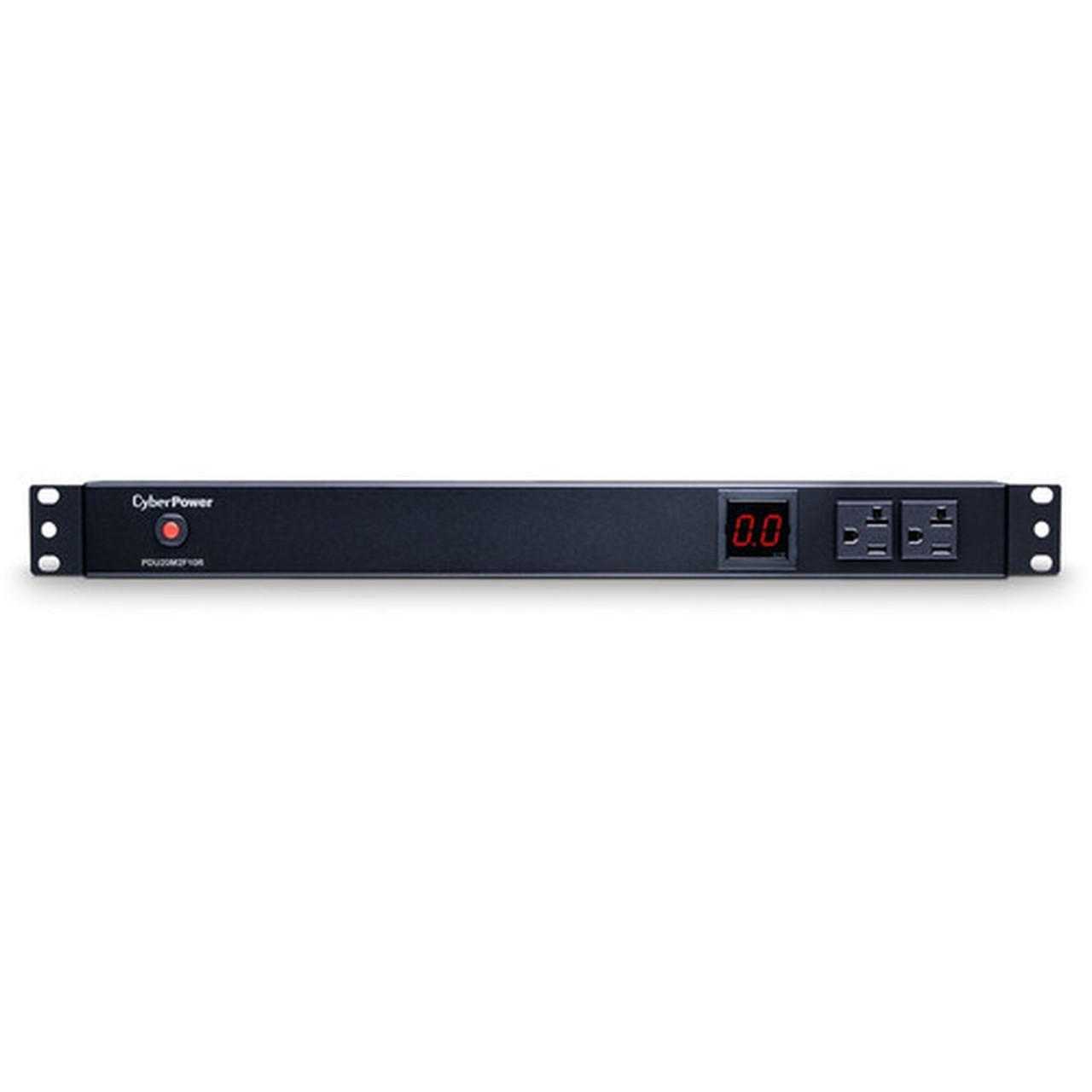

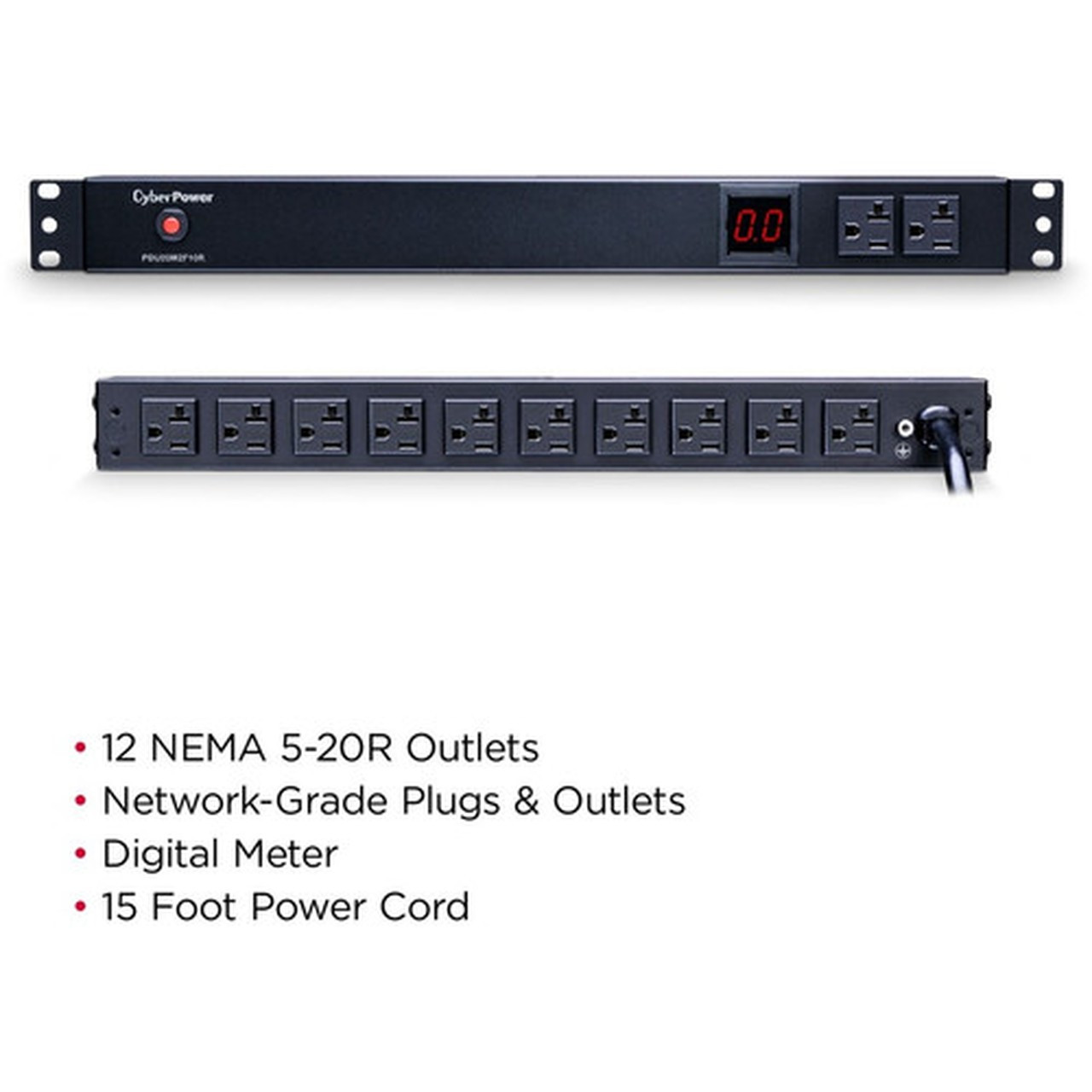

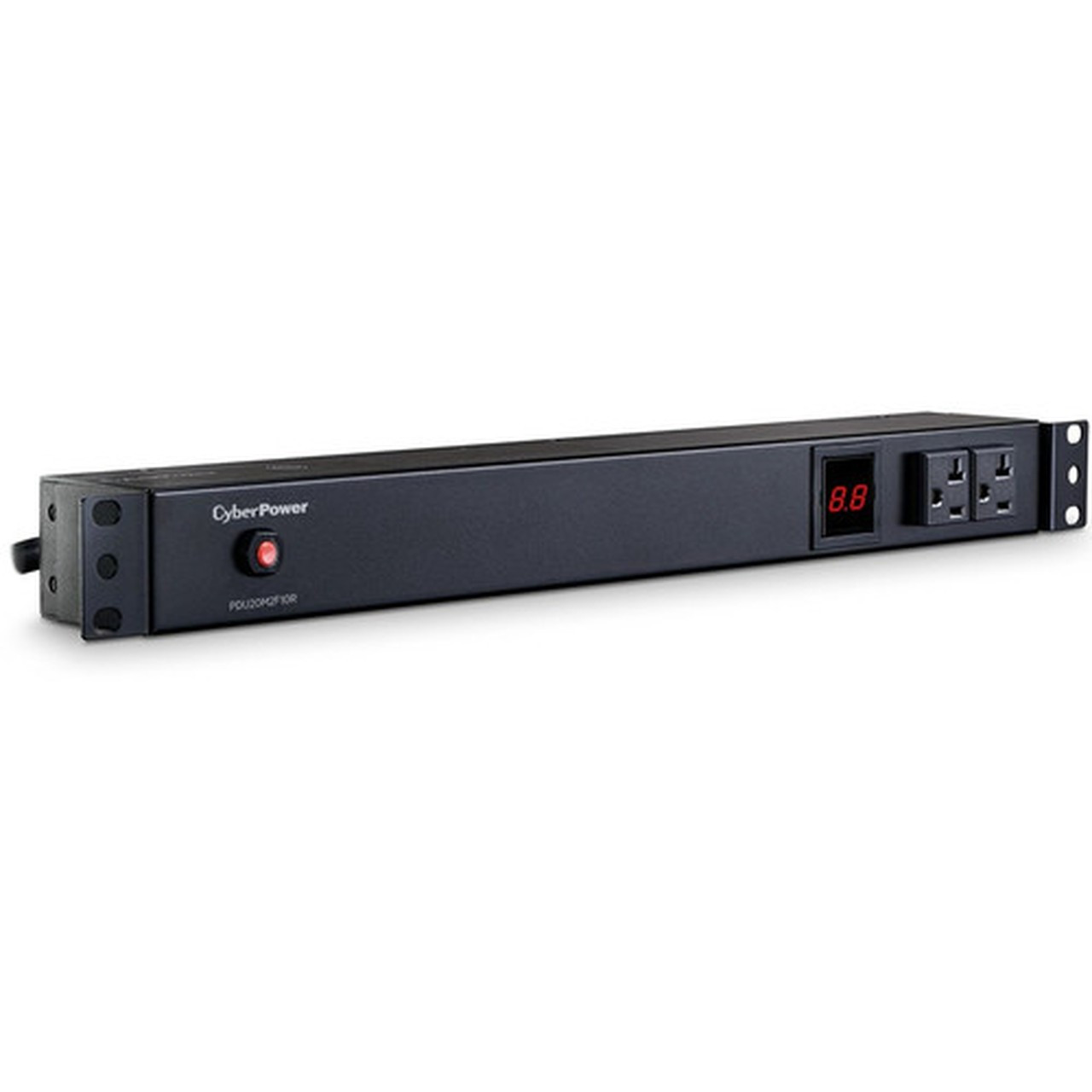

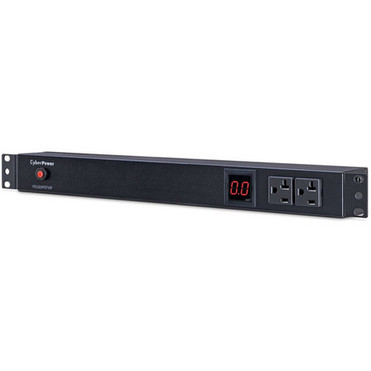

The CyberPower PDU20M2F10R, a 12-outlet (2 front, 10 rear), rackmount metered power distribution unit (PDU), provides 100 - 125 V 20A output. It distributes power to 12 NEMA 5-20R receptacles from a single NEMA 5-20P input with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring.
Designed for datacenters and other electrically demanding applications, the PDU20M2F10R has rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically. The PDU20M2F10R comes with a cord retention tray and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.
Power DistributionDelivers AC power to servers, equipment, and connected devices via a power distribution unit.
Switch-Free Design
Safeguards against accidental power shutdown.
Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.
Long Input Power Cord
Reaches distant power sources, allowing the PDU to be placed where it's needed.
Cord Retention Tray
Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.
Configurable Mounting Brackets
Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).
Durable Metal Housing
Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
Limited Lifetime Warranty
Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details.
What's In The Box
PDU, Cord Retention Tray, User Manual, Screw Kit, Cord Clip Kit, Horizontal Mounting Brackets, Vertical Mounting Brackets, Product Registration Card
PDU Type: MeteredPhase: Single PhasePlug/Connector Type: NEMA 5-20PReceptacle Type: NEMA 5-20RReceptacle Detail: 12 x NEMA 5-20RProtection Type: Overload ProtectionInput Voltage: 120 V ACInput Voltage Range: 100 V AC - 125 V ACOutput Voltage Range: 100 V AC - 125 V ACInput Current: 20 AMounting Orientation: VerticalMount Type: Rack-mountableRack Height: 1UHeight: 1.75" (44.45 mm)Width: 17.50" (444.50 mm)Depth: 2.25" (57.15 mm)Weight (Approximate): 2.27 kgPackage Contents:[custom-specifications]
Manufacturer: CyberPower Systems, Inc
Manufacturer Part Number: PDU20M2F10R
Manufacturer Website Address: https://www.cyberpowersystems.com/
Brand Name: CyberPower
Product Series: Metered PDU
Product Model: PDU20M2F10R
Product Name: Metered PDU20M2F10R 12-Outlets PDU
Product Type: PDU
Technical Information
PDU Type: Metered
Phase: Single Phase
Plug/Connector Type: NEMA 5-20P
Receptacle Type: NEMA 5-20R
Receptacle Detail: 12 x NEMA 5-20R
Protection Type: Overload Protection
Power Description
Input Voltage: 120 V AC
Input Voltage Range: 100 V AC - 125 V AC
Output Voltage Range: 100 V AC - 125 V AC
Input Current: 20 A
Physical Characteristics
Mounting Orientation: Vertical
Mount Type: Rack-mountable
Rack Height: 1U

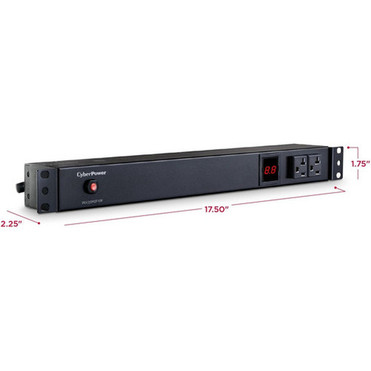

Height: 1.75" (44.45 mm)
Width: 17.50" (444.50 mm)
Depth: 2.25" (57.15 mm)
Weight (Approximate): 2.27 kg
Miscellaneous
Package Contents:
- Metered PDU20M2F10R 12-Outlets PDU
- Cord Retention Tray
- User Manual
- Screw Kit
- Cord Clip Kit
- Horizontal Mounting Brackets
- Vertical Mounting Brackets
- Product Registration Card
Energy Star: No
Environmentally Friendly: Yes
Country of Origin: China
Warranty
Limited Warranty: Lifetime
