CyberPower RKBS15S2F10R Rackbar 12-Outlet Surge Protector - 3600 J Surge Suppression - 15A - 1U Rackmount - 15 ft Cord
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This surge protector features a clamping voltage of 400V, effectively diverting excess voltage away from connected devices. The 3600-joule surge energy rating indicates a high capacity for absorbing repeated surge events, extending the protective lifecycle of the unit. Input and output are standardized at 120V AC, compatible with typical North American power infrastructure.
The electrical design includes a 15A circuit breaker that automatically trips in overcurrent conditions, preventing damage to the protector and downstream equipment. EMI/RFI filtration circuits attenuate line noise, which is critical for maintaining signal integrity in audio, video, and data applications. The unit operates without batteries or runtime considerations, focusing solely on surge and noise protection.
This section brings together practical product details such as Plug/Connector Type, Receptacles, Input Voltage, Output Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages

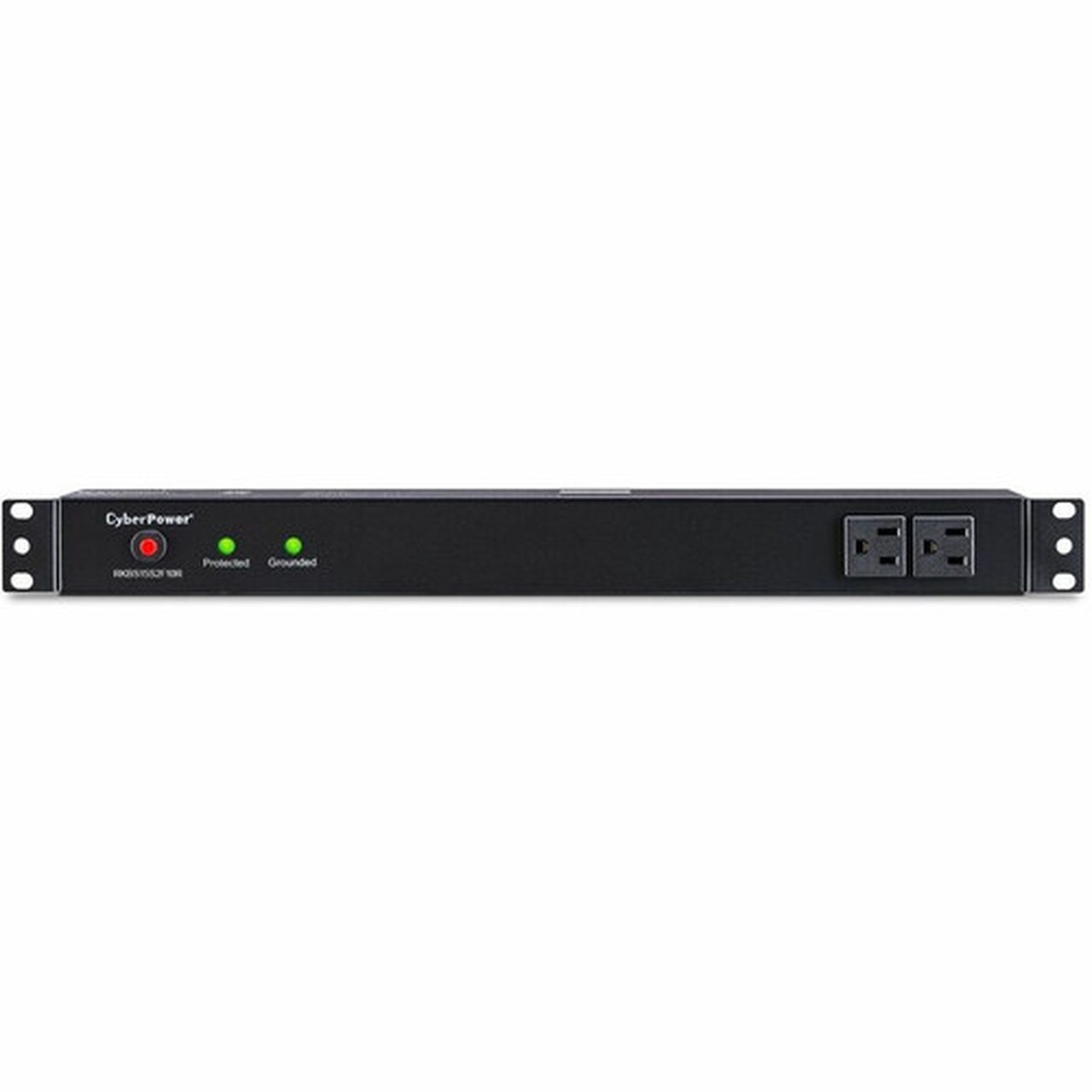

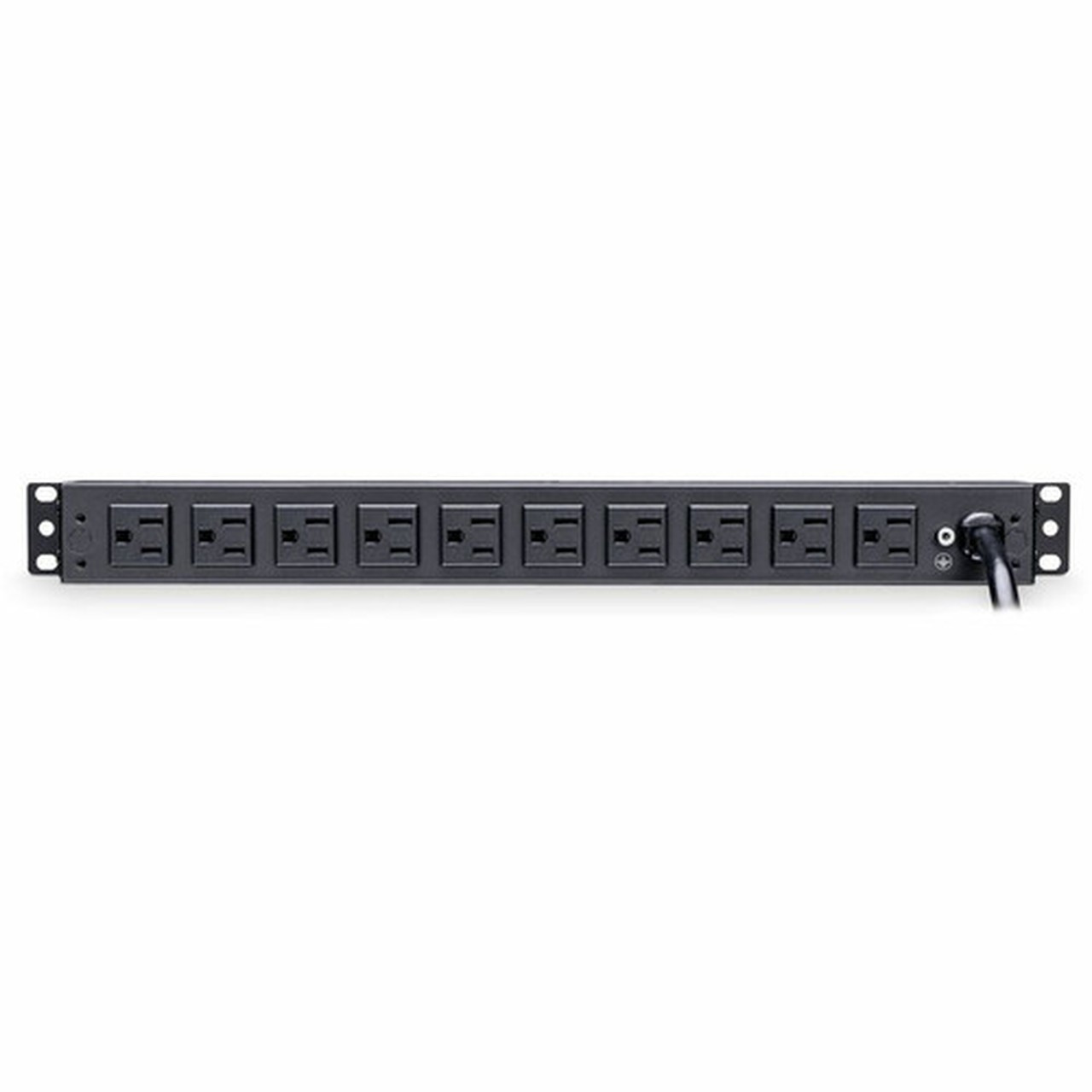

The RKBS15S2F10R combines high-density outlet configuration with robust surge protection in a rack-optimized form factor. Its 12 NEMA 5-15R outlets—split between two front and ten rear positions—allow flexible cable management and easy access for frequently connected devices. The 15-foot power cord provides ample reach to distant power sources, reducing the need for extension cords.
Rackmount Design
The 1U height (1.75") and 17.5" width ensure seamless integration into standard server racks. Mounting brackets and a cord retention tray are included for secure installation and organized cable routing.
- 1U rackmount profile
- Includes mounting brackets
- Cord retention tray included
Comprehensive Protection
Beyond surge suppression, the unit offers EMI/RFI filtration to minimize electrical noise, which can cause data errors or equipment malfunction in sensitive environments.
- 3600 J surge suppression
- EMI/RFI filtration
- 15A circuit breaker
Deployment / Use Cases
This surge protector is ideal for server rooms, data centers, network closets, and AV racks where multiple devices require centralized power protection. The rackmount design saves space and keeps power distribution organized within standard cabinet infrastructure.
Typical applications include protecting servers, switches, routers, NAS devices, and audio-visual equipment from surge events and electrical noise. The unit’s 12 outlets support high-density deployments, while the 15A rating handles moderate power loads common in IT environments. It is not a UPS and does not provide battery backup; it is designed for surge protection and power distribution in always-on settings.
Data Center Racks
Deploy in server racks to protect critical network and storage hardware from power surges, with easy front/rear outlet access for cable management.
AV & Media Racks
Use in audio-visual installations where clean power is essential to prevent noise interference in sensitive audio and video signals.
Physical Profile

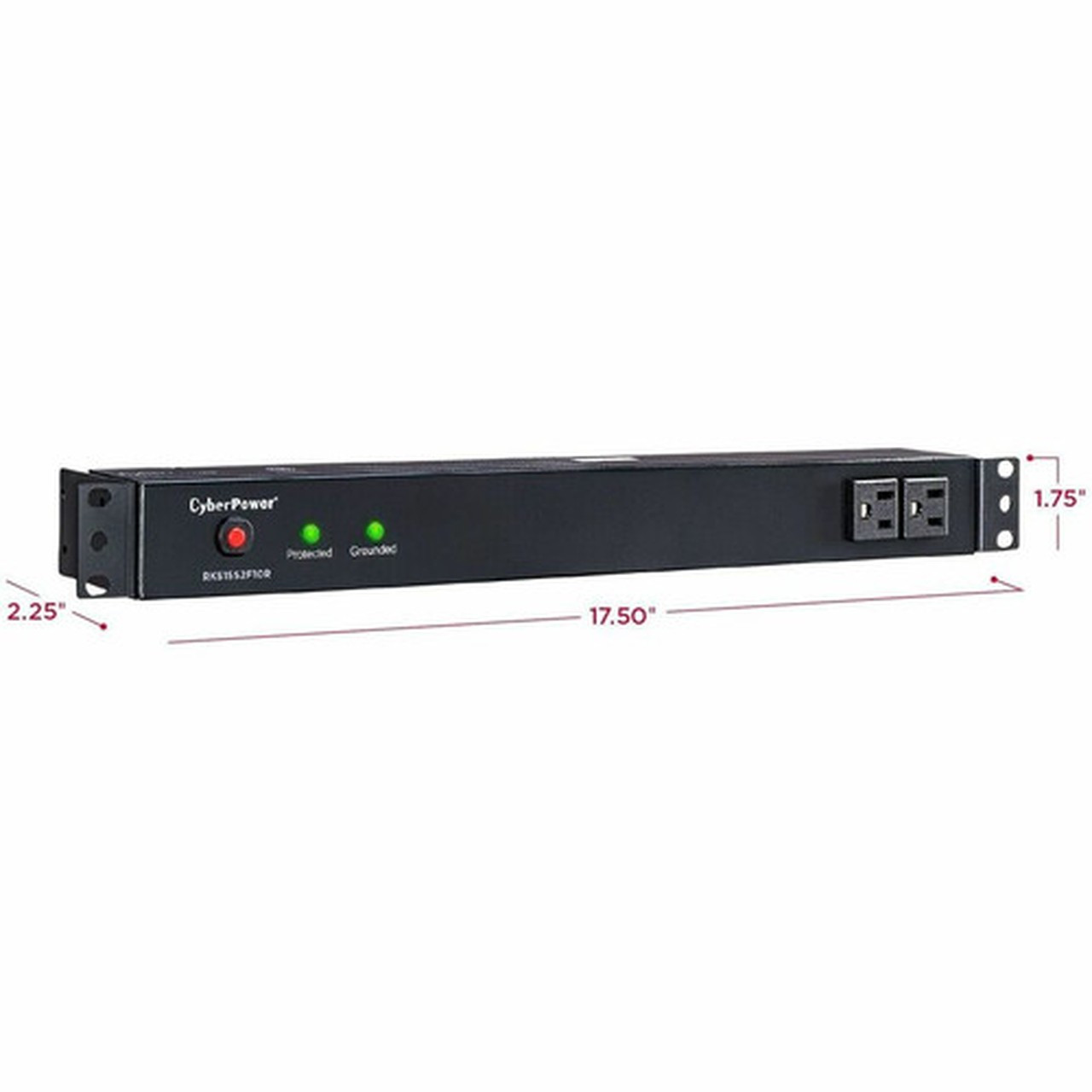

The unit measures 17.5" wide, 2.25" deep, and 1.75" high, conforming to 1U rack standards. Its compact depth allows installation in shallow racks without protruding. The weight is approximately 4 pounds, making it lightweight for easy handling during rack mounting. The finish is designed for durability in rack environments, and the included cord organizers help maintain a tidy cabling appearance.
- Width
- 17.50" (444.50 mm)
- Depth
- 2.25" (57.15 mm)
- Height
- 1.75" (44.45 mm)
- Weight
- 4 lb (1814.37 g)
- Length
- 15 ft (4.57 m)
What's in the Box
The package includes all necessary components for immediate deployment and organization.

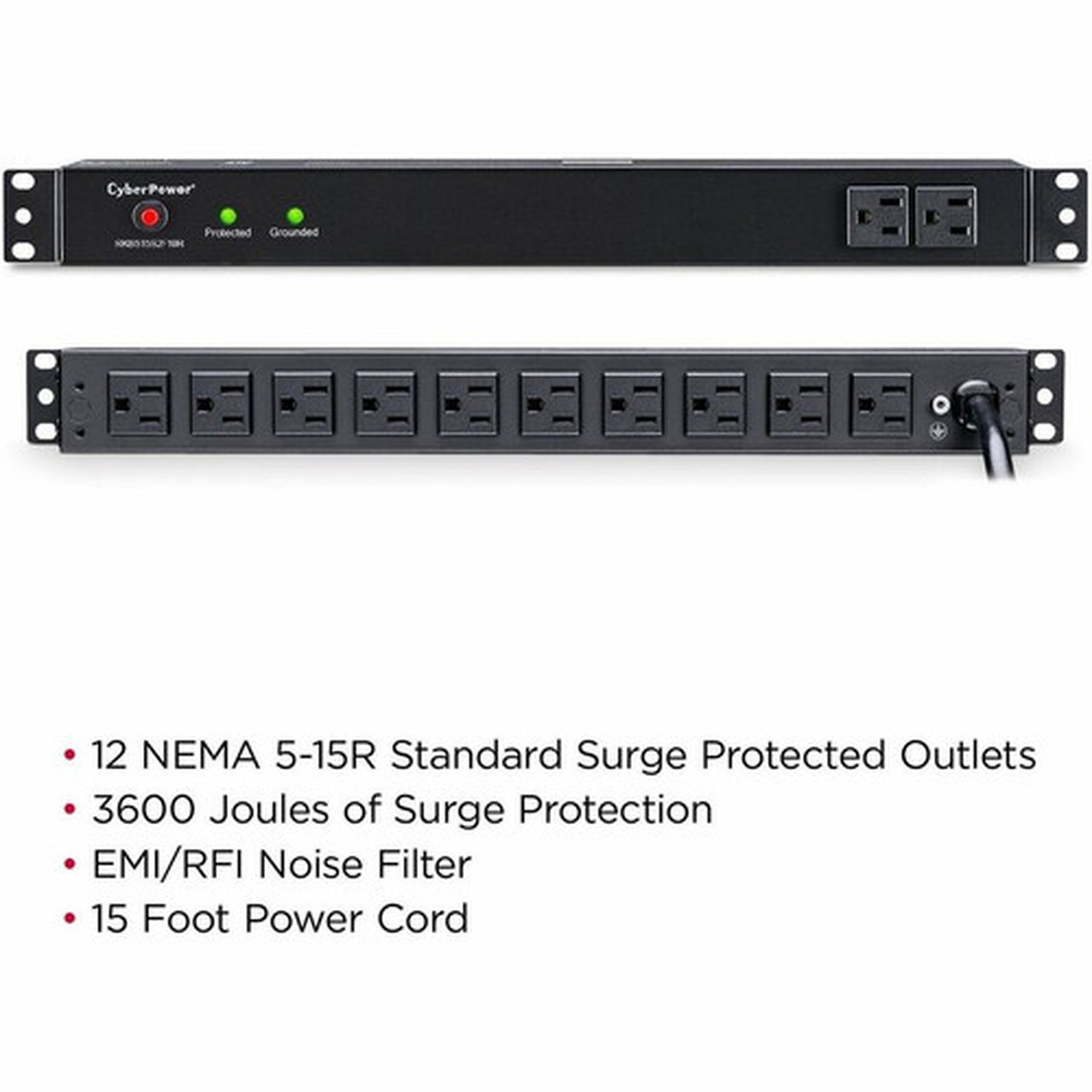

Highlights
- 3600-joule surge suppression for robust protection
- 12 NEMA 5-15R outlets (2 front, 10 rear) for high-density power distribution
- 1U rackmount design fits standard 19-inch server racks
- 15-foot power cord provides flexible placement options
- EMI/RFI filtration reduces electrical noise interference
- 15A circuit breaker prevents overcurrent damage
- Lifetime limited warranty for long-term reliability
- RoHS compliant for environmental safety
- Includes mounting brackets and cord management accessories
- Clamping voltage of 400V for effective surge diversion
Specifications
| Specifications | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | RKBS15S2F10R |
| Brand Name | CyberPower |
| Product Series | Rackbar Surge |
| Product Model | RKBS15S2F10R |
| Product Name | RKBS15S2F10R Rackbar 12 - Outlet Surge Protector with 3600 J Surge Suppression |
| Product Type | Surge Suppressor/Protector |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacles | 12 x NEMA 5-15R |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 3600 J |
| Physical Characteristics | |
| Power Cord/Cable Length | 15 ft (4.57 m) |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 2.25" (57.15 mm) |
| Weight (Approximate) | 4 lb (1814.37 g) |
| Miscellaneous | |
| Package Contents | Rackbar Surge Suppressor RM 1U RKBS15S2F10R 15A 12-Outlet Mounting Brackets (2 Sets) Cord Retention Tray Cord Organizers User Manual |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What is the surge energy rating of this CyberPower Rackbar?
The CyberPower RKBS15S2F10R has a surge energy rating of 3600 joules. This rating indicates its capacity to absorb surge events over its lifetime, providing robust protection for connected equipment against voltage spikes and transients.
How many outlets does this surge protector have and what type are they?
It features 12 NEMA 5-15R outlets, configured with two on the front and ten on the rear. This design allows for flexible cable management, with frequently accessed devices plugged into the front and permanent connections routed to the rear in rack environments.
Is this unit rackmountable and what are its dimensions?
Yes, it is designed as a 1U rackmount device. The dimensions are 17.5" wide, 2.25" deep, and 1.75" high, making it compatible with standard 19-inch server racks. Mounting brackets are included for secure installation.
What is the length of the power cord included?
The power cord is 15 feet (4.57 meters) long. This length provides ample reach to power sources in rack setups, reducing the need for additional extension cords and facilitating cleaner cable routing.
Does this surge protector include any form of warranty?
Yes, it comes with a lifetime limited warranty. This warranty covers defects in materials and workmanship, offering long-term assurance for your investment in power protection infrastructure.
What electrical protections does this unit offer besides surge suppression?
In addition to 3600-joule surge suppression, it includes EMI/RFI filtration to reduce electromagnetic and radio-frequency interference on the power line. It also has a 15A circuit breaker that trips in overcurrent conditions to protect both the unit and connected devices.
What power capacity is listed for this UPS?
Power specifications help show where the unit fits best, including the type of load level, electrical environment, and backup role it is intended to support. These are usually the most decision-critical facts in a UPS or power-protection comparison.
What voltage details are listed?
The listed power specification is 120 V AC, which helps position the unit for the right load level and installation role.
