CyberPower PR2200LCD Smart App Sinewave UPS - 2200VA/1980W Line Interactive - 120V Tower with LCD Display & 10 Outlets
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This line-interactive UPS employs automatic voltage regulation (AVR) to correct minor voltage fluctuations without switching to battery, extending runtime and battery life. The unit accepts input voltage from 75V to 154V and delivers a regulated 120V output with a transfer time of 4 milliseconds, ensuring seamless transition during outages. Its pure sine wave output maintains compatibility with active PFC power supplies found in modern servers and networking gear.
Power management is facilitated through multiple interfaces: USB and serial ports for local communication, plus SNMP/HTTP support for network-based monitoring and control. The integrated GreenPower UPS™ bypass technology enhances energy efficiency by reducing power consumption during normal operation. Safety features include an EMI/RFI noise filter, surge protection rated at 1030 joules, and a 30-amp circuit breaker.
This section brings together practical product details such as AVR, Plug/Connector Type, Receptacle Type, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The PR2200LCD combines high-capacity power protection with intelligent management tools, making it a versatile solution for safeguarding business infrastructure. Its pure sine wave output ensures compatibility with a wide range of equipment, from servers to network switches, without risk of disruption or damage.
Smart App Management
Remote monitoring and control via SNMP/HTTP and the PowerPanel Business Edition software provide real-time alerts for low battery, overload, and other critical events, enabling proactive maintenance.
- Network-wide power management
- Customizable alarm notifications
- Historical logging and reporting
Extended Runtime & Battery
With four sealed lead-acid batteries, the UPS delivers up to 26 minutes of backup at half load, and batteries are user-replaceable to simplify maintenance and extend service life.
- User-replaceable battery design
- Typical recharge time of 8 hours
- Wide operating temperature range
Comprehensive Outlet Configuration
Ten outlets include eight NEMA 5-15R and two NEMA 5-20R receptacles, accommodating a mix of standard and high-draw devices, all backed by surge and battery backup protection.
- Dedicated battery & surge outlets
- 10-foot power cord
- NEMA L5-30P plug for high-current input
Deployment / Use Cases
The CyberPower PR2200LCD is engineered for environments where power quality and uptime are critical. Its tower form factor and substantial power capacity make it suitable for standalone deployment in server rooms, network closets, or telecom cabinets, providing centralized protection for multiple devices.
Typical applications include supporting rack-mounted servers, network-attached storage (NAS) units, switches, routers, and VoIP systems. The unit’s communication ports and management software integrate easily into existing IT infrastructure, allowing for centralized monitoring and automated shutdown procedures during extended outages.
Server Room Backup
Protect one or two rack servers along with associated network gear, ensuring graceful shutdowns and preventing data loss during power failures.
Network Closet Power
Safeguard switches, routers, and access points in distributed network locations, maintaining connectivity and security during brownouts or outages.
Physical Profile

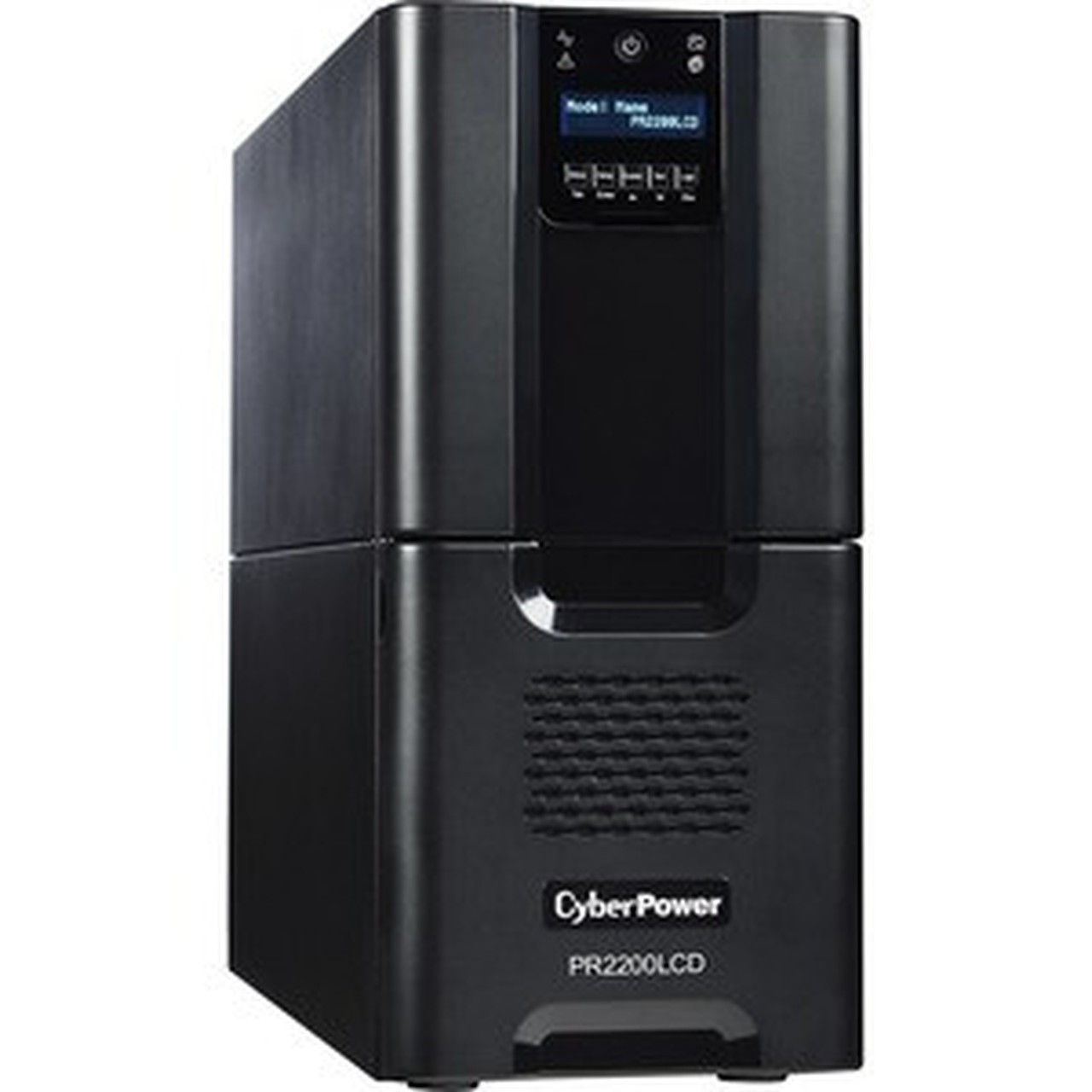

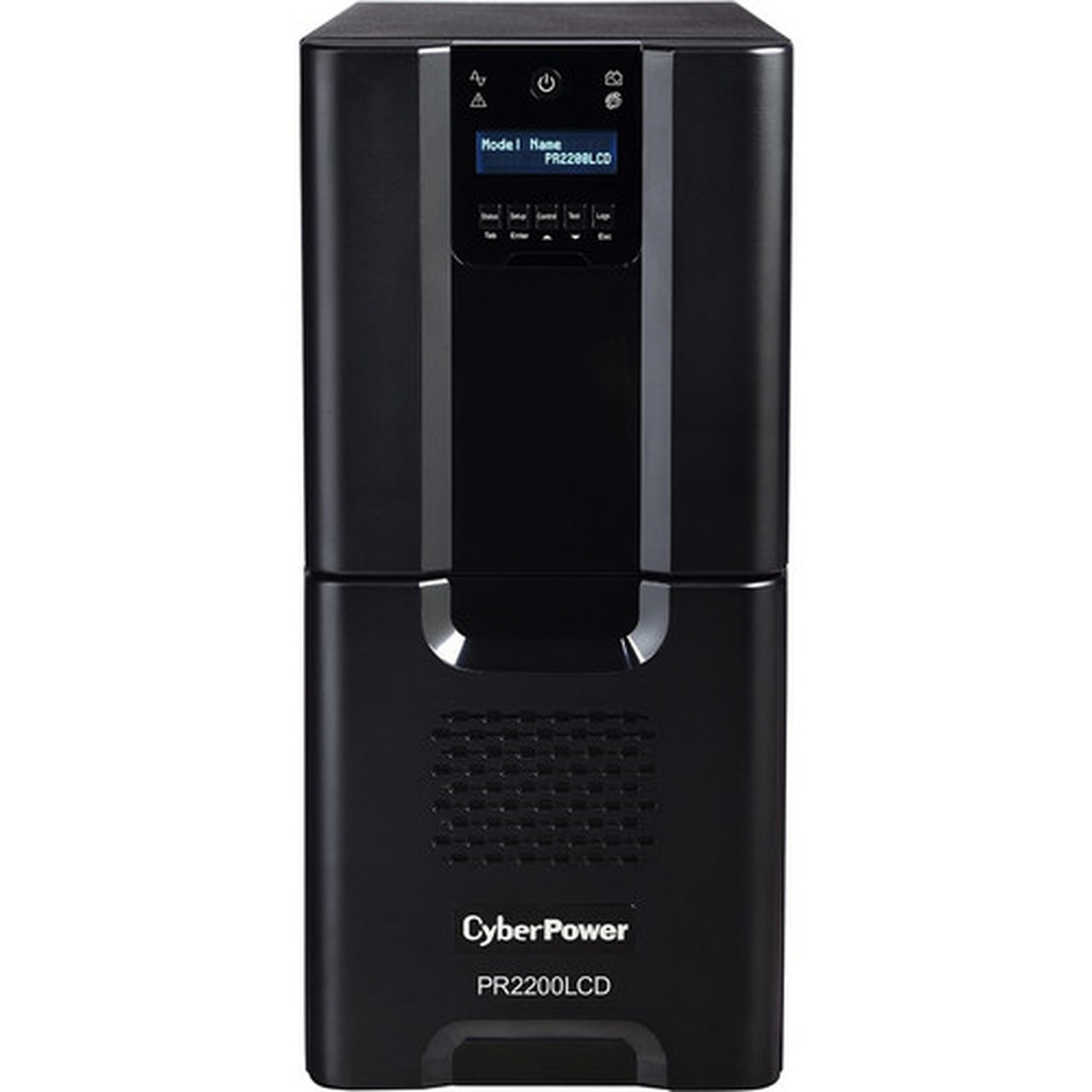

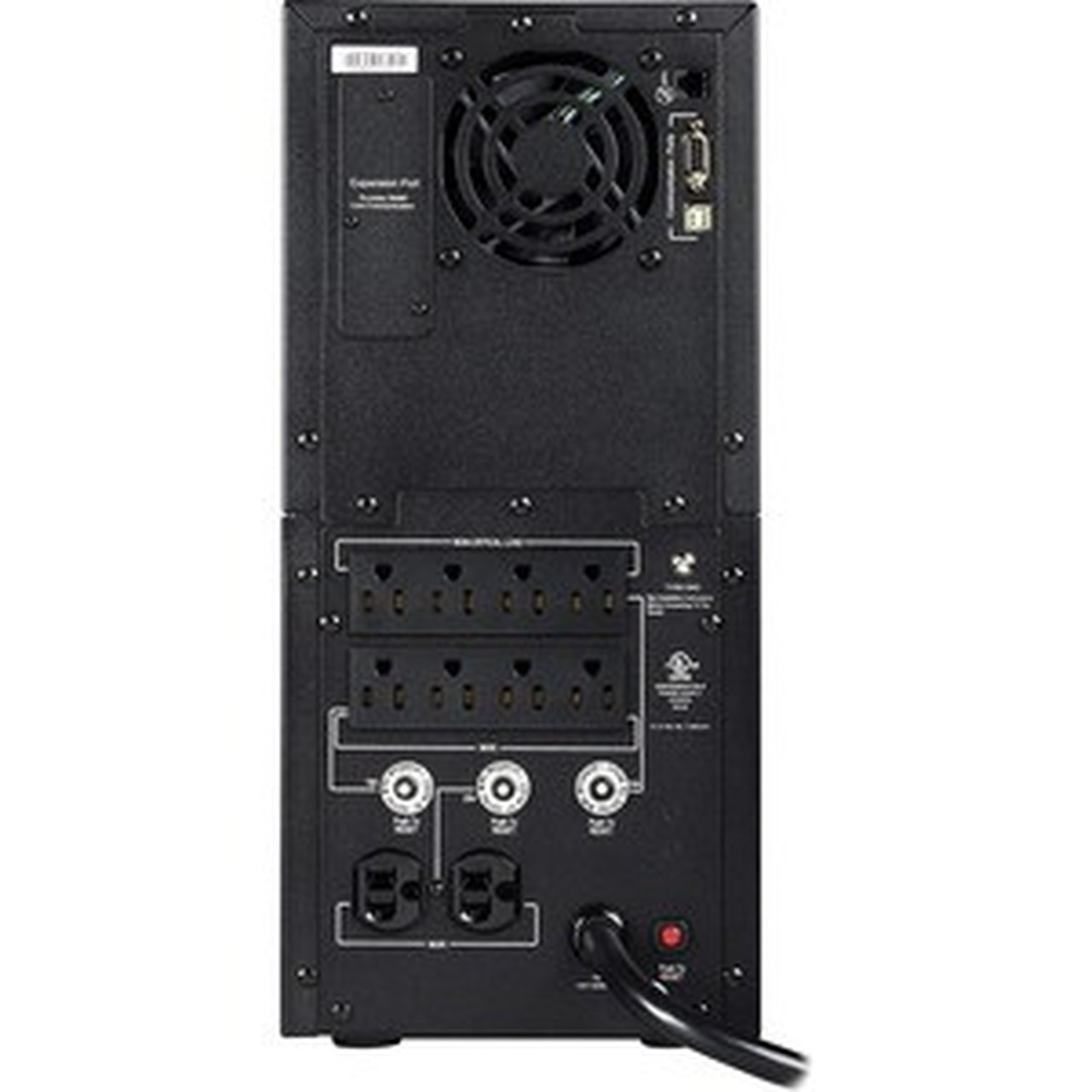

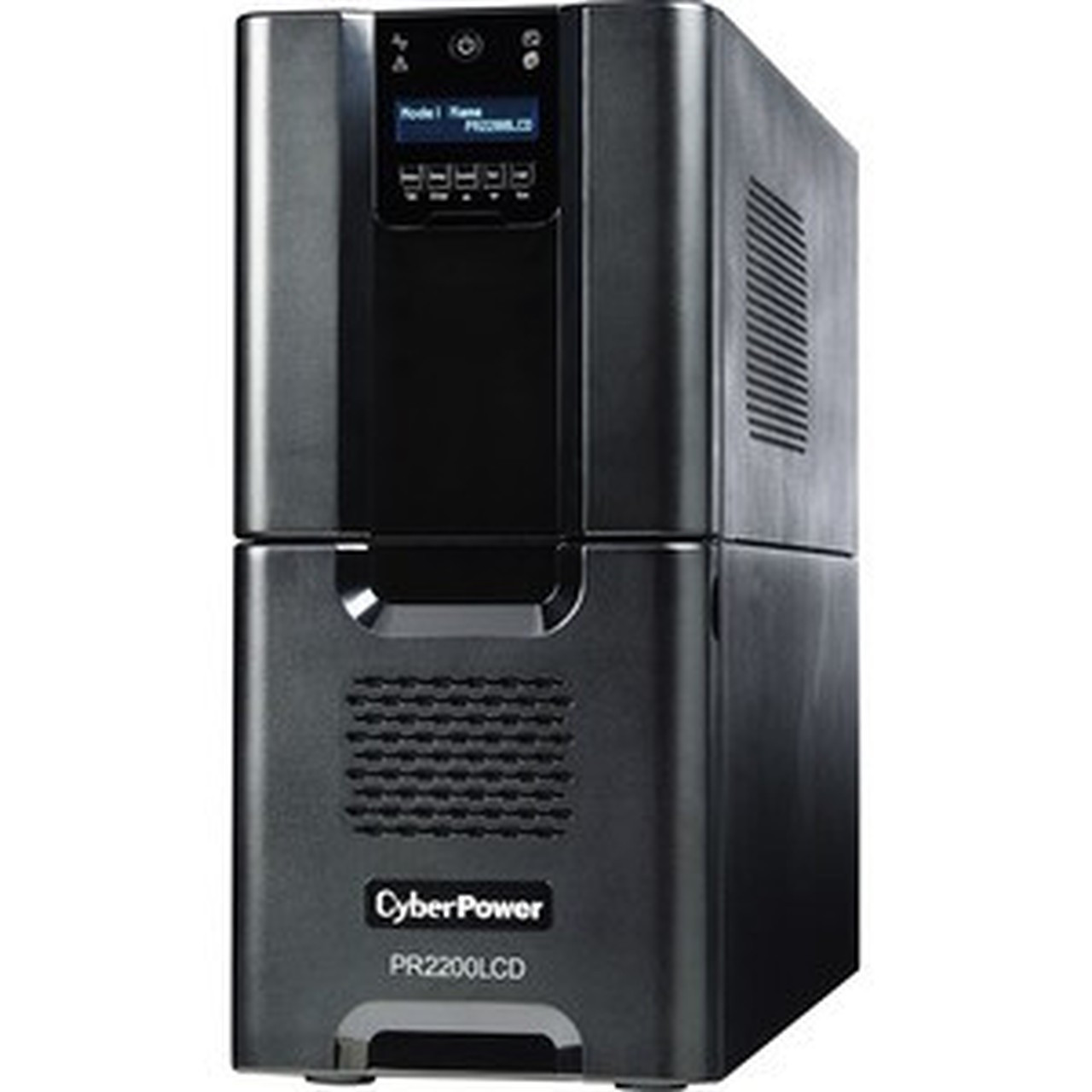

Housed in a black tower enclosure, the PR2200LCD measures 17" high, 7.70" wide, and 20.20" deep, with a weight of approximately 116 pounds. Its footprint is designed for stability on floors or sturdy shelves, and the unit includes a 10-foot power cord for flexible placement relative to power sources. The front-panel LCD clearly displays status, load, and battery information, while the rear panel organizes outlets and communication ports for clean cable management.
- Width
- 7.70" (195.58 mm)
- Depth
- 20.20" (513.08 mm)
- Height
- 17" (431.80 mm)
- Weight
- 116 lb (52616.71 g)
- Length
- 10 ft (3048 mm)
What's in the Box
The package includes the UPS unit along with essential accessories for setup and management.
Highlights
- 2200VA/1980W line-interactive UPS with pure sine wave output
- LCD display for real-time status and monitoring
- Ten outlets: eight NEMA 5-15R and two NEMA 5-20R
- Smart app management via SNMP/HTTP and PowerPanel software
- Up to 26 minutes of backup at half load
- User-replaceable sealed lead-acid batteries
- Automatic voltage regulation (AVR) and GreenPower UPS™ technology
- Includes USB, serial, and EPO communication ports
- Three-year limited warranty
- RoHS compliant and environmentally friendly
Specifications
| Specifications | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PR2200LCD |
| Brand Name | CyberPower |
| Product Series | Smart App Sinewave UPS |
| Product Model | PR2200LCD |
| Product Name | PR2200LCD Smart App Sinewave UPS Systems |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA 5-20R,NEMA 5-15R |
| Receptacle Detail | 2 x NEMA 5-20R,8 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 10 |
| Transfer Time | 4 ms |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Application/Usage | Server,Storage Device,Network Device,Telecommunication |
| Cord Length | 10 ft (3048 mm) |
| Circuit Breaker Current Rating | 30 A |
| Power Description | |
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 1.98 kW |
| Input Voltage | 120 V AC |
| Input Voltage Range | 75 V AC - 154 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 47 Hz,63 Hz |
| Waveform Type | Step Wave |
| Surge Energy Rating | 1030 J |
| Output Power Factor | 0.9 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring |
| Alarm | Low Battery,On Battery,Overload,Battery Mode |
| Controls/Indicators | |
| Status Indicators | Power On Wiring Fault AC Power Battery Power Replace Battery |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| EPO Port | Yes |
| Battery Information | |
| Number of Batteries | 4 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Backup/Run Time (Full Load) | 8 Minute |
| Backup/Run Time (Half Load) | 26 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Tower |
| Height | 17" (431.80 mm) |
| Width | 7.70" (195.58 mm) |
| Depth | 20.20" (513.08 mm) |
| Weight (Approximate) | 116 lb (52616.71 g) |
| Miscellaneous | |
| Package Contents | Smart App Sinewave PR2200LCD 2200VA Pure Sine Wave Tower LCD UPS PowerPanel Business Edition Software CD User Manual Functional Setup Guide USB Cable Serial Cable Emergency Power Off (EPO) Cable Registration Card |
| Software Included | PowerPanel Business Edition Software |
| Energy Star | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of the CyberPower PR2200LCD UPS?
The PR2200LCD provides 2200VA (2.20 kVA) and 1980W of power capacity. This rating supports a mix of servers, storage devices, and network equipment, making it suitable for small to medium server rooms or network closets where reliable backup power is essential.
How long will this UPS run on battery during a power outage?
At full load (1980W), the UPS delivers approximately 8 minutes of backup time. At half load (990W), runtime extends to about 26 minutes. These figures are based on the included sealed lead-acid batteries and are typical for line-interactive UPS units in this capacity range.
What types of outlets does the PR2200LCD have?
The unit includes ten outlets: eight are standard NEMA 5-15R receptacles and two are NEMA 5-20R receptacles for higher-draw devices. All outlets provide both battery backup and surge protection, allowing you to connect a variety of equipment such as servers, switches, and monitors.
Can I manage this UPS remotely over a network?
Yes, the PR2200LCD supports remote management via SNMP/HTTP protocols. Combined with the included PowerPanel Business Edition software, this enables network-wide monitoring, alerting, and control. You can receive notifications for events like low battery or overload and initiate graceful shutdowns of connected systems.
Is the battery user-replaceable, and how long does recharging take?
The UPS uses four sealed lead-acid batteries that are user-replaceable, simplifying maintenance. After a complete discharge, the typical recharge time to 90% capacity is about 8 hours. This design helps extend the overall service life of the unit by allowing easy battery swaps when needed.
What input plug type and voltage does this UPS require?
The PR2200LCD comes with a NEMA L5-30P plug and requires a 120V AC power source. It operates within an input voltage range of 75V to 154V AC, with automatic voltage regulation to correct minor fluctuations without draining the battery, ensuring stable output for connected equipment.
What power capacity is listed for this UPS?
The listed power specification is 2.20 kVA, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes 10, which helps buyers understand how many connected devices it can support in its intended deployment.
