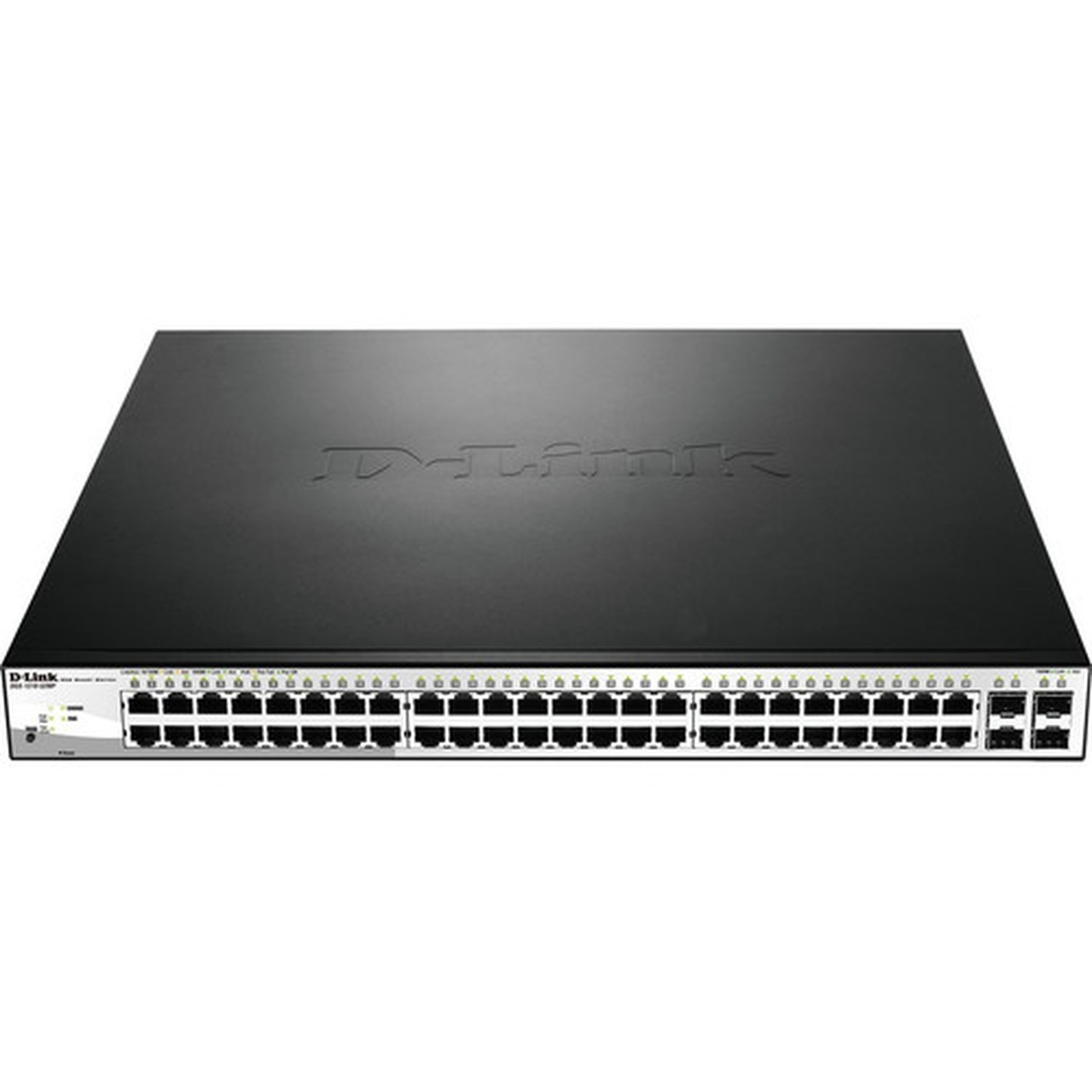

D-Link DGS-1210-52MP 52-Port Gigabit Managed Ethernet Switch - Layer 3 - 48 PoE Ports - 370W Budget - 4 SFP Slots - 1U Rackmount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Built on Gigabit Ethernet technology, the DGS-1210-52MP supports 10/100/1000Base-T over twisted pair and 1000Base-X for optical fiber connections via its four dedicated SFP slots. This dual-media support provides flexibility for integrating fiber uplinks or connecting to fiber-based network segments, enhancing backbone connectivity options.
The switch operates at Layer 3, supporting advanced routing protocols for improved network performance, traffic management, and segmentation compared to basic Layer 2 switches. It is fully manageable, offering granular control over network setup, VLAN configuration, QoS policies, and security features through a comprehensive suite of supported IEEE networking standards, including 802.3at/af for PoE.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The DGS-1210-52MP stands out with its high port density and substantial PoE budget, eliminating the need for separate power injectors and simplifying cable management for PoE deployments. Its Layer 3 functionality introduces routing intelligence directly at the switch level, reducing reliance on core routers for inter-VLAN traffic and improving overall network efficiency.
High-Density PoE Ready
With 48 PoE ports and a 370W budget, this switch can power and connect dozens of PoE devices from a single unit, ideal for modern offices with extensive wireless and security infrastructure.
- Eliminates separate power supplies
- Simplifies installation and cabling
- Supports PoE+ (802.3at) for higher-power devices
Flexible Connectivity & Expansion
Four SFP slots provide essential uplink flexibility, allowing for fiber connections to extend network reach or aggregate bandwidth. The switch supports both rack and desktop placement.
- Fiber uplink capability
- 1U rackmount or desktop deployment
- Dual voltage input (120/230V AC)
Deployment / Use Cases
This switch is optimally deployed as a core access-layer switch in medium to large business networks, educational campuses, or retail environments where a high concentration of wired and PoE devices is required. Its manageability and Layer 3 features make it suitable for networks that require segmentation into multiple VLANs for security or departmental isolation.
Common use cases include serving as the primary switch in a wiring closet supporting an entire office floor, powering a deployment of IP cameras and access points for a security and wireless network, or acting as a managed distribution switch in a branch office requiring local routing and policy enforcement.
Physical Profile
The switch features a compact 1U form factor with dimensions of 17.32" (L) x 16.93" (W) x 1.73" (H), making it standard for 19-inch equipment racks. Its weight of approximately 12.74 lb ensures stable mounting. The built-in power supply with universal 120/230V AC input and low 48.90W typical power consumption contributes to reliable operation and energy efficiency in always-on network environments.
- Width
- 16.93" (430 mm)
- Height
- 1.73" (44 mm)
- Weight
- 12.74 lb (5780 g)
- Length
- 17.32" (440 mm)
Highlights
- 52 total network ports for high-density device connectivity.
- 48 PoE+ ports with a robust 370W total power budget.
- Layer 3 managed switching for advanced routing and network control.
- Four SFP (mini-GBIC) slots for fiber optic uplink expansion.
- 1U rack-mountable design, also suitable for desktop placement.
- Supports Gigabit Ethernet over twisted pair and fiber (1000Base-X).
- Comprehensive IEEE standards support including 802.3at/af for PoE.
- Dual voltage input (120/230V AC) for global deployment flexibility.
Specifications
| Specifications | |
|---|---|
| Manufacturer | D-Link Systems, Inc |
| Manufacturer Part Number | DGS-1210-52MP |
| Brand Name | D-Link |
| Product Series | DGS-1210 |
| Product Model | DGS-1210-52MP |
| Product Name | DGS-1210-52MP Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 52 |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Stack Port | No |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet PoE,4 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4.0 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Shared SFP Slot | No |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3at,IEEE 802.3af,IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3x,IEEE 802.3z |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 370 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply |
| Power Consumption | 48.90 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Desktop,Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 16.93" (430 mm) |
| Length | 17.32" (440 mm) |
| Weight (Approximate) | 12.74 lb (5780 g) |
| Miscellaneous | |
| Country of Origin | China |
| TAA Compliant | No |
FAQ
How many devices can this switch power using PoE?
The DGS-1210-52MP has 48 ports that support Power over Ethernet (PoE/PoE+). With a total PoE budget of 370 watts, it can simultaneously power dozens of compatible devices like IP phones, wireless access points, and security cameras. The exact number of devices depends on the individual power draw of each connected device, as the switch intelligently allocates power up to its 370W limit.
What is the difference between Layer 2 and Layer 3 switching on this model?
This switch supports Layer 3 (network layer) switching, which goes beyond basic Layer 2 (data link layer) frame forwarding. Layer 3 capability allows the switch to perform IP routing between different VLANs or subnets internally, enabling features like inter-VLAN routing without needing a separate router. This improves network performance, simplifies design, and provides better traffic management and security policies compared to a standard Layer 2 switch.
Can I use fiber optic connections with this switch?
Yes. The DGS-1210-52MP includes four dedicated SFP (Small Form-factor Pluggable) slots, also known as mini-GBIC slots. You can install compatible SFP transceiver modules to convert these ports to fiber optic connections (1000Base-X), such as Gigabit Ethernet over fiber. This allows for long-distance uplinks to other switches or network equipment, immunity to electromagnetic interference, and connectivity to fiber-based network segments.
Is this switch manageable, and what features does management offer?
Yes, this is a fully manageable Ethernet switch. Management capabilities provide control over the network setup, configuration, monitoring, and security. You can configure VLANs to segment network traffic, set up Quality of Service (QoS) to prioritize critical data, manage the PoE budget per port, implement security features like port security and access control lists, and monitor switch performance and status through a web interface, command line, or SNMP.
What are the rack mounting specifications for this switch?
The DGS-1210-52MP is designed for standard 19-inch equipment racks and occupies 1 rack unit (1U) of vertical space. Its dimensions are 17.32 inches in depth, 16.93 inches in width, and 1.73 inches in height (44 mm). It includes the necessary hardware for secure rack mounting. The switch also supports desktop placement, offering flexibility for deployments outside of a dedicated rack environment, such as in smaller offices or temporary setups.
What networking standards does this switch comply with?
The switch supports a comprehensive set of IEEE Ethernet standards to ensure interoperability and advanced functionality. Key standards include IEEE 802.3at (PoE+) and 802.3af (PoE) for power delivery, IEEE 802.3ab (1000Base-T) and 802.3z (1000Base-X) for Gigabit Ethernet, IEEE 802.3u for Fast Ethernet, IEEE 802.3x for flow control, and IEEE 802.3az for Energy Efficient Ethernet. This broad compliance guarantees reliable performance in mixed-vendor network environments.
