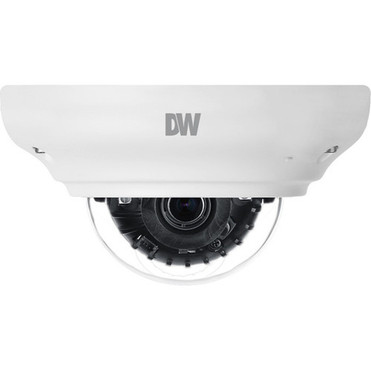

Digital Watchdog DWC-MV72DI4TW MEGApix 2. 1MP Outdoor Dome IP Camera - 1080p - 80ft Night Vision - H. 265/H. 264/MJPEG - IP67 - IK10 - TAA Compliant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera leverages a fixed 4 mm lens with an f/2 maximum aperture and an 84° field of view, providing a balanced perspective for monitoring entrances, parking lots, or perimeter areas. The CMOS image sensor offers efficient power consumption and cost-effective performance compared to CCD alternatives, while delivering high-definition video that meets modern surveillance standards.
Video processing includes dual-stream capability, allowing simultaneous recording at different resolutions or bitrates for live viewing and archival purposes. The camera supports a wide dynamic range (D-WDR) to handle challenging lighting conditions, 3D digital noise reduction for cleaner low-light footage, and automatic features like gain control, white balance, and backlight compensation to maintain image consistency.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The DWC-MV72DI4TW stands out with its combination of high-resolution imaging, rugged construction, and advanced video features tailored for professional security installations. Its outdoor-ready design and comprehensive mounting options make it versatile for various surveillance scenarios.
Enhanced Video Efficiency
H.265 encoding reduces bandwidth and storage requirements by up to 50% compared to H.264, while maintaining 1080p quality. This is critical for multi-camera systems where network and storage costs are a concern.
- Supports H.265, H.264, MJPEG
- Dual-stream capability
- 30 fps at 1080p
Superior Durability
Rated IK10 for impact resistance and IP67 for dust and water ingress, this camera withstands physical attacks and extreme weather, ensuring continuous operation in outdoor or high-traffic areas.
- IK10 impact rating
- IP67 waterproof
- Operates from -4°F to 122°F
Intelligent Imaging Features
Built-in privacy masking, motion detection, and day/night functionality allow for customizable surveillance setups. The camera automatically adjusts to lighting changes with D-WDR and noise reduction.
- Privacy masking zones
- Motion detection alerts
- Auto day/night switching
Deployment / Use Cases
This camera is ideal for commercial, industrial, and institutional settings where reliable outdoor monitoring is essential. Its TAA compliance makes it suitable for government or public-sector projects requiring adherence to trade agreement regulations.
Common applications include perimeter security for warehouses, parking lot surveillance at retail centers, entryway monitoring for office buildings, and general outdoor area coverage at schools or hospitals. The multiple mount types—pole, bracket, ceiling, wall, gang plate, gang box, and junction box—provide flexibility for installation on various surfaces and structures.
Retail & Commercial Security
Monitor storefronts, loading docks, and parking areas with clear 1080p video. The dome design deters tampering, while night vision ensures 24/7 coverage.
- 80 ft night vision
- Vandal-resistant dome
- Wide 84° field of view
Critical Infrastructure Protection
Deploy in utility sites, transportation hubs, or manufacturing plants where environmental durability and reliable video are paramount. The IP67 rating handles rain, snow, and dust.
- IP67 weatherproof
- -4°F to 122°F range
- 12V DC power input
Physical Profile
The camera features a low-profile dome form factor that blends discreetly into architectural settings while providing a deterrent effect. Weighing approximately 14.08 ounces (399.16 grams), it is lightweight yet robust, with a solid construction that supports various mounting orientations. The included fixed lens simplifies installation, and the compact design minimizes visual obstruction while maximizing coverage area.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 14.08 oz (399.16 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 14.08 oz (399.16 g)
- Length
- 4 mm (0.16")
Highlights
- 2.1MP CMOS sensor delivers 1080p HD video at 30 fps
- 80 ft (24.38 m) night vision range for 24/7 surveillance
- IP67 waterproof and IK10 impact-resistant dome housing
- Supports H.265, H.264, and MJPEG video compression
- Wide 84° field of view with fixed 4 mm lens
- Multiple mount options: pole, bracket, ceiling, wall, gang box
- TAA compliant for government and public-sector projects
- 5-year limited warranty for long-term reliability
- Remote management capability via wired network connection
- RoHS compliant and environmentally friendly
Specifications
| Specifications | |
|---|---|
| Manufacturer | Digital Watchdog |
| Manufacturer Part Number | DWC-MV72DI4TW |
| Brand Name | Digital Watchdog |
| Product Line | MEGApix |
| Product Model | DWC-MV72DI4TW |
| Product Name | 2.1MP/1080p Ultra Low-Profile Vandal Dome IP Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Night Vision Distance | 80 ft (24.38 m) |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | 84° |
| Effective Camera Resolution | 2.1 Megapixel |
| Video | |
| Video Formats | H.265,H.264,MJPEG |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 4 mm (0.16") |
| Lens Included | Yes |
| Maximum Aperture | f/2 |
| Exposure | |
| Shortest Shutter Speed | 1/32000 Second |
| Longest Shutter Speed | 1/30 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Mount Type | Pole Mount,Bracket Mount,Ceiling Mount,Gang Plate,Gang Box Mount,Wall Mount,Junction Box Mount |
| Form Factor | Dome |
| Durability | Impact Resistant,Water Proof |
| Weight (Approximate) | 14.08 oz (399.16 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Privacy Masking,Dual Stream,Day/Night,Digital Wide Dynamic Range (D-WDR),3D Digital Noise Reduction,Auto Gain Control,Back Light Compensation (BLC),Automatic White Balance,Motion Detection |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the video resolution and frame rate of this camera?
The Digital Watchdog DWC-MV72DI4TW captures 2.1-megapixel video at a maximum resolution of 1920 x 1080 (1080p full HD). It records at up to 30 frames per second, providing smooth, detailed footage suitable for security monitoring and evidence review.
How far does the night vision reach?
This camera offers night vision up to 80 feet (24.38 meters). It uses infrared technology to provide clear black-and-white imaging in low-light or complete darkness, ensuring reliable surveillance around the clock.
Is this camera suitable for outdoor use?
Yes, the camera is designed for outdoor deployment. It has an IP67 rating for dust and water resistance, an IK10 impact protection rating, and operates in temperatures from -4°F to 122°F (-20°C to 50°C), making it durable in harsh environments.
What video compression formats does it support?
The camera supports H.265, H.264, and MJPEG compression. H.265 offers high efficiency for reduced bandwidth and storage needs, while H.264 ensures compatibility with most systems. MJPEG provides still-image capture options.
What mounting options are available?
It supports multiple mount types, including pole, bracket, ceiling, gang plate, gang box, wall, and junction box mounts. This flexibility allows installation on various surfaces and structures to achieve optimal viewing angles.
Does this camera include any advanced imaging features?
Yes, it includes privacy masking, motion detection, dual-stream capability, digital wide dynamic range (D-WDR), 3D digital noise reduction, auto gain control, backlight compensation, and automatic white balance. These features enhance video quality and adaptability in changing lighting conditions.
What display size or resolution is listed?
It features a display specification of 2.1 Megapixel, giving you clear visuals for work and media use.
