Eaton 5P1500RT 5P 1440 VA 1.44 kW UPS - 2U Rack/Tower Mountable - 8 Outlets - 110V Input - 132V Output - 3 Min Full Load Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview

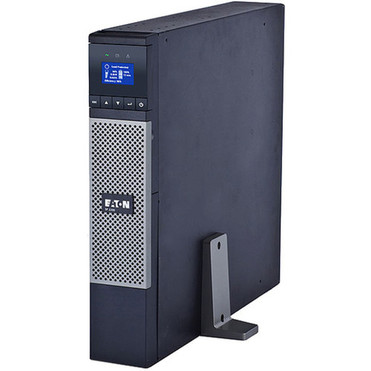

The Eaton 5P 1440 VA UPS delivers reliable line-interactive power protection for critical IT equipment in rack or tower configurations. With 1.44 kVA/1.44 kW capacity, this unit provides sufficient power for servers, networking gear, and workstations during voltage fluctuations and brief outages. Its 2U form factor installs seamlessly in standard server racks or operates as a standalone tower using included pedestals, offering deployment flexibility for diverse IT environments.
Designed for operational efficiency, the maintenance-free lead-acid batteries support hot-swappable replacement, minimizing downtime during battery maintenance cycles. The unit features eight NEMA 5-15R outlets for comprehensive equipment connectivity, ensuring reliable power distribution to multiple devices. With a 3-minute full load runtime, it provides adequate time for graceful system shutdowns during extended power interruptions, protecting data integrity and hardware from abrupt power loss.
The Eaton 5P series incorporates Advanced Battery Management (ABM) technology with three-stage charging, which increases internal battery life by 50% compared to conventional methods. This UPS also delivers 20% more wattage than traditional systems of comparable VA rating, offering enhanced device protection capacity. The graphical LCD interface provides real-time status monitoring, while serial and USB connectivity enable integration with power management software for comprehensive oversight.
Technical Overview
This Eaton 5P series UPS employs line-interactive topology with a 4 ms transfer time, ensuring smooth transition to battery power during input voltage anomalies. The unit accepts 110 V AC input and delivers regulated 132 V AC output through eight NEMA 5-15R outlets, providing stable power to connected equipment. Its identical VA and watt ratings at 1.44 kVA and 1.44 kW indicate high power factor efficiency, allowing for full utilization of the 1,440-watt capacity without derating considerations.
Advanced Battery Management (ABM) technology implements three-stage charging to optimize battery health and extend service life, reducing maintenance frequency and costs. The hot-swappable battery design enables replacement without powering down connected devices, ensuring continuous operation during maintenance. The graphical LCD interface displays critical UPS parameters and load status at a glance, while serial and USB ports facilitate connection to management software for monitoring and control.
Optional NETWORK-M2 Gigabit network card compatibility adds remote monitoring and management capabilities, making this unit suitable for distributed IT infrastructure requiring centralized power oversight. The UPS includes Eaton Intelligent Power Software Suite for enhanced configuration and monitoring, supporting automated shutdown procedures and real-time alerts. With a 3-year limited warranty covering defects in materials and workmanship, this product offers reliable long-term protection for critical systems.
Key Product Advantages
The Eaton 5P 1440 VA UPS combines robust power protection with operational flexibility. Its dual rack/tower mounting capability accommodates diverse IT environments, from data center racks to office equipment closets.
Extended Battery Life
Exclusive ABM technology with three-stage charging increases internal battery life by 50% compared to conventional charging methods.
- Optimized charging cycles
- Reduced battery stress
- Longer service intervals
Enhanced Power Delivery
Provides 20% more wattage than traditional UPS systems of comparable VA rating, offering greater device protection capacity.
- Higher power efficiency
- Better equipment coverage
- Reduced overload risk
Intuitive Monitoring
Five-button graphical LCD displays critical UPS parameters and load status at a glance, simplifying operational oversight.
- Real-time metrics
- Visual status indicators
- Quick configuration access
Deployment / Use Cases
The Eaton 5P 1440 VA UPS serves as primary power protection for small to medium server installations, network closets, and critical workstation environments. Its 3-minute full load runtime provides sufficient time for graceful system shutdowns during extended outages, protecting data integrity and preventing hardware damage. The dual rack/tower mounting capability accommodates diverse IT setups, from data center racks to office equipment closets, ensuring flexible deployment across various organizational needs.
This UPS is ideal for protecting 1-2 rack-mounted servers and associated networking equipment, offering reliable backup power for automated shutdown procedures. It secures switches, routers, and communication equipment against power disturbances that could disrupt network connectivity, maintaining operational continuity in business-critical environments. The unit's eight NEMA 5-15R outlets support multiple devices, making it suitable for consolidated power management in server rooms or network infrastructure hubs.
Optional NETWORK-M2 Gigabit network card compatibility enables remote monitoring and management, enhancing suitability for distributed IT infrastructure requiring centralized power oversight. This feature allows IT administrators to monitor power status, configure settings, and receive alerts from remote locations, improving operational efficiency and response times. The UPS's compact 2U design optimizes rack space utilization, making it a practical choice for environments with limited physical footprint while delivering robust power protection.
Server Room Protection
Ideal for protecting 1-2 rack-mounted servers and associated networking equipment with sufficient runtime for automated shutdown procedures, ensuring data integrity and hardware safety during power outages.
Network Infrastructure
Secures switches, routers, and communication equipment against power disturbances that could disrupt network connectivity, maintaining operational continuity in business-critical environments.
Physical Profile
The compact 2U design measures 3.39" (86 mm) in height, 17.36" (441 mm) in width, and 20.55" (522 mm) in depth, optimizing rack space utilization in standard server enclosures. At 65 lb, the unit includes integrated handles and mounting hardware for secure installation in four-post server racks, facilitating straightforward deployment in data center environments. The form factor supports both rack and tower configurations, with included pedestals enabling standalone use where rack mounting is not feasible.
The physical dimensions ensure compatibility with most 19-inch server racks, while the weight distribution and construction provide stability during operation. The design incorporates ventilation for efficient heat dissipation, maintaining optimal performance during extended use. The unit's footprint is practical for deployment planning, helping confirm rack, shelf, or cabinet fit before installation to avoid spatial conflicts in IT infrastructure layouts.
- Width
- 17.36" (441 mm)
- Depth
- 20.55" (522 mm)
- Height
- 3.39" (86 mm)
- Weight
- 65 lb (29483.50 g)
What's in the Box
The package includes all necessary components for immediate deployment in either rack or tower configuration.
Highlights
- 1.44 kVA/1.44 kW line-interactive UPS capacity
- 2U rack/tower mountable form factor
- 8 NEMA 5-15R outlets for equipment connectivity
- 3-minute full load runtime (11 minutes at half load)
- Hot-swappable maintenance-free lead-acid batteries
- 110 V AC input with 132 V AC regulated output
- Serial and USB ports for monitoring and control
- 5-button graphical LCD for status display
- Advanced Battery Management extends battery life
- 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 5P1500RT |
| Brand Name | Eaton |
| Product Series | 5P |
| Product Name | 5P 1440 VA Tower/Rack Mountable UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Transfer Time | 4 ms |
| Power Description | |
| Load Capacity (VA) | 1.44 kVA |
| Load Capacity (Watt) | 1.44 kW |
| Input Voltage | 110 V AC |
| Output Voltage | 132 V AC |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| Battery Information | |
| Battery Characteristics | Maintenance-free |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 11 Minute |
| Hot Swappable | Yes |
| Physical Characteristics | |
| Height | 3.39" (86 mm) |
| Width | 17.36" (441 mm) |
| Depth | 20.55" (522 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 65 lb (29483.50 g) |
| Miscellaneous | |
| Package Contents | 5P 1440 VA Tower/Rack Mountable UPS User Manual CD Tower Pedestals Intelligent Power Software Suite CD Quick Start Guide RS-232 Serial Cable USB Cable Phillips Head Screw Driver Four-Post Rail Kit |
| Software Included | Eaton Intelligent Power Software Suite |
| Country of Origin | Philippines |
| Warranty | |
| Limited Warranty | 3 Year |
