Eaton 5P1550GR-L 5P Series UPS - 1. 55 kVA/1. 10 kW Line-Interactive - 1U Rack-mountable - Wall Mountable - 6 IEC Outlets
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Eaton 5P Series UPS employs line-interactive topology, which regulates incoming voltage and switches to battery power during outages without interruption. The unit accepts 230 V AC input and delivers output voltages configurable between 200 V AC and 240 V AC, accommodating various regional power standards and equipment requirements.
Network management capabilities are supported via an RJ-45 port, enabling integration with monitoring systems. The internal battery system features advanced charging technology to extend battery life and reduce recharge times. Physical dimensions of 17.20" width, 21.80" depth, and 1.70" height ensure compatibility with standard 19-inch rack enclosures while maintaining a minimal footprint.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Eaton 5P1550GR-L combines robust power protection with flexible installation options, making it an ideal choice for IT infrastructure that demands both reliability and space efficiency. Its design prioritizes long-term value through extended battery life and comprehensive warranty coverage.

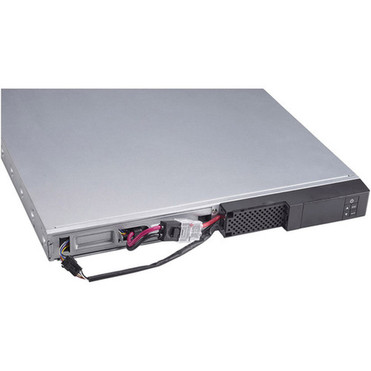

Advanced Battery Management
Exclusive ABM technology with 3-stage charging increases internal battery life by up to 50% compared to conventional charging methods, reducing maintenance frequency and total cost of ownership.
- 3 times faster recharge after disruptions
- Lithium-ion batteries with up to 3x longer lifespan
Installation Flexibility

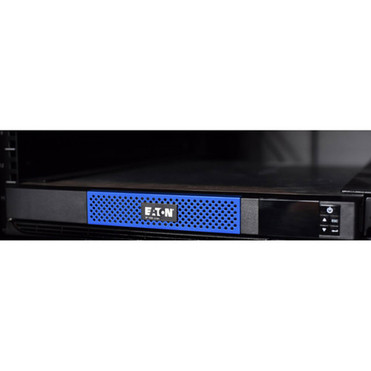

Dual mounting capabilities allow deployment as a 1U rack-mounted unit or wall-mounted appliance, adapting to diverse data center, server room, and edge computing environments.
- Includes 4-post rail kit for rack mounting
- Compact 1U profile maximizes rack space
Comprehensive Connectivity

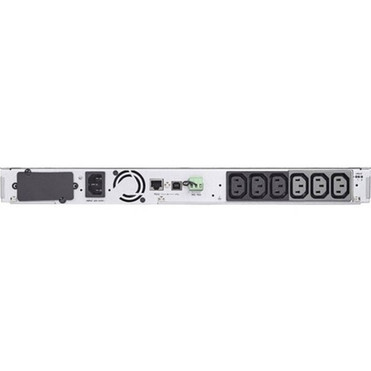

Six IEC 60320 C13 outlets support multiple devices simultaneously, while locking systems for input and output cables prevent accidental disconnections in high-vibration environments.
- Includes 2 IEC-to-IEC jumper cables
- Output and input cable locking systems included
Deployment / Use Cases
This UPS is engineered for environments where power quality and availability directly impact operational continuity. Its 1.55 kVA capacity and multiple output voltage settings make it suitable for protecting mixed-voltage equipment in international deployments or facilities with legacy power systems.
Typical applications include network racks housing switches, routers, and servers; telecommunications cabinets requiring stable power for voice and data equipment; and industrial control systems where voltage fluctuations could disrupt sensitive electronics. The optional NETWORK-M2 Gigabit network card enables remote monitoring and management, extending its utility to distributed IT infrastructure and unmanned sites.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The Eaton 5P1550GR-L features a rugged steel construction with dimensions optimized for standard 19-inch rack enclosures. At 1.70" (43.18 mm) tall, it occupies minimal vertical space while providing substantial power capacity. The 34.61 lb (15700 g) weight reflects robust internal components and battery capacity. Front-panel indicators provide at-a-glance status monitoring, and the unit's design facilitates both front-to-back and back-to-front airflow configurations in rack environments.
- Width
- 17.20" (436.88 mm)
- Depth
- 21.80" (553.72 mm)
- Height
- 1.70" (43.18 mm)
- Weight
- 34.61 lb (15700 g)
What's in the Box
The package includes all necessary components for immediate deployment and ongoing management.
Highlights
- 1.55 kVA/1.10 kW line-interactive UPS for reliable power protection
- 1U rack-mountable and wall-mountable design for space-efficient deployment
- Six IEC 60320 C13 outlets with locking systems for secure connections
- Wide input voltage range (160-294 V AC) handles unstable power conditions
- Five configurable output voltages (200-240 V AC) support global equipment
- Advanced Battery Management extends battery life by up to 50%
- 3 times faster recharge reduces vulnerability after power disruptions
- RJ-45 port enables network management and monitoring integration
- 5-year limited warranty provides long-term protection assurance
- Energy Star certified and RoHS compliant for environmental responsibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 5P1550GR-L |
| Brand Name | Eaton |
| Product Series | 5P |
| Product Name | 5P UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | IEC 60320 C14 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 6 x IEC 60320 C13 |
| Power Description | |
| Load Capacity (VA) | 1.55 kVA |
| Load Capacity (Watt) | 1.10 kW |
| Input Voltage | 230 V AC |
| Input Voltage Range | 160 V AC - 294 V AC |
| Output Voltage | 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Height | 1.70" (43.18 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 21.80" (553.72 mm) |
| Rack Height | 1U |
| Form Factor | Rack-mountable,Wall Mountable |
| Weight (Approximate) | 34.61 lb (15700 g) |
| Miscellaneous | |
| Package Contents | 5P UPS Quick Start Guide USB Cable RS-232 Serial Cable 4-post Rail Kit 2 IEC-to-IEC Jumper Cables Output Cable Locking System Input Cable Locking System |
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the power capacity of this Eaton UPS?
The Eaton 5P1550GR-L delivers 1.55 kVA (kilovolt-amperes) and 1.10 kW (kilowatts) of power capacity. This line-interactive UPS can support multiple servers, networking devices, or other critical equipment simultaneously during power outages or voltage fluctuations, providing sufficient runtime for safe shutdown procedures.
Can this UPS be mounted in a standard server rack?
Yes, this UPS is designed for 1U rack mounting in standard 19-inch server racks. The package includes a 4-post rail kit for secure installation. Additionally, the unit supports wall mounting for environments where rack space is unavailable or where wall deployment is preferred for accessibility or space optimization.
How many devices can I connect to this UPS?
The UPS features six IEC 60320 C13 outlets, allowing you to connect up to six compatible devices. Each outlet supports standard IEC power cables commonly used with servers, network switches, storage arrays, and other IT equipment. Locking systems for both input and output cables are included to prevent accidental disconnections.
What input voltage does this UPS require?
The UPS is designed for 230 V AC input but operates within a wide input voltage range of 160 V AC to 294 V AC. This broad range allows it to function reliably in areas with unstable power grids or voltage sags, automatically correcting minor fluctuations without switching to battery power unnecessarily.
What output voltages does this UPS provide?
The UPS offers five configurable output voltage settings: 200 V AC, 208 V AC, 220 V AC, 230 V AC, and 240 V AC. This flexibility makes it suitable for protecting equipment designed for different regional power standards or legacy systems that require specific voltage levels, ensuring compatibility across diverse deployments.
How can I monitor and manage this UPS remotely?
The UPS includes an RJ-45 port for network connectivity, enabling integration with network management systems. For full remote access and control, an optional NETWORK-M2 Gigabit network card can be added. This allows monitoring of power status, battery health, and environmental conditions from any network location, facilitating proactive maintenance and reducing onsite visits.
What power capacity is listed for this UPS?
The listed power specification is 1.55 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 230 V AC, which helps position the unit for the right load level and installation role.
