Eaton 9PXPPDM1 3U PowerPass Distrbution Module - NEMA L14-30R, NEMA L6-30R, 6 x NEMA 5-20R - 3U - Rack Mount (9PXPPDM1)

Marketing Information:

208V to 120V Power Distribution Module Converts High-Voltage Input to Low-Voltage Output

The 9PXPPDM1 converts your UPS system's 208V high-voltage input to 120V low-voltage output. It features one L6-30R, one L14-30R and six NEMA 5-20R outlets for connecting equipment with resettable 30A circuit breakers protecting against overload conditions.

Compatible with Select Eaton 5kVA/6kVA 9PX UPS Systems

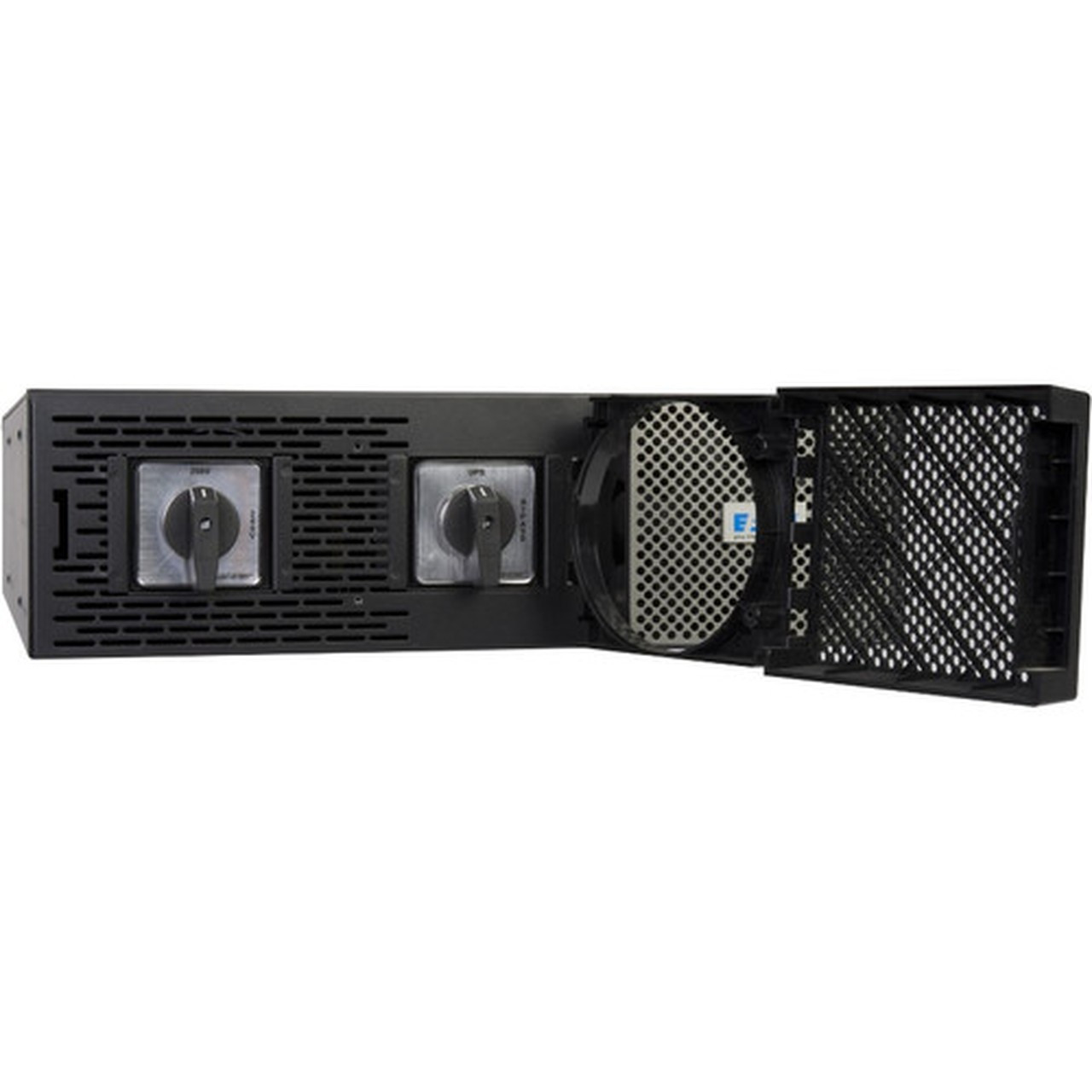

The 9PXPPDM1 works with Eaton's 9PX5K, 9PX6K and 9PX3K3UN 9PX UPS systems. Its front-panel maintenance bypass switch lets you service or replace the UPS system without powering down any equipment and risking costly downtime. All connected equipment remains protected against power surges and spikes, even while the UPS system is not present.

Versatile Installation Options

You can mount the 9PXPPDM1 in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the included joining bracket and hardware. The six-foot power cord with L6-30P plug connects to a compatible AC outlet.

Receptacle Type: NEMA L14-30R,NEMA L6-30R,NEMA 5-20R

Receptacle Detail: 6 x NEMA 5-20R

Mount Type: Rack-mountable

Rack Height: 3U

Height: 5.10" (129.54 mm)

Width: 17.30" (439.42 mm)

Depth: 25.40" (645.16 mm)

Package Contents:

• 9PXPPDM1 3U PowerPass Distrbution Module
• 4-Post Rail Kit
• Quick Start Guide
• Joining Brackets for Tower Configuration
• EBM Connector Cable

Country of Origin: Philippines

Limited Warranty: 3 Year
