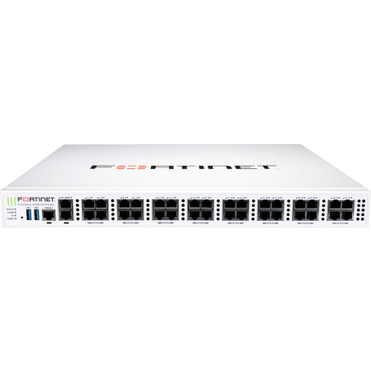

Fortinet FG-400E-BYPASS-BDL-950-12 FortiGate FG-400E-BYPASS Network Security Firewall Appliance - 34 Port Gigabit Ethernet - 500 VPN - 1U
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The FG-400E-BYPASS operates on Gigabit Ethernet technology with 10/100/1000Base-T auto-negotiation across all 32 RJ-45 network ports, plus two additional ports for a total of 34 interfaces. It includes a USB port for management or storage expansion. The device supports AES-256 and SHA-256 encryption standards for robust data protection in VPN and traffic inspection scenarios.
Firewall protection encompasses multiple layers: application control, threat protection, malware defense, SSL inspection, and botnet detection. Cloud sandboxing and endpoint protection integration extend security beyond the network perimeter. The appliance is fully manageable via Fortinet's centralized management platforms, with 24/7 FortiCare and FortiGuard UTP support included.
This section brings together practical product details such as Firewall Protection Supported, Encryption Standard, Number of VPN Supported, Total Number of Ports, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This FortiGate model consolidates multiple security functions into a single 1U appliance, reducing infrastructure complexity while maintaining high throughput for departmental traffic. The 34-port design accommodates numerous connected devices without requiring additional switches, making it ideal for consolidated network security deployments.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Comprehensive Security Suite, High-Density Connectivity.
Comprehensive Security Suite
Integrates web content filtering, antivirus, anti-spam, application control, intrusion prevention, and deep inspection firewall capabilities in one platform.
- Threat protection
- Malware prevention
- SSL inspection
High-Density Connectivity
Provides 32 Gigabit Ethernet RJ-45 ports plus additional interfaces for flexible network segmentation and device connectivity.
- 34 total ports
- Gigabit speed
- Auto-negotiation
Deployment / Use Cases
The FG-400E-BYPASS is designed for departmental network perimeters where consolidated security and high port density are required. It serves as a primary security gateway for medium-sized offices, branch locations, or specialized workgroups handling sensitive data.
Typical deployments include securing financial transaction networks, protecting healthcare data environments, or providing VPN concentrator functionality for remote workforce connectivity. The rack-mountable form factor integrates seamlessly into standard data center cabinets alongside other networking equipment.
This section brings together practical product details such as Firewall Protection Supported, Encryption Standard, Number of VPN Supported, Total Number of Ports, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Departmental Security Gateway
Protects entire departmental networks with unified threat management, application control, and VPN termination for up to 500 remote connections.
Branch Office Consolidation
Combines firewall, VPN, and security services in one appliance to simplify branch office infrastructure while maintaining enterprise-grade protection.
Physical Profile
The appliance features a standard 1U rack-mountable form factor measuring 1.75 inches (44.45 mm) in height, 17 inches (431.80 mm) in width, and 16.91 inches (429.51 mm) in depth. With an approximate weight of 19.72 pounds (8944.84 g), it installs easily into standard 19-inch rack cabinets using front-mount brackets. The compact design maximizes rack space efficiency while providing substantial port density and processing capability.
- Width
- 17" (431.80 mm)
- Depth
- 16.91" (429.51 mm)
- Height
- 1.75" (44.45 mm)
- Weight
- 19.72 lb (8944.84 g)
Highlights
- 34 total ports including 32 Gigabit Ethernet RJ-45 interfaces
- 500 concurrent VPN tunnels for secure remote access
- 1U rack-mountable form factor for data center deployment
- AES-256 and SHA-256 encryption for data protection
- Comprehensive firewall protection with deep inspection
- Web content filtering, antivirus, and anti-spam capabilities
- Application control and threat prevention features
- 24/7 FortiCare and FortiGuard UTP support included
- Manageable via Fortinet centralized management platforms
- 50/60 Hz power frequency compatibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | Fortinet, Inc |
| Manufacturer Part Number | FG-400E-BYPASS-BDL-950-12 |
| Brand Name | Fortinet |
| Product Line | FortiGate |
| Product Model | FG-400E-BYPASS |
| Product Name | FortiGate FG-400E-BYPASS Network Security/Firewall Appliance |
| Product Type | Network Security/Firewall Appliance |
| Technical Information | |
| Firewall Protection Supported | Web Content Filtering,Antivirus,Anti-spam,Application Control,Threat Protection,Intrusion Prevention,Malware Protection,Deep Inspection Firewall,Policy Enforcement,SSL Inspection,SSL Encrypted Traffic Protection,Secure IPsec VPN Connectivity,Virus Protection,Outbreak Prevention,Botnet Detection,Cloud Sandboxing,Endpoint Protection |
| Encryption Standard | AES (256-bit),SHA-256 |
| Number of VPN Supported | 500 |
| Interfaces/Ports | |
| Total Number of Ports | 34 |
| USB | Yes |
| Number of Network (RJ-45) Ports | 32 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Standard | 10/100/1000Base-T |
| Wireless Specifications | |
| Wireless LAN | No |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Frequency | 50 Hz,60 Hz |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.75" (44.45 mm) |
| Width | 17" (431.80 mm) |
| Depth | 16.91" (429.51 mm) |
| Weight (Approximate) | 19.72 lb (8944.84 g) |
| Warranty | |
| Limited Warranty | 1 Year |
| Support/Service Duration | 1 Year |
| Support/Service Type | 24x7 FortiCare and FortiGuard UTP |
FAQ
How many network ports does this FortiGate appliance have?
The FortiGate FG-400E-BYPASS has 34 total ports, including 32 Gigabit Ethernet RJ-45 network ports that support 10/100/1000Base-T auto-negotiation. This high port count allows direct connection of numerous network devices without requiring additional switches, making it suitable for departmental deployments with many connected endpoints.
What is the VPN capacity of this security appliance?
This appliance supports up to 500 concurrent VPN tunnels, providing substantial capacity for secure remote access and site-to-site connections. It uses IPsec VPN technology with AES-256 and SHA-256 encryption standards to ensure data confidentiality and integrity across all VPN connections, suitable for organizations with distributed workforces or multiple branch locations.
Is this FortiGate model rack-mountable?
Yes, the FG-400E-BYPASS features a 1U rack-mountable form factor designed for standard 19-inch data center cabinets. It measures 1.75 inches in height, 17 inches in width, and 16.91 inches in depth, with an approximate weight of 19.72 pounds. The rack-mountable design allows efficient space utilization alongside other networking equipment in server rooms or data centers.
What security features are included with this firewall appliance?
The appliance includes comprehensive security features: web content filtering, antivirus, anti-spam, application control, threat protection, intrusion prevention, malware protection, deep inspection firewall, policy enforcement, SSL inspection, SSL encrypted traffic protection, virus protection, outbreak prevention, botnet detection, cloud sandboxing, and endpoint protection. These multiple layers provide defense against various cyber threats across network traffic.
Does this appliance support wireless connectivity?
No, the FortiGate FG-400E-BYPASS does not include built-in wireless LAN capabilities. It is a wired network security appliance focused on Ethernet connectivity through its 34 ports. For wireless security needs, Fortinet offers separate wireless access points and controllers that can integrate with FortiGate firewalls for unified security management across both wired and wireless networks.
What management and support options are available?
The appliance is fully manageable through Fortinet's centralized management platforms. It includes 24/7 FortiCare and FortiGuard UTP support for one year, providing technical assistance, firmware updates, and threat intelligence feeds. The manageable nature allows network administrators to configure security policies, monitor traffic, and respond to threats through a unified management interface.
What throughput, switching capacity, or performance detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What uplink, SFP, fiber, or media support detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
