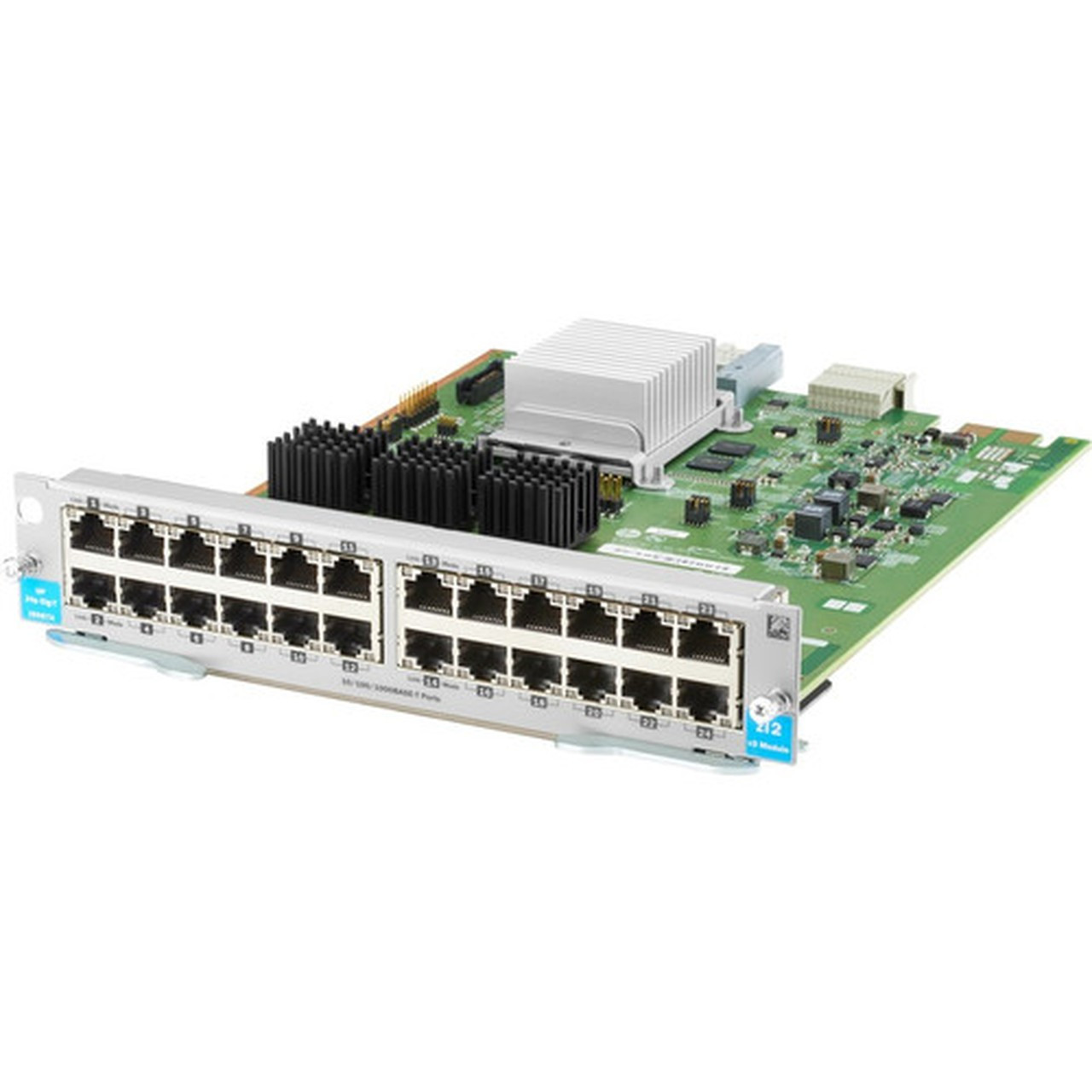

HEWLETT PACKARD ENTERPRIS J9987A HPE 24-port 10/100/1000BASE-T MACsec v3 zl2 Module - 24 x RJ-45 Gigabit Ethernet - Expansion Module
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This expansion module implements 1000Base-T network technology over standard twisted pair cabling, achieving maximum data transfer rates of 1 Gbit/s. Each port supports full-duplex operation, effectively doubling throughput for demanding network traffic.
The MACsec v3 implementation provides hardware-based encryption at the data link layer, securing Ethernet frames against eavesdropping and tampering without significant performance overhead. This security feature is particularly valuable for protecting sensitive data across physical network segments.
Relevant factors for this section include Application/Usage, Total Number of Ports, Connector Type, Interfaces/Ports Details. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The HPE J9987A delivers several distinct advantages for network expansion projects. Its high port density allows consolidation of multiple network connections into a single module slot, optimizing chassis utilization. The integrated MACsec security eliminates the need for additional encryption appliances for link protection.
Performance Enhancement
Provides up to 10x faster throughput compared to standard Fast Ethernet connections, significantly reducing network bottlenecks for data-intensive applications.
- 1 Gbps per port maximum rate
- Full-duplex operation support
- Auto-negotiation across 10/100/1000 Mbps
Security Integration
MACsec v3 implementation offers hardware-accelerated encryption at Layer 2, protecting data integrity and confidentiality without compromising network performance.
- Hardware-based encryption
- Transparent to upper-layer protocols
- Minimal latency impact
Deployment / Use Cases
This expansion module is specifically designed for deployment in HP 5400R zl2 switch series chassis, making it ideal for enterprise network core and distribution layer expansions. It serves as a cost-effective solution for adding high-density Gigabit Ethernet ports to existing switch infrastructure.
Typical use cases include data center network expansions where additional server connectivity is required, campus network deployments needing secure inter-building links, and financial or healthcare environments where regulatory compliance demands encrypted network segments. The module supports both new network builds and gradual infrastructure upgrades.
Data Center Expansion
Adds 24 Gigabit Ethernet ports for server farm connectivity, supporting virtualization environments and storage network extensions.
Secure Network Segmentation
Enables creation of encrypted network segments for sensitive departments like finance or research, protecting data in transit between switches.
Physical Profile
The module measures 1.75" (44.50 mm) in height, 10.30" (261.60 mm) in width, and 8.13" (206.50 mm) in depth, with an approximate weight of 1.74 lb (790 g). This compact form factor maximizes port density within the switch chassis while maintaining efficient thermal characteristics for reliable operation.
- Width
- 10.30" (261.60 mm)
- Depth
- 8.13" (206.50 mm)
- Height
- 1.75" (44.50 mm)
- Weight
- 1.74 lb (790 g)
Highlights
- 24 RJ-45 ports with 10/100/1000BASE-T auto-negotiation
- Gigabit Ethernet technology with 1 Gbps maximum data transfer rate
- MACsec v3 hardware encryption for secure data transmission
- Compatible with HP 5400R zl2 Switch Series chassis
- Twisted pair media support for standard network cabling
- 1000Base-T network technology implementation
- Expansion module form factor for switch chassis integration
- Environmentally friendly design and manufacturing
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | J9987A |
| Brand Name | HPE |
| Product Name | 24-port 10/100/1000BASE-T MACsec v3 zl2 Module |
| Product Type | Expansion Module |
| Packaged Quantity | 1 |
| Technical Information | |
| Application/Usage | Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 24 |
| Connector Type | RJ-45 |
| Interfaces/Ports Details | 24 x RJ-45 1000Base-T LAN |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-T |
| Maximum Data Transfer Rate | 1 Gbit/s |
| Physical Characteristics | |
| Height | 1.75" (44.50 mm) |
| Width | 10.30" (261.60 mm) |
| Depth | 8.13" (206.50 mm) |
| Weight (Approximate) | 1.74 lb (790 g) |
| Miscellaneous | |
| Compatibility | HP 5400R zl2 Switch Series |
| Environmentally Friendly | Yes |
FAQ
What switch series is this expansion module compatible with?
The HPE J9987A is specifically designed for the HP 5400R zl2 Switch Series. It integrates directly into compatible chassis slots on these switches to add 24 Gigabit Ethernet ports with MACsec security. This compatibility ensures seamless operation and management through the switch's existing interface.
What type of security does the MACsec v3 implementation provide?
MACsec v3 provides hardware-accelerated encryption at the data link layer (Layer 2) of the network stack. It secures Ethernet frames between connected devices, protecting against eavesdropping, data tampering, and replay attacks. This security operates transparently to upper-layer protocols and applications while maintaining high performance.
What cabling and media does this module support?
The module supports standard twisted pair cabling (typically Cat5e, Cat6, or higher) through its 24 RJ-45 ports. It implements 1000Base-T network technology, which is designed specifically for Gigabit Ethernet over copper cabling. The ports auto-negotiate between 10, 100, and 1000 Mbps speeds based on connected equipment capabilities.
How does this expansion module benefit network performance?
The module provides Gigabit Ethernet connectivity with 1 Gbps maximum data transfer rate per port, which is up to 10 times faster than standard Fast Ethernet connections. This significantly reduces network bottlenecks for data-intensive applications. The full-duplex operation effectively doubles throughput, while the high port density consolidates connections efficiently within the switch chassis.
