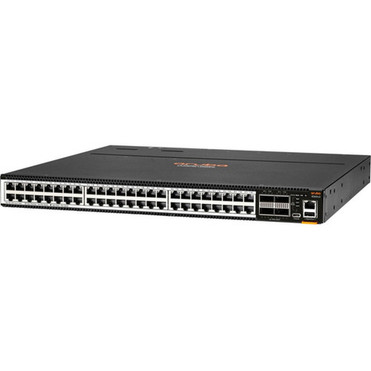

HPE 8360-48XT4C v2 Ethernet Switch - 48 Ports - Manageable - 10 Gigabit Ethernet, 100 Gigabit Ethernet - 10GBase-T, 100GBase-X - 3 - - (R9G13A)

Marketing Information: Aruba CX 8360 v2 Switch Series

The Aruba CX 8360v2 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. They provide up to 4.8Tbps of capacity, with line-rate Gigabit Ethernet interfaces including support for Smart Rate (1/2.5, 5 Gbps), 10Gbps, 25Gbps, 40Gbps, 50Gbps, and 100Gbps.

The 8360v2 series includes industry-leading line rate ports with 1/10/25/50GbE (SFP/SFP+/SFP28) and 40/100 GbE (QSFP+/QSFP28) connectivity in a compact 1U form factor. 4x10Gbps and 4x25Gbps break out from 40/100G ports offer advanced flexibility in connectivity and aggregation. These switches deliver a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or from 10GbE/40GbE uplinks to 50/100GbE ports.

In addition, the switch supports low- density MACsec ports enabling secure connectivity at 10GbE and 25GbE over unsecured domains.

Key Features

• High-performance 4.8Tbps and 2,678 Mpps
• Intelligent monitoring and visibility with Aruba Network Analytics Engine
• High availability with industry leading VSX redundancy, and redundant power supplies and fans
• Designed for core/aggregation in the campus or Top of Rack or End of Row in data center environments
• MACsec secured connectivity over untrusted domains
• ArubaOS-CX automation and programmability using built-in REST APIs and Python scripts
• Advanced Layer 2/3 feature set includes BGP, OSPF, VRF, and IPv6
• 50G support on 8360-48Y6C, 32Y4C and 16Y2C switches
• Addition of Smart Rate (1/2.5/5/10G) ports on the 8360-48XT4C

The Aruba CX 8360 switch series is based on ArubaOS-CX, a modern, database driven operating system that automates and simplifies many critical and complex tasks. The enhanced capabilities of ArubaOS CX provide a unique set of differentiators for campus and data center switching.

Modular Architecture with Native Cloud-Native ArubaOS-CX

ArubaOS-CX is built on a modular Linux architecture with OVSDB, providing the following unique capabilities: Safe and powerful access to all state at all times allows unique visibility and analytics capabilities

Total Number of Network Ports: 48

Network (RJ-45): Yes

Uplink Port: Yes

Modular: Yes

Port/Expansion Slot Details: 48 x 10 Gigabit Ethernet Network,4 x 100 Gigabit Ethernet Expansion Slot

Media Type Supported: Twisted Pair,Optical Fiber

Ethernet Technology: 10 Gigabit Ethernet,100 Gigabit Ethernet

Network Technology: 10GBase-T,100GBase-X

Total Number of Expansion Slots: 4

Expansion Slot Type: QSFP28

Layer Supported: 3

Networking Standards: IEEE 802.1ab,IEEE 802.1ae,IEEE 802.1AEbn,IEEE 802.1AEbw,IEEE 802.1ak,IEEE 802.1AX,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1t,IEEE 802.1v,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3by,IEEE 802.3cc,IEEE 802.3ba,IEEE 802.3cd,IEEE 802.3x,IEEE 802.3z

Manageable: Yes

Input Voltage: 120 V DC,230 V AC

Power Source: Power Supply

Redundant Power Supply Supported: Yes

Number of Power Supplies Supported: 2

Power Consumption: 500 W

Compatible Rack Unit: 1U

Form Factor: Rack-mountable,Cabinet Mount,Surface Mount

Height: 1.73" (43.94 mm)

Width: 17.40" (441.96 mm)

Depth: 16" (406.40 mm)

Weight (Approximate): 18.85 lb (8550.22 g)
