IOGEAR GCS1944 4-Port 4K Dual View DisplayPort KVMP with USB 3.0 Hub and Audio - TAA - 4 Computers - 1 User - 4096 x 2160
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Built on DisplayPort 1.2 technology with HDCP compliance, this KVM switch delivers reliable video signal transmission for dual-monitor setups. The Multi-Stream Transport (MST) capability allows independent switching of KVM, USB, and audio devices, providing flexible control over workstation resources.
With 10 DisplayPort ports and 8 USB 3.0 ports, the GCS1944 offers extensive connectivity options for modern computing environments. The device maintains USB peripheral connectivity on inactive computers, allowing background tasks to continue uninterrupted during KVM switching operations.
Relevant factors for this section include Number of Computers Supported, Number of Local Users Supported, Maximum Video Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The GCS1944 eliminates the need for duplicate peripherals by centralizing control of multiple computers through a single interface. This consolidation reduces desktop clutter, lowers hardware costs, and simplifies workflow management for IT professionals and power users.
High-Resolution Support
Delivers crisp 4K video quality across dual monitors, ensuring detailed visual output for precision work.
- 4096 x 2160 resolution
- 60Hz refresh rate
- Dual monitor capability
Flexible Expansion
Supports daisy-chaining with additional GCS1944 units to expand up to four 4K monitors, providing scalability for growing workstation requirements.
Compliance Ready
TAA compliance makes this switch suitable for government and educational procurement, while RoHS and WEEE certifications demonstrate environmental responsibility.
Deployment / Use Cases
This KVM switch excels in environments where users need to access multiple computers simultaneously without sacrificing performance or workspace efficiency. The dual 4K monitor support makes it particularly valuable for visual professionals who require high-resolution displays for detailed work.
Common deployment scenarios include financial trading floors where traders monitor multiple systems, video production studios editing across different workstations, IT help desks managing numerous test machines, and security operations centers viewing multiple surveillance feeds. The independent switching capability allows users to work on one computer while maintaining USB connectivity on others, perfect for running background processes or downloads.
Physical Profile
The desktop form factor measures 13.90" wide by 6.13" deep by 2.13" high, providing a compact footprint that fits comfortably on most work surfaces. Weighing 3.55 pounds, the unit offers substantial build quality while remaining portable enough for temporary installations or between-desk deployments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2.13" (53.97 mm), 13.90" (353.06 mm), 6.13" (155.57 mm), 3.55 lb (1610.25 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 13.90" (353.06 mm)
- Depth
- 6.13" (155.57 mm)
- Height
- 2.13" (53.97 mm)
- Weight
- 3.55 lb (1610.25 g)

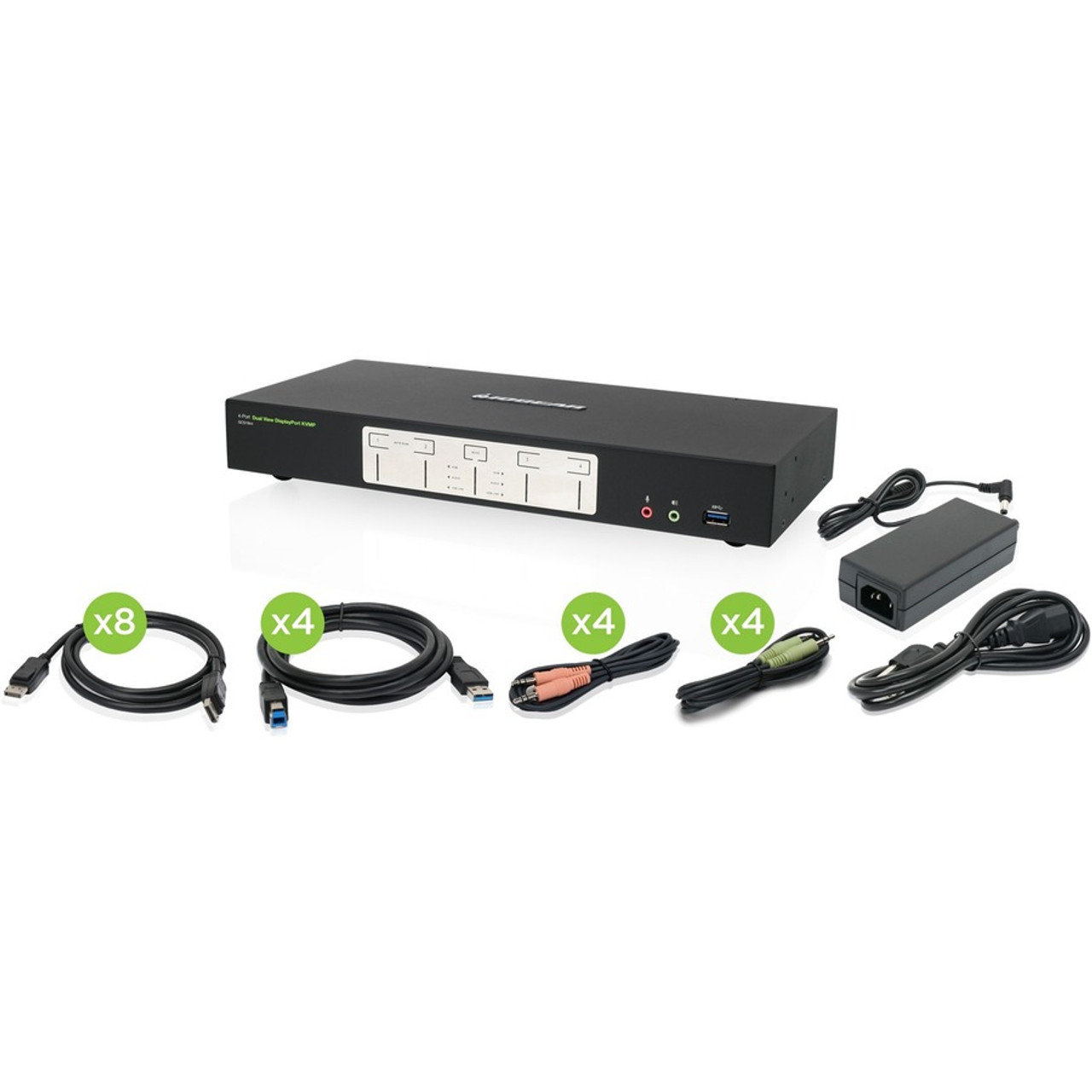

What's in the Box
The GCS1944 comes complete with all necessary cables and accessories for immediate deployment.
Highlights
- Control 4 DisplayPort computers with 1 keyboard, mouse, and dual 4K monitors
- Dual Cinema 4K DisplayPort support at 4096 x 2160 @60Hz resolution
- DisplayPort 1.2 compliant with HDCP support for protected content
- 8-port USB 3.0 hub with SuperSpeed 5Gbps transfer rates
- Independent switching of KVM, USB, and audio devices
- Maintain USB peripheral connectivity on inactive computers
- Expandable by adding another GCS1944 for up to four 4K monitors
- TAA compliant for government and educational procurement
- RoHS and WEEE environmental certifications
- 3-year limited warranty for peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | IOGEAR, Inc |
| Manufacturer Part Number | GCS1944 |
| Brand Name | IOGEAR |
| Product Model | GCS1944 |
| Product Name | 4-Port 4K Dual View DisplayPort KVMP with USB 3.0 Hub and Audio (TAA) |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 4 |
| Number of Local Users Supported | 1 |
| Video | |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| USB | Yes |
| DisplayPort | Yes |
| Number of USB Ports | 8 |
| Number of DisplayPorts | 10 |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 2.13" (53.97 mm) |
| Width | 13.90" (353.06 mm) |
| Depth | 6.13" (155.57 mm) |
| Weight (Approximate) | 3.55 lb (1610.25 g) |
| Miscellaneous | |
| Package Contents | 4-Port 4K Dual View DisplayPort KVMP with USB 3.0 Hub and Audio (TAA) 8 x DisplayPort Cables 4 x USB 3.0 Cables 4 x Audio Cable Set 1 x Power Adapter 1 x Manual |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
How many computers can I connect to the GCS1944 KVM switch?
The IOGEAR GCS1944 supports up to four DisplayPort computers simultaneously. This allows a single user to control multiple systems from one keyboard, mouse, and dual monitor setup, making it ideal for workstation consolidation and multi-system management scenarios.
What video resolution does this KVM switch support?
This switch supports Cinema 4K resolution at 4096 x 2160 pixels with a 60Hz refresh rate. The DisplayPort 1.2 technology ensures reliable transmission of high-resolution video signals to dual monitors, providing crisp visual quality for detailed work in graphic design, video editing, and other precision applications.
Can I use this switch with USB 3.0 peripherals?
Yes, the GCS1944 includes an 8-port USB 3.0 hub with SuperSpeed 5Gbps transfer rates. This allows you to share USB peripherals like external drives, printers, and cameras between all four connected computers. The independent switching feature maintains USB connectivity on inactive computers, so background tasks can continue uninterrupted.
What does TAA compliance mean for this product?
TAA (Trade Agreements Act) compliance indicates that this KVM switch meets U.S. government procurement requirements for products used in federal contracts. This certification makes the GCS1944 suitable for educational institutions, government agencies, and other organizations that must comply with specific sourcing regulations for their technology purchases.
How do I expand beyond two monitors with this setup?
You can daisy-chain additional GCS1944 units to expand your display configuration. By connecting multiple switches together, you can support up to four 4K monitors from the same workstation. This scalability makes the system adaptable to growing visual requirements without replacing your core KVM infrastructure.
What cables and accessories are included with the GCS1944?
The package includes 8 DisplayPort cables, 4 USB 3.0 cables, 4 audio cable sets, a power adapter, and a comprehensive manual. These components provide everything needed for immediate deployment, allowing you to connect all four computers and their associated peripherals without purchasing additional cables separately.
