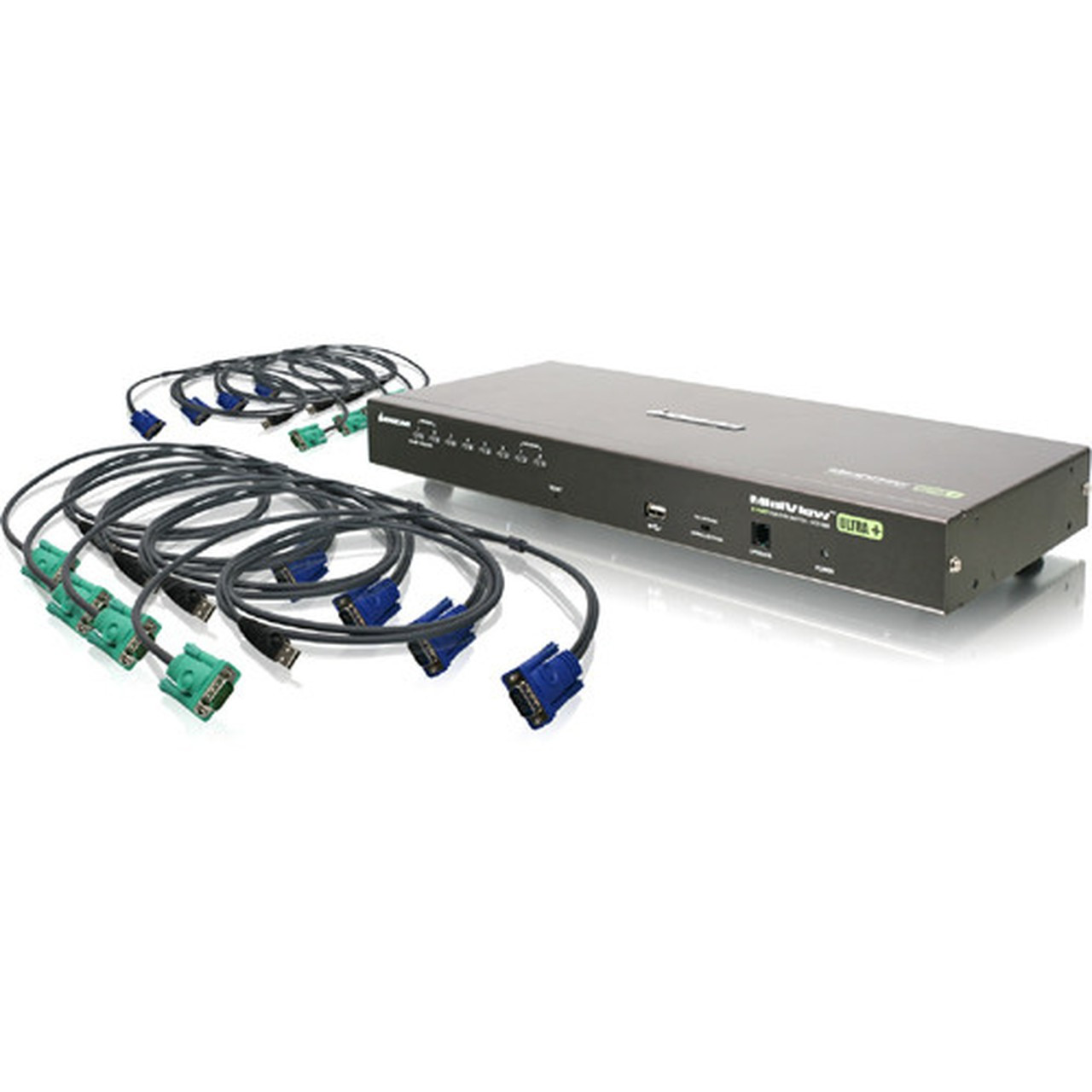

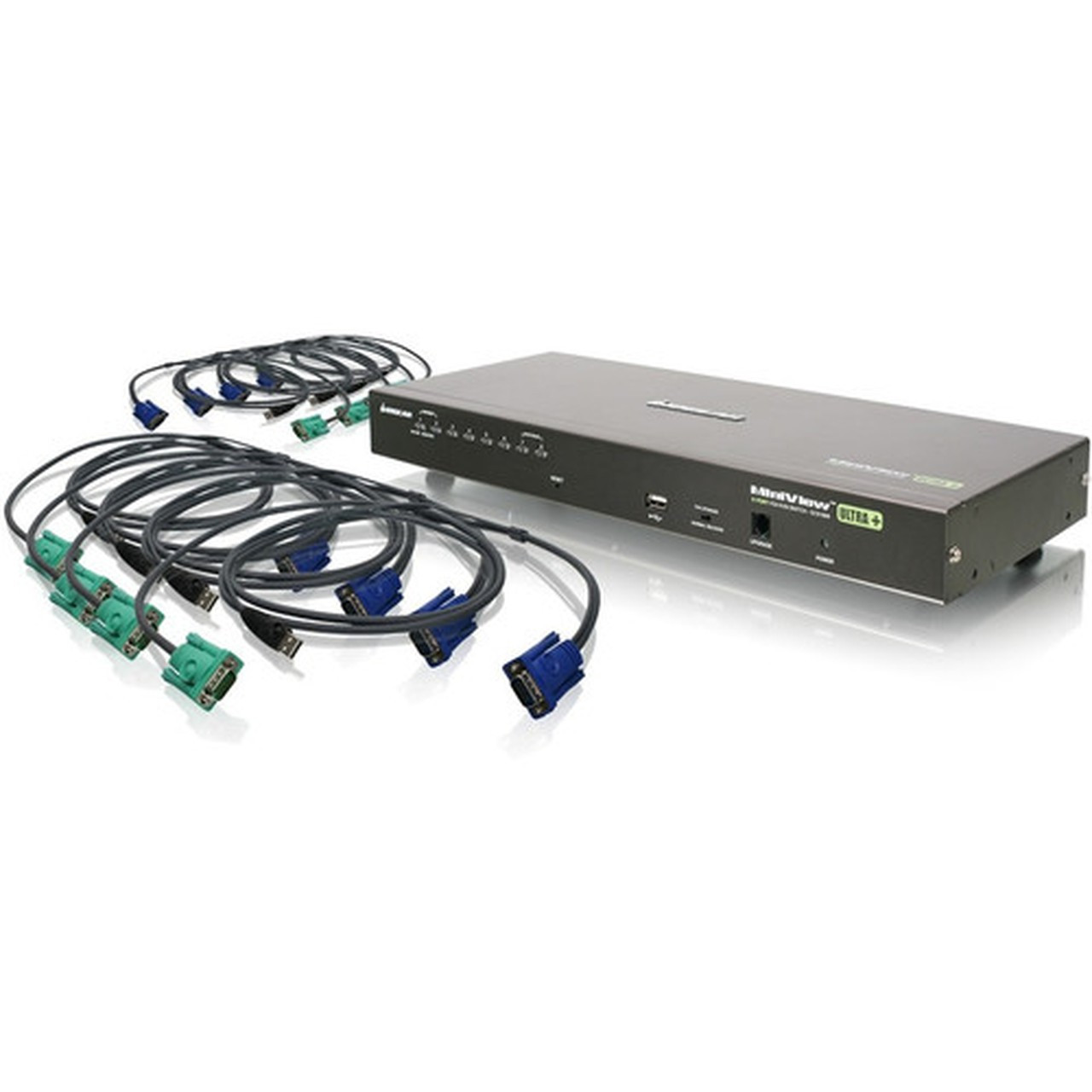

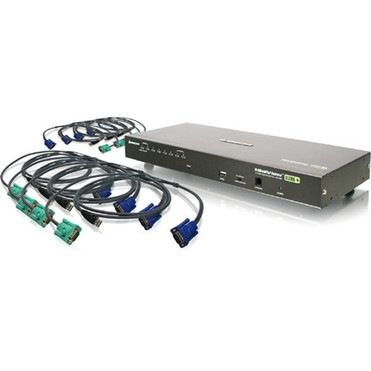

IOGEAR GCS1808KITU Combo KVM Switch - 8-Port 1U Rack-Mountable with USB/PS/2 Support - 2048 x 1536 Resolution
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This KVM switch operates with QXGA graphic mode support, ensuring clear display output across all connected systems. The single front USB port provides convenient access for firmware upgrades and temporary peripheral connections while maintaining full USB 1.1 compliance.
Physical specifications include a 17-inch width for standard 19-inch rack compatibility, with a depth of 6.25 inches and height of 1.75 inches (1U). The 5.58-pound weight makes it suitable for both rack-mounted and temporary desktop deployments when needed.
Relevant factors for this section include Number of Computers Supported, Graphic Mode, Maximum Video Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
Security features include two-level password protection for the on-screen display interface, preventing unauthorized access to system controls. The intuitive front-panel LED indicators and hotkey combinations enable rapid computer selection without interrupting workflow.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Multi-Platform Compatibility, Scalable Management.
Multi-Platform Compatibility
Supports Windows, Mac, Oracle Solaris, and Linux operating systems without requiring additional software or drivers for basic KVM functionality.
- USB and PS/2 computer interfaces
- VGA video support
- Hotkey and OSD operation
Scalable Management
Cascade capability allows connection of up to two additional levels, expanding control to 128 computers from a single console station.
- Two-level cascade support
- Auto-scan monitoring mode
- Broadcast command functionality
Deployment / Use Cases
The GCS1808KITU serves environments where space optimization and centralized control are priorities. The 1U rack-mountable design minimizes rack space consumption while providing access to eight systems.
Educational institutions, corporate IT departments, and managed service providers benefit from the multi-platform support and cascade capabilities that extend control across larger installations. The included standard rack mounting kit ensures secure installation in 19-inch server racks.
Relevant factors for this section include Number of Computers Supported, Graphic Mode, Maximum Video Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Data Center Management
Ideal for server rooms requiring centralized control of multiple rack-mounted systems without dedicating individual peripherals to each unit.
Lab & Testing Environments
Perfect for development labs where engineers need to switch between multiple test systems running different operating platforms.
Physical Profile
Designed specifically for rack deployment, this KVM switch features a black metal chassis with dimensions of 17 inches wide, 6.25 inches deep, and 1.75 inches high (1U). The 5.58-pound weight provides stability in rack environments while remaining manageable for temporary desktop use. Front-panel controls include computer selection buttons, status LEDs, and a USB port for convenient access.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1U, 17" (431.80 mm), 6.25" (158.75 mm), 5.58 lb (2531.05 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17" (431.80 mm)
- Depth
- 6.25" (158.75 mm)
- Height
- 1U
- Weight
- 5.58 lb (2531.05 g)
What's in the Box
The package includes all necessary components for immediate deployment across eight computer systems.
Highlights
- Controls 8 computers from single console
- Supports USB and PS/2 computer interfaces
- 2048x1536 maximum video resolution
- 1U rack-mountable design for server racks
- Cascade support for up to 128 computers
- Multi-platform OS compatibility
- Front USB port for firmware updates
- Two-level password protection for OSD
- Auto-scan and broadcast operation modes
- Includes comprehensive cable set
Specifications
| Specifications | |
|---|---|
| Manufacturer | IOGEAR, Inc |
| Manufacturer Part Number | GCS1808KITU |
| Brand Name | IOGEAR |
| Product Name | GCS1808KITU Combo KVM Switch |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 8 |
| Video | |
| Graphic Mode | QXGA |
| Maximum Video Resolution | 2048 x 1536 |
| Interfaces/Ports | |
| USB | Yes |
| Number of USB Ports | 1 |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 17" (431.80 mm) |
| Depth | 6.25" (158.75 mm) |
| Weight (Approximate) | 5.58 lb (2531.05 g) |
| Miscellaneous | |
| Package Contents | GCS1808KITU Combo KVM Switch 4 x USB KVM Cables (6ft - G2L5202U) 4 x USB KVM Cables (10ft - G2L5203U) 1 x PS/2 KVM Cable (6ft - G2L5202P) 1 x Console Cable 1 x Cascade Cable 1 x Firmware Upgrade Cable 1 x Grounding Wire 1 x Foot Pad Set (4 Pads) 1 x Power Adapter 1 x Standard Rack Mounting Kit 1 x Installation Guide 1 x Warranty Card |
| Environmentally Friendly | Yes |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
How many computers can this KVM switch control?
The IOGEAR GCS1808KITU directly controls eight computers. With cascade capability supporting up to two additional levels, you can expand control to manage 128 computers from a single console station using multiple switches connected together.
What types of computer connections does this switch support?
This combo KVM switch supports both USB and PS/2 computer interfaces, providing flexibility for environments with mixed connection types. It includes appropriate cables for both connection methods in the package contents.
What is the maximum video resolution supported?
The switch supports video resolutions up to 2048 x 1536 pixels using QXGA graphic mode. This ensures clear display output for most business and server applications across all connected systems.
Is this KVM switch rack-mountable?
Yes, the GCS1808KITU is designed for 1U rack mounting in standard 19-inch server racks. The package includes a standard rack mounting kit, and the dimensions (17" W x 6.25" D x 1.75" H) are optimized for rack deployment while allowing potential desktop use.
What security features does this KVM switch include?
Security features include two-level password protection for the on-screen display interface, preventing unauthorized access to system controls. The physical design also supports secure rack mounting in controlled access environments.
What connectivity or interface options are available?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
