LifeSafety Power ProWire FPO150-B100C82D8PE6M/T8-A 150W Power Supply - Enclosure - 120 V AC, 230 V AC Input - 12 V DC, 24 V DC Output (FPO150-B100C82D8PE6M/T8-A)

Sold out

Have questions?

  • Canadian distributor

    Proud Canadian business since 2007

  • IT experts available

    Consulting & Technicial services

  • Pre-configuration services

    From VoiP phone to Clustered servers

  • Delivering across Canada

    Shipping UPS Fedex & Purolator

Free Shipping*

(No reviews) Write a Review
MSRP: $3,069.74
$3,069.74
$1,870.06
Save: $1,199.68 (39.08%)
SKU: FPO150-B100C82D8PE6M/T8-A
Availability: Stock in Canada - Purolator or UPS
Weight: 47.00 LBS
Shipping: Calculated at Checkout

Ask for ETA! 🗨️

    Marketing Information:

    These ProWire Unified Power wall mount models are single and dual voltage access power systems, precision wired for MERCURY controllers. ProWire enables the specification and installation of standardized access power equipment across an enterprise for uniform operation, maintenance and servicing.

    The C8 or M8 control modules each provide (8) eight access control inputs capable of voltage or dry contact activation, and (8) eight outputs programmable for failsafe / failsecure operation at either 12 or 24 VDC and controlled by the power supply fire alarm interface. The D8 module provides (8) eight auxiliary outputs. In dual voltage systems, each output is configurable for 12 or 24VDC operation.

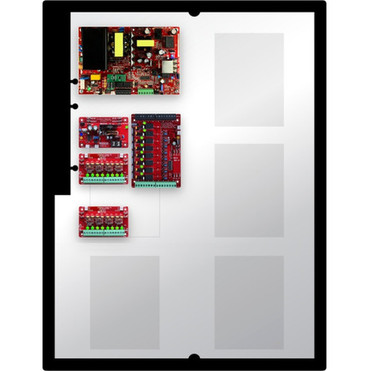

    ProWire Unified Power enclosures are painted steel with removable backplate, lock, keys and and tamper switch and come 100% factory tested - ready for final panel installation and field wire termination.

    Input Voltage: 120 V AC,230 V AC

    Output Voltage: 12 V DC,24 V DC

    Output Voltage Detail: 12 V DC @ 4 A,24 V DC @ 4 A

    Output Current: 4 A

    Output Power: 150 W

    Form Factor: Enclosure

    Height: 30" (762 mm)

    Width: 23" (584.20 mm)

    Depth: 6.50" (165.10 mm)

    Weight (Approximate): 21.32 kg

[custom-highlights][/custom-highlights]

[custom-specifications]

Specifications
ManufacturerLifeSafety Power, Inc
Manufacturer Part NumberFPO150B100C82D8PE6MT8A
Manufacturer Website Addresshttp://www.lifesafetypower.com
Brand NameLifeSafety Power
Product LineProWire
Product ModelFPO150-B100C82D8PE6M/T8-A
Product NameProWire FPO150-B100C82D8PE6M/T8-A 150W Power Supply
Product TypePower Supply
Power Description
Input Voltage120 V AC,230 V AC
Output Voltage12 V DC,24 V DC
Output Voltage Detail12 V DC @ 4 A,24 V DC @ 4 A
Output Current4 A
Output Power150 W
Physical Characteristics
Form FactorEnclosure
Height30" (762 mm)
Width23" (584.20 mm)
Depth6.50" (165.10 mm)
Weight (Approximate)21.32 kg

[/custom-specifications]
